11

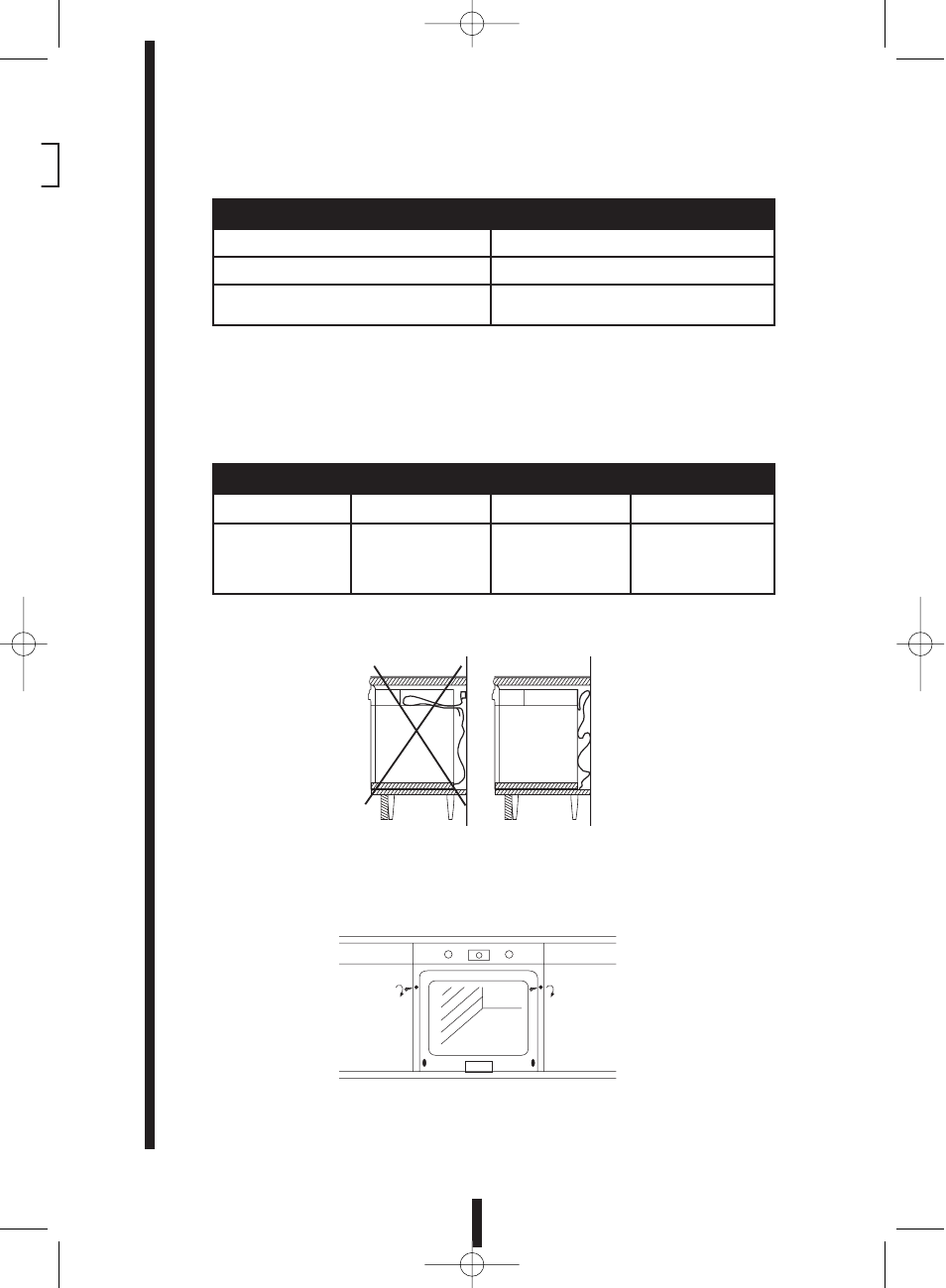

3. After it is plugged in, place the oven into the gap, taking special care not to leave
any surplus cable on top of the oven.
4. A switch must be placed in the most accessible site possible in order to
disconnect the oven, with a minimum of 3 mm between the contacts.
5. Fasten the oven to the unit with the 2 screws provided.
6. If the cooking function selector is not at position “0”, turn it to “0” and set the time
on the oven( section 7.1).
-Figure 2-
2. At the back of the oven you will find cable “A” which is used to make the electrical
connection in this way:
WARNING: before starting to make any connections, check the following:
• that the mains voltage corresponds to the voltage indicated on the feature
identification plate B, figure 2.
• that the electrical mains the oven is to be connected to is powerful enough for
the maximum power the oven absorbs, indicated on the feature identification plate.
Model
5HA-200 RX
Volts Watts Amps
ELECTRICAL SPECIFICATIONS
240 3,6 KW 15
Black
White
Green/Yellow
Black (L1)
Red (L2)
White (Neutral) & Green/Cooper
(Ground)
Oven Wire Color House Wire Color
B
5HA-200 LX
5HA-196 X
en
e
