2
Installation instructions
Thank you for purchasing a quality Fisher & Paykel wall canopy. Each wall canopy is tested and
approved before it leaves the factory, ensuring our high standard of quality control is met.
Contents of packaging
1 x wall canopy
2 x chimney pieces with bracket
1 x installation instructions
3 x aluminium mesh filters
2 x 12 x 2” screw
2 x cup washer
3 x 8 x 1.25” screw
1 x wall anchor
4 x 6 x ¼” self tapping screw
Typical equipment required:
Electric drill
Screwdriver
Duct tape
Jig saw
Ladder
Ducting
Tape measure
Drill bits
Spirit level
Accessories
Accessory Part Number
Chimney ext 3048 mm (10’) ceiling SS RR1740
Chimney ext 3657.6 mm (12’) ceiling SS RR1740
Chimney ext 3048 mm (10’) IR 89092
Chimney ext 3657.6 mm (12’) IR 89093
Recirculation kit RR1744
Replacement charcoal filter R104165
Light bulb R104467
Replacement aluminium filter R104660

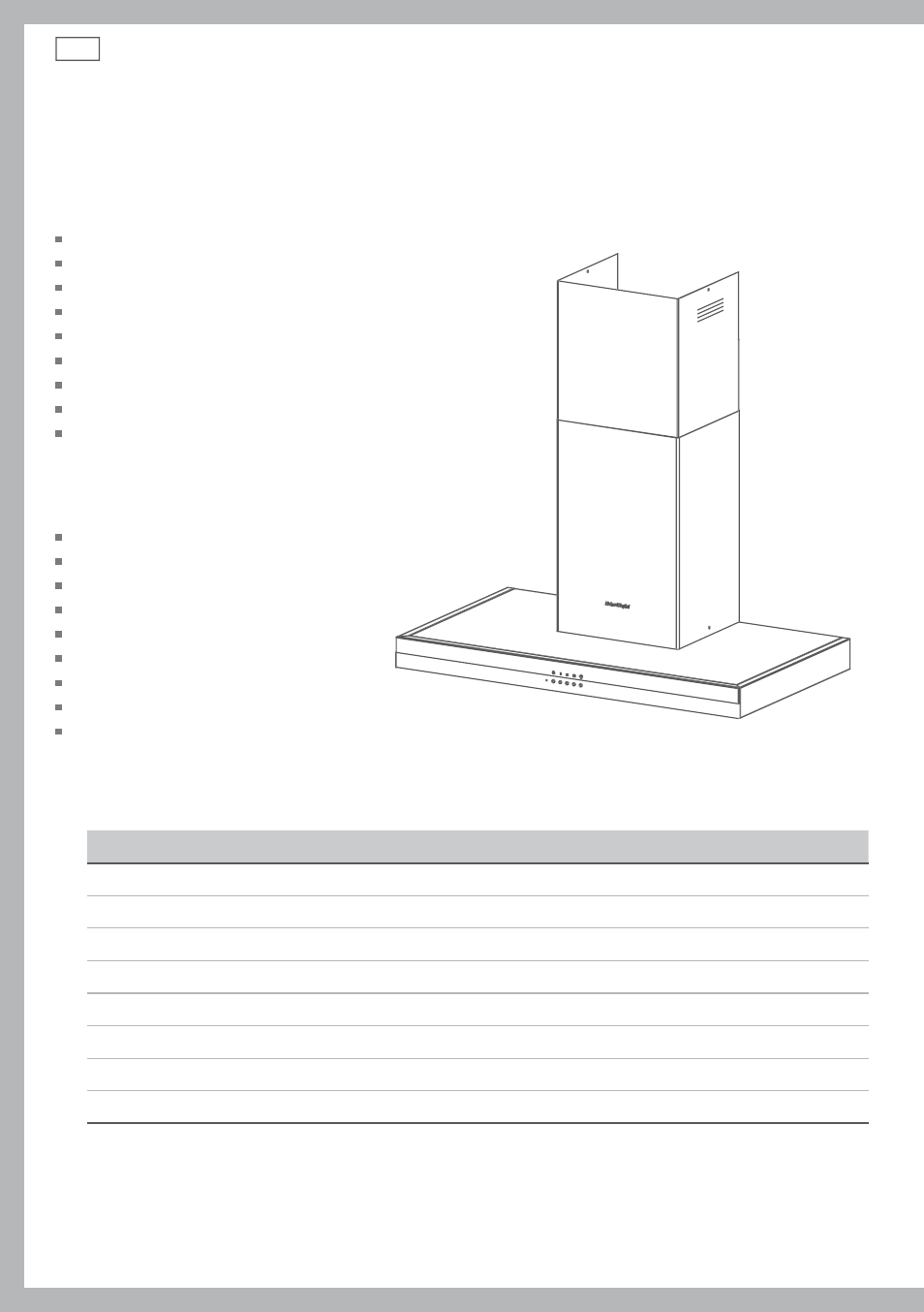

Fig.1 Designer wall canopy
