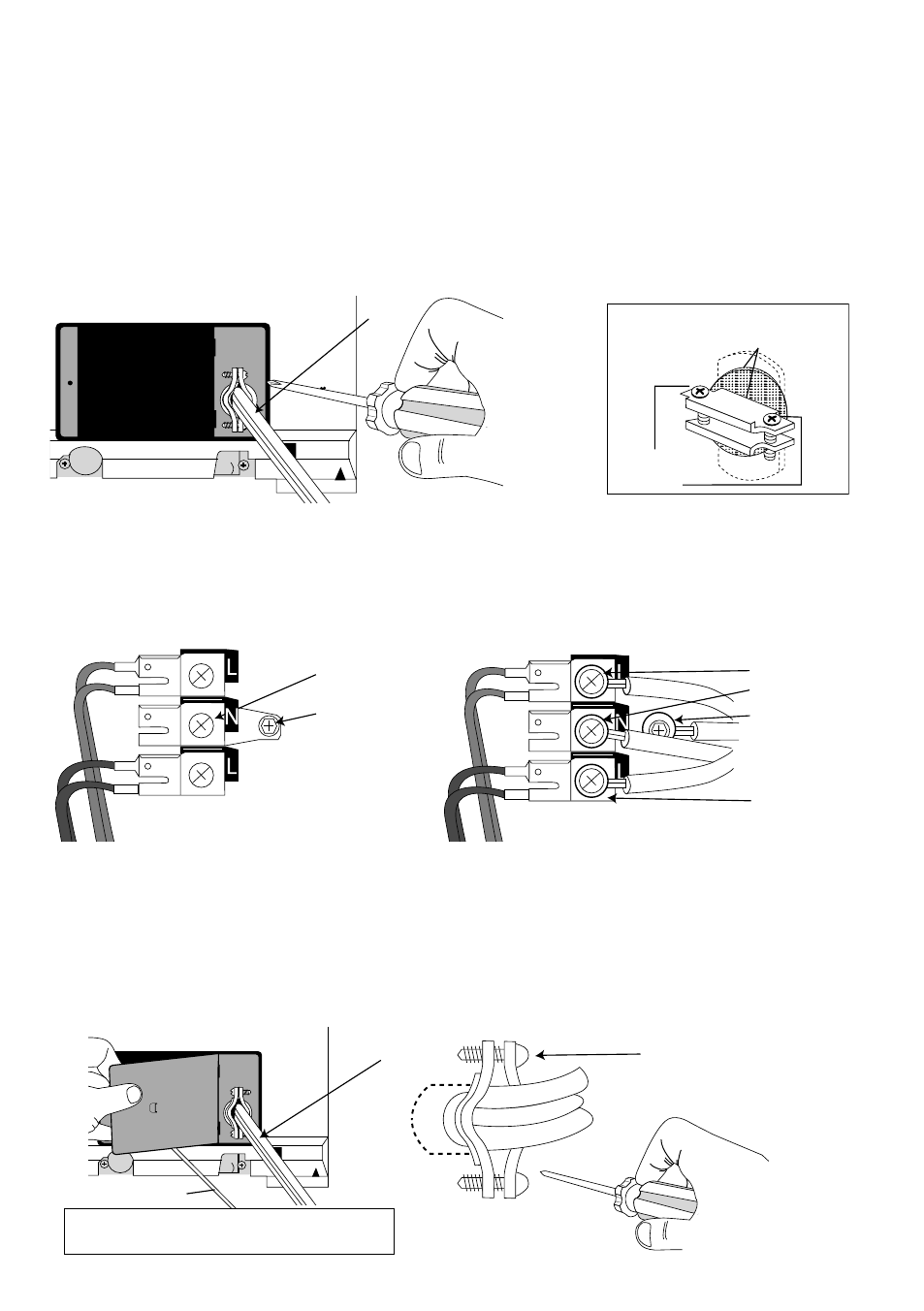

3-wire connections
plus separate grounding connector
For use where local codes do not permit grounding through the Neutral wire.
Use approved 3-wire Power Supply Cord or a 3-wire Cable for Direct Wiring as described on page 18.
A separate 10AWG copper grounding wire is required.
1. Remove the terminal block cover plate.
2. Insert the power supply cable with a UL listed strain relief through the hole provided in the
cabinet near the terminal block. Do not tighten strain relief screw until wiring connections
are complete.
Note : a strain relief must be used.
strain relief
screws
strain relief
clamp sections
2
3. Remove center terminal block screw.
4. Remove appliance ground link by removing the ground connector screw (Green screw).
5. Connect a separate copper ground wire (green with yellow stripe) using the ground
connector screw (Green screw). Make sure a ring terminal is used when connecting the
ground wire and that the wire is firmly secured to an adequate grounding path.
3
4
5
7
6
7
6. Connect the neutral wire (center) of the power supply cord to the center terminal screw of
the terminal block. Tighten screw.
7. Connect the other wires to the upper and lower terminal block screws marked with the
letter L. Tighten screws.
8. Refit terminal block cover by inserting the two tabs first on the rear panel of the dryer and
secure cover with securing screw.
9. Tighten strain relief screws.
9
grounding wire
It is recommended that a qualified electrician
determine that the ground path is adequate
8
