SECURILOCK INTERFACE KITS - 1L2Z-19G365-AB & 1S4Z-19G365-AB (Con’t)
Vehicle wiring harness
X
A

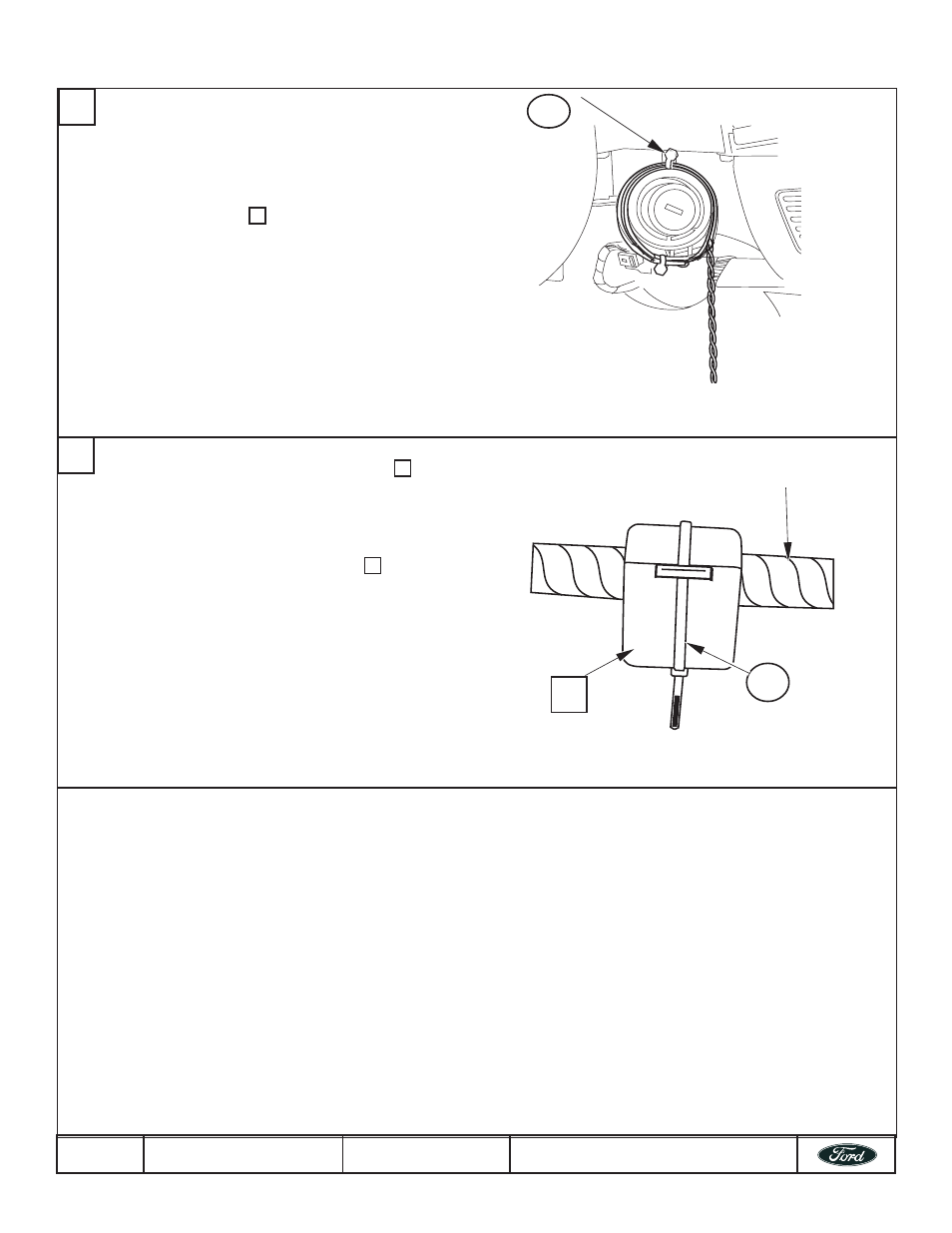

A. Using the unwrapped red lead wire make an
additional wrap around the Securilock PATS antenna
loop as close as possible to the stripe (red or Black)
on the Securilock PATS antenna loop.
B. Use a tie strap ( Y ) to secure the additional wrap
around the PATS antenna.
A. Mount the Securilock Interface Module ( A ) to an
underdash wiring harness using one of the supplied
long tie wraps (X) as shown. DO NOT mount the
Securilock Interface Module: 1) To or within 3” of a
metal surface, including any underdash brackets, or
2) In the knee bolster area.
B. Route the harness and connector ( C ) to module
mounting location.
Y
7
8
