Log Set Installation

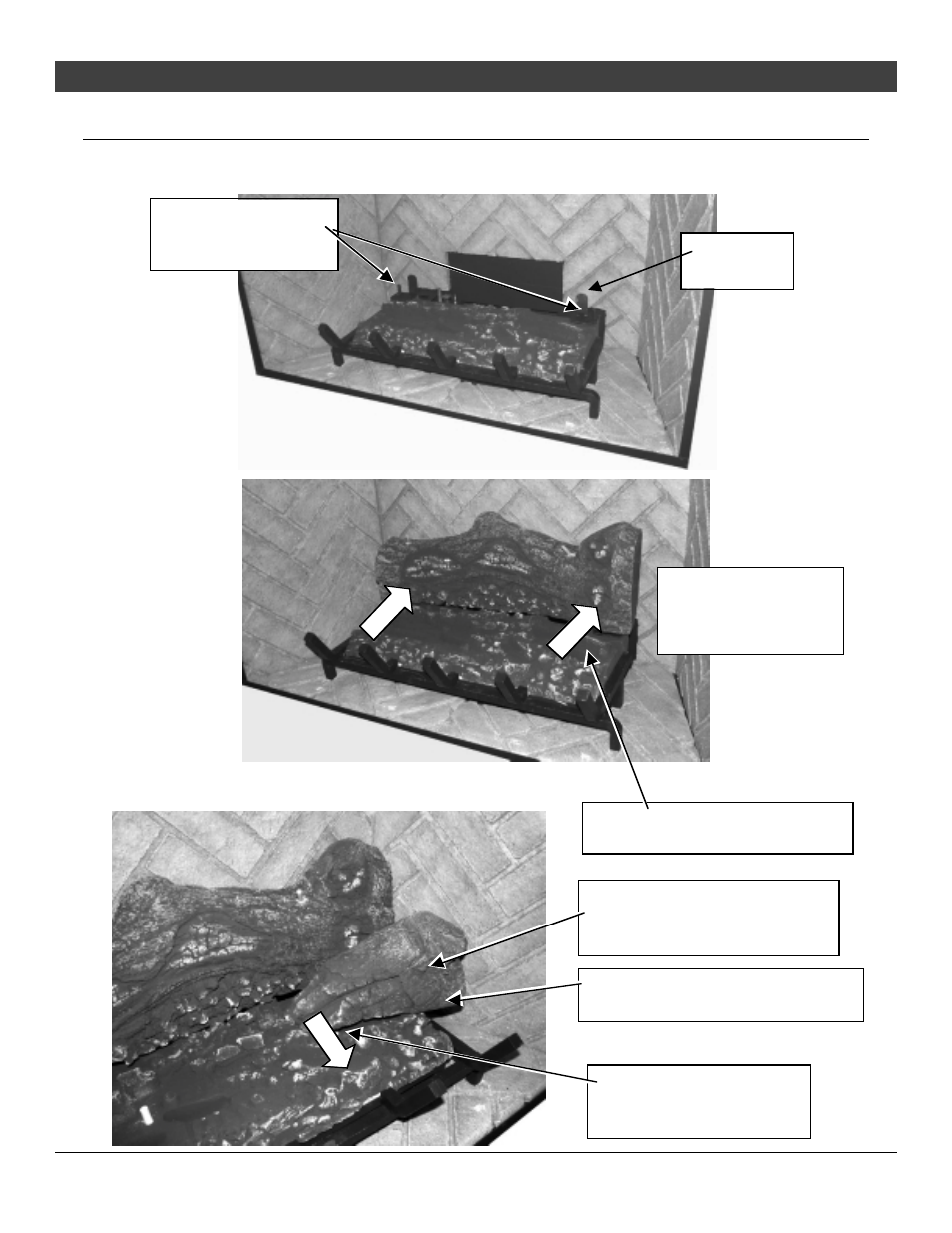

Rear Log Installation
Right Log Installation
These pins insert into
the holes on the
bottom of the rear log.
Place the rear log in
place and slide it all
the way back against
the log stops.
Log Stop
(both sides)
Place the right log on the flat
portion of the burner and push it
back so it rests against the ridge.
Note how the notch on the right log
hangs over the side of the burner.
Rotate the inward tip of the
log forward so it is directly
next to the burner holes.
The burner has a flat portion here
with a ridge directly behind it.
