2

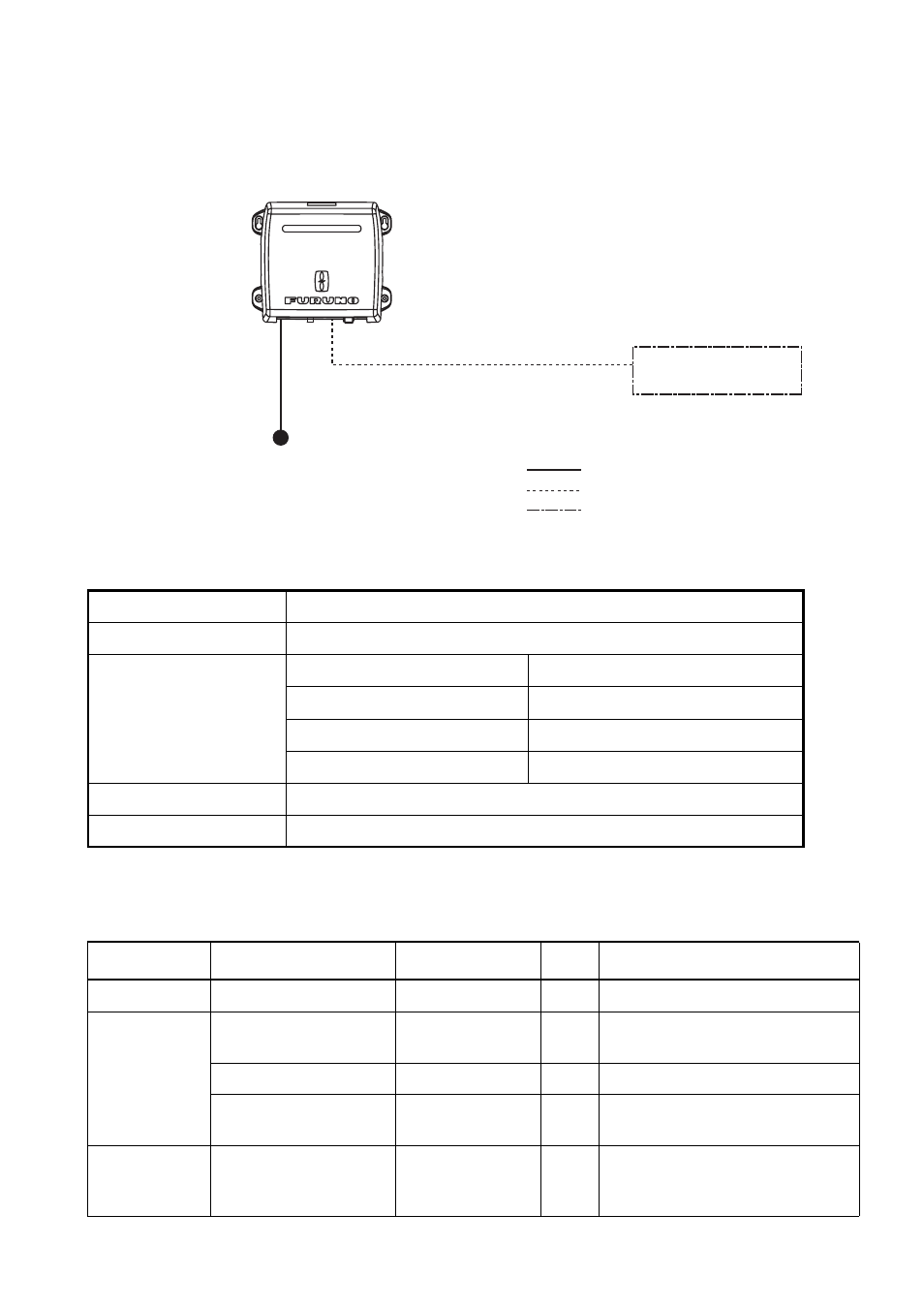

System Configurations
The HUB-101 Ethernet HUB uses an Ethernet interface (100BASE-TX/10BASE-T) to provide the
network communication among the NavNet 3D equipments, and PC. Eight ports are provided on
this HUB. Three HUB-101 can be installed in a LAN series.
Specifications ETHERNET HUB HUB-101
Equipment List
Transmission speed Half-duplex/Full-duplex: 10 Mbps/100 Mbps
I/O Ports 8 ports
Environmental conditions Ambient temperature -15 to 55 ° C
Relative humidity 93% (at 40 ° C)
EMC IEC 60945 Ed.4
Dustproofing, waterproofing IP20 (IEC 60529)
Power supply 12-24 VDC/0.5-0.25 A
Body color N2.5
Name Type Code No. Qty Remarks
Ethernet HUB HUB-101 - 1
Installation
materials MOD-Z072-050+ 000-167-176-10 1 LAN cable (for connection with
NavNet 3D equipment)
VH2P-MVVS0.75X2C 000-167--944-10 1 Power cable assy
CP19-01101 001-027-250 1 set Self-tapping screws (Type: 3x20,
Code No.: 000-167-940-10)
Spare parts SP19-00901 001-027-240 1 set 1.5A Fuses (2 pcs, Type: FGMB
125V 1.5A PBF, Code No.: 000-
157-464-10)
Ethernet HUB
HUB-101
12-24 VDC
NavNet 3D Equipment,
PC
: Standard supply
: Optional supply
: Local supply
VH2P-MVVS0.75X2C
cable
x8
MOD-Z072, 2/5/10 m (for NavNet 3D)
MOD-WPAS0001 (for PC)
