Hood
Tabs
Slot
Slot
• Position the hood over the front of the vehicle body.
• Insert the tabs on the hood into the slots in the
vehicle body.
Lights and
Siren Cord
Microphone
Cord
• Align the arrow on the lights and siren cord connector
with the arrow on the microphone cord connector.
• Push to connect the lights and siren cord to the
microphone cord.
21
22
Lights and
Siren Cord
Cord Retainer
Microphone
Cord
Battery
Compartment
23
• Remove the backing from the cord retainer. Discard the
backing.
• Apply the cord retainer to the back of the dash.
• Fit the microphone cord into the clip on the cord retainer.
• Close the hood.
Assembly
17

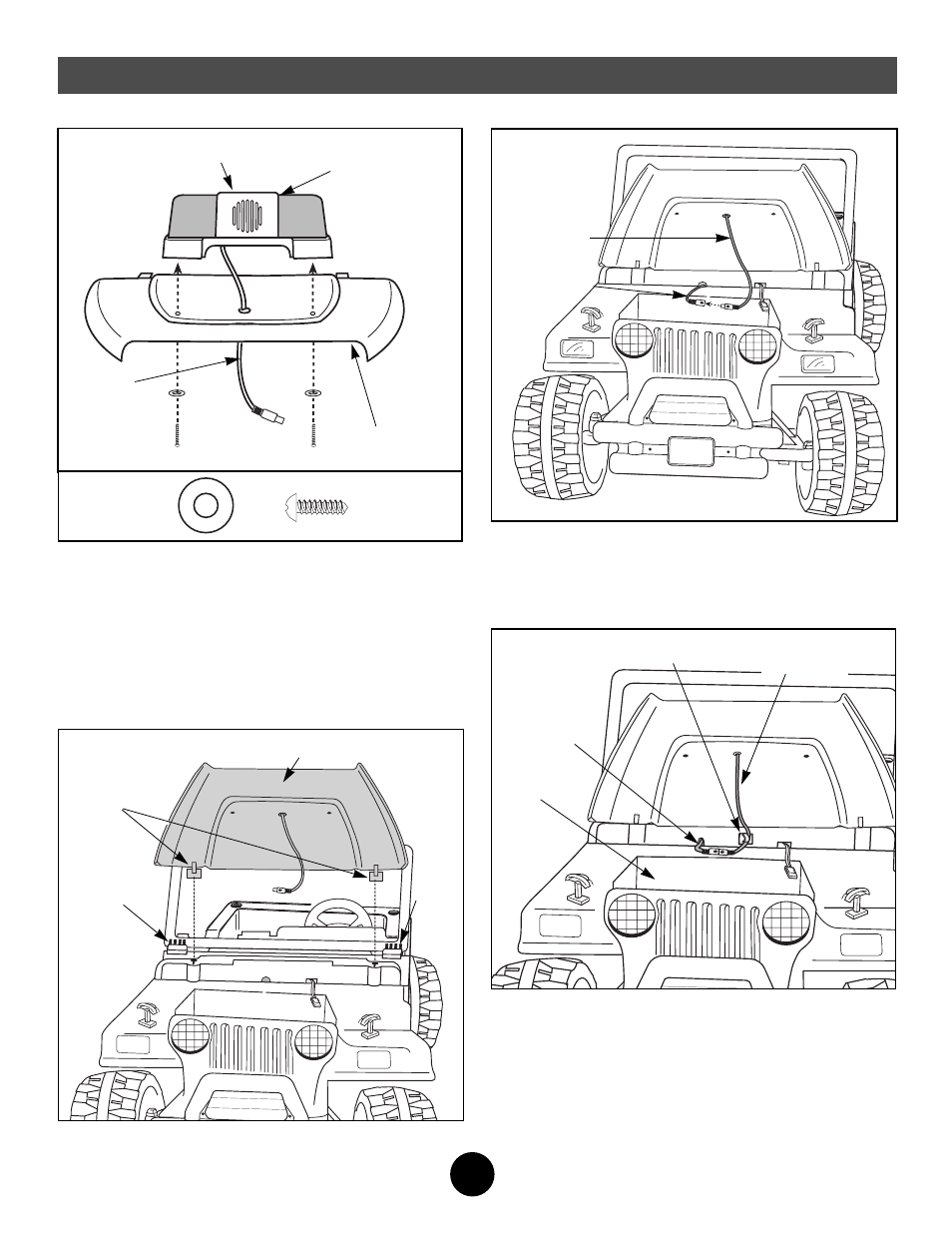

Lights and Siren
Battery
Compartment
Front of Hood
Lights and
Siren Cord
20
• Insert the lights and siren cord through the hole in the
center of the hood.
• Fit the lights and siren to the top of the hood. Make sure
the battery compartment faces the front of the hood.
• Insert two #6 x 7 /
16
" screws with washers through the
holes in the underside of the hood and into the lights and
siren. (The #6 x
7 /
16
" screws and #6 washers can be found
in the small parts bag enclosed with the lights and siren
and microphone.)
