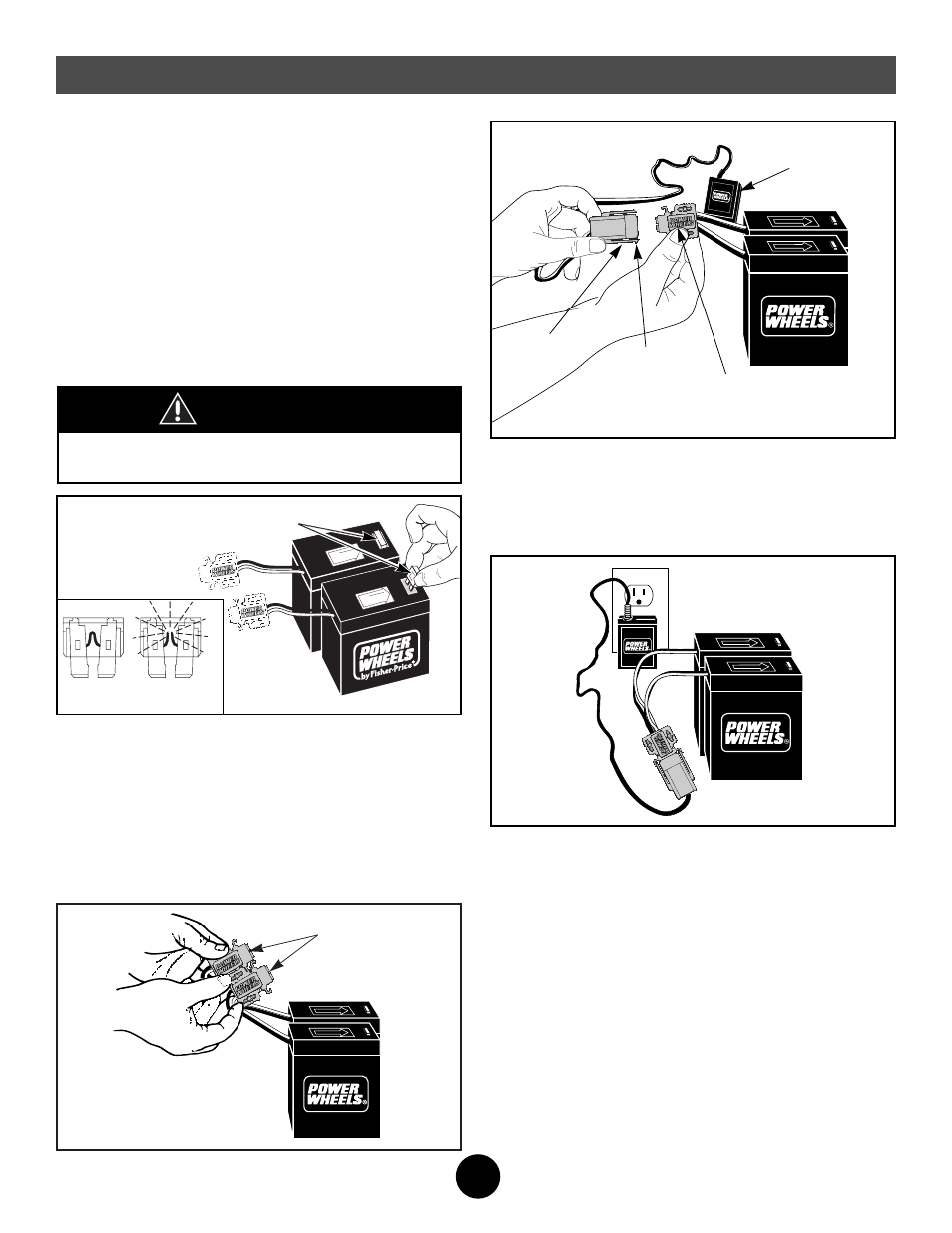

• Plug the charger into a standard 120 volt wall outlet.
Note: If power flow to the wall outlet is controlled by a
switch, make sure the switch is “ON”.
• Before first-time use, charge the batteries for at least 18
hours. Never charge the batteries longer than 30 hours.
Note: The batteries must be upright while charging.
• Recharge the batteries for at least 14 hours after each
use of your vehicle. Do not charge the batteries longer
than 30 hours.
• Once the batteries are charged, disconnect the charger
connector from the battery connector. Unplug the
charger from the wall outlet. The batteries are now
ready to be installed in your vehicle. Please see the
Battery Installation section on page 23 for detailed
instructions on installing your batteries. If your batteries
are already installed in your vehicle, simply re-connect the
battery connector and motor harness connector and
lower and fasten the hood.
• If you are charging the batteries for the first time, insert a
30 amp fuse into each battery before charging.
Note: The top of the fuse will not be flush with the top of
the battery when properly installed.
• If you are recharging your batteries, make sure the 30
amp fuses already installed in the batteries are in good
condition. Remove the fuses from the batteries and look
at them to make sure they are not blown. Replace a
blown fuse with a new Power Wheels
® 30 amp fuse.
IMPOR TANT
A 25 AMP FUSE MUST BE INST ALLED IN TOP
OF BA TTER Y BEFORE TOY WILL RECHARGE
OR OPERA TE
IMPOR TANT
A 25 AMP FUSE MUST BE INST ALLED IN TOP
OF BA TTER Y BEFORE TOY WILL RECHARGE
OR OPERA TE
®
®
30 Amp Fuse 1
®
®
• Stack one battery connector on top of the other and
snap them together.
Battery
Connectors
Battery Charging
2
®
• Squeeze the Lock-In TM connector tabs on the charger
connector and plug it into the battery connector.
IMPORTANT NOTE! If you are recharging your batteries,
you will first need to disconnect the battery connector
from the motor harness connector under the hood.
Battery Connector
Charger
Connector
Lock-In TM
Connector
Tabs
Charger
3
4
• Your new batteries must be charged for at least
18 hours before you use them in your vehicle for the
first time.
• We recommend that you start charging your batteries
before beginning assembly of your new vehicle.
• The charger is not a toy.
• Use only a Power Wheels ® Type H 12 volt charger (120
VAC 60 Hz 28W with an output of 12 VDC 1200mA) to
charge your Power Wheels
® 6 volt batteries.
• The batteries must be upright while charging.
• Do not short circuit the batteries.
• You do not need to remove the batteries from your
vehicle to recharge them.
CAUTION
Use the charger indoors only.
GOOD FUSE BLOWN FUSE
11
