GP-30
15 0.6"
78 3.0" 209 8.2"
175 6.9"
(140 5.5")
125 4.9"
100 3.9"

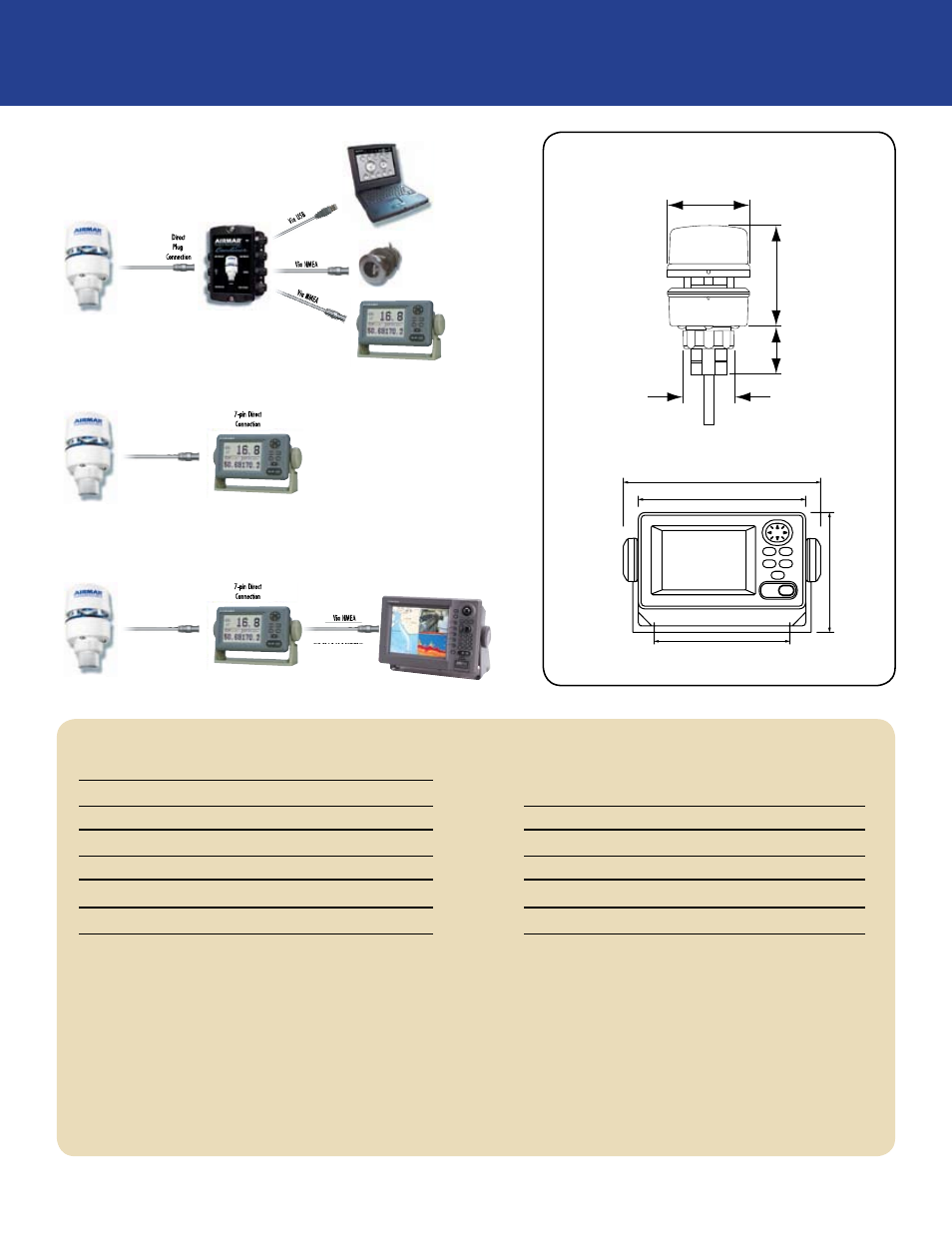

PC and Furuno RD-30 connection
Furuno RD-30 connection
NMEA device or Multiplexer connection
PC and Furuno RD-30 connection
Furuno RD-30 connection
NMEA device or Multiplexer connection
PC and Furuno RD-30 connection
Furuno RD-30 connection
NMEA device or Multiplexer connection
PC and Furuno RD-30 connection
Furuno RD-30 connection
NMEA device or Multiplexer connection
PC and Furuno RD-30 connection
Furuno RD-30 connection
NMEA device or Multiplexer connection
Furuno RD30, Smart Sensor and PC
Furuno RD30 direct
Furuno NavNet 1/vx2 through RD30
Additional features available with PC, including:
Dew point temperature, Wind chill temperature
and Pitch & Roll
15 m
15 m
dimensions
technical specifications
specifications
Wind Speed Range 0 to 80 knots Barometric Pressure Range 850-1150 mb
Wind Speed Resolution 0.1 knot (25" - 34" Hg)
Wind Direction Resolution 1° Barometric Pressure Accuracy +/- 20 mbar
Wind Direction Sensitivity +/- 1.5° Barometric Pressure Resolution +/- 1.1 mbar
Temperature Range -25°C to 55°C Supply Voltage 10-16 VDC
Temperature Accuracy +/- 1°C Supply Current <150 mA
Compass Sensing +/- 1° typically Weight 285 grams
Note: PB150 reading accuracy may be degraded at temp below 0°C
data output protocol - nmea0183 sentence structure
$WIMWV ........Wind Speed & Angle $WIMWD .........Wind Direction & Speed $WIMWT ........ True Wind Direction & Speed
$WIMDA .........Meteorological Composite $WIXDR ............Wind Chill Temperature $WIMWMR .... Relative Wind Direction & Speed
$GPGGA ..........GPS Fix Data $GPGLL .............Geographic Position L/L $GPZDA .......... Time & Date
$GPRMC ..........Recommended Min. GNSS $GPVTG ............COG and SOG $HCHDG ......... Heading, Deviation, Variation
$GPDTM .........Datum Reference $GPGSV ............Satellites In View $GPGSA .......... GNSS DOP + Active Satellite
all specifications subject to change without notice
Furuno USA, Inc. • 4400 NW Pacific Rim Blvd. • Camas, WA 98607 • Ph: 360.834.9300 • Fax: 360.834.9400 • www.Furuno.com
Optional Combiner
Interface
