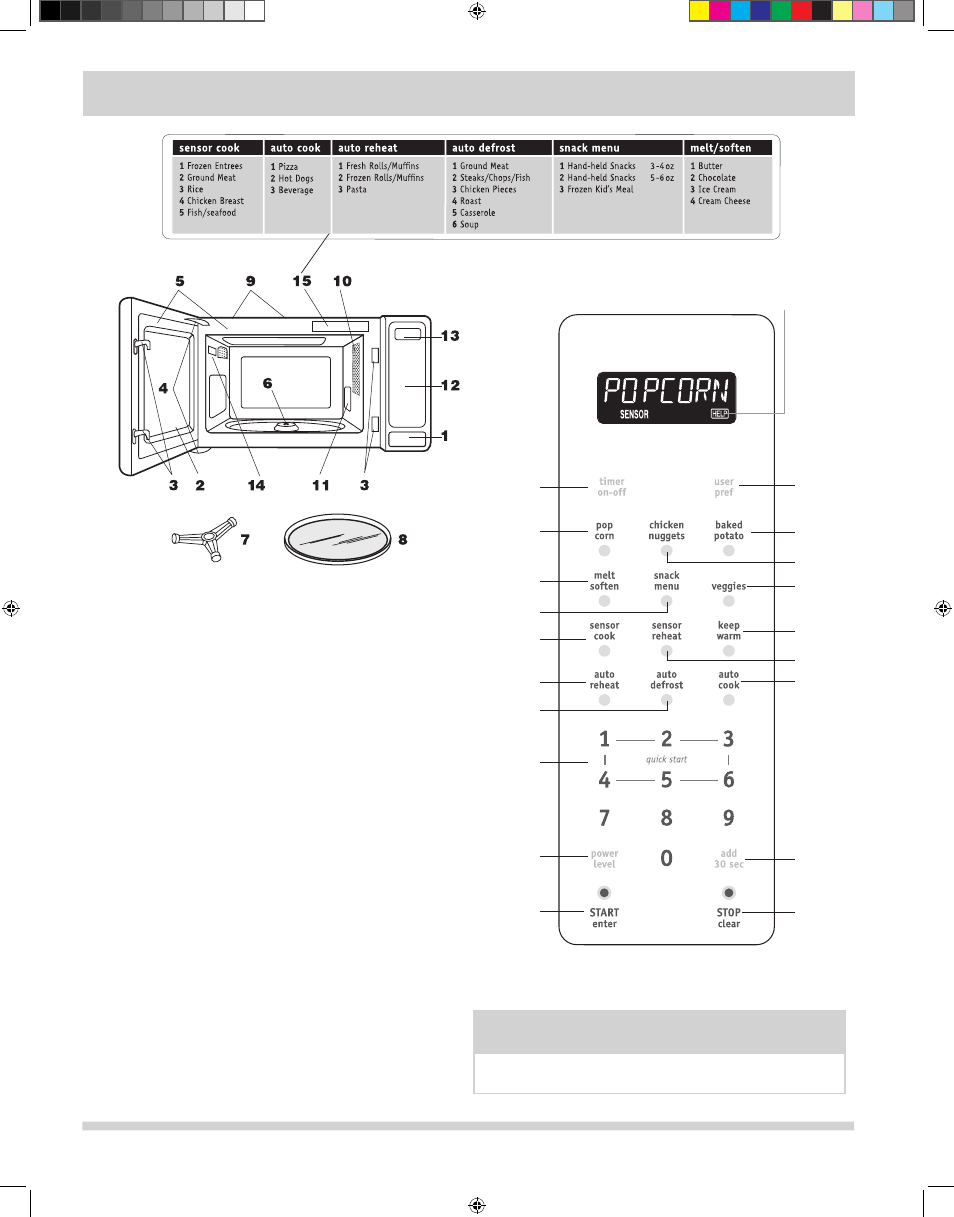

PART NAMES & CONTROL PANEL
88
The 7-digit Interactive display spells out operating steps and
shows cooking hints. When hELP is lighted in the display, press
the user pref pad to read a specific hint which may assist you.
Number next to the control panel illustration indicates page on
which there is a feature description and usage information.
One touch door open button 1
Push to open door
Microwave Oven door with see-through window. 2
Safety door latches 3
The Microwave Oven will not operate
unless the door is securely closed.
door hinges
4
door seals and sealing surfaces 5
Turntable motor shaft 6
Removable turntable support 7
Carefully place the turntable support in the
center of the Microwave Oven floor.
Removable turntable
8
Place the turntable on the turntable support
securely. The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
ventilation openings (rear)
9
Microwave Oven light 10
It will light when Microwave Oven
is operating or door is open.
Waveguide cover: dO NOT REMOvE.
11
Auto-Touch control panel 12
Time display: 99 minutes, 99 seconds 13
Serial plate 14
Menu Label 15
17
11
11
15
11
14
14
16
11
18
10
12
13
15
9
18
18
9 9
 NOTE
When a pad is pressed, an audible signal will be heard which
confirms the pad has been pressed.
