10
ENGLISH
1 2 3 4
8
10
9
13 7 6 5
12
11
13
Shipping
Screws
(Type A)
(Type A)
5
11
11
5
5
9

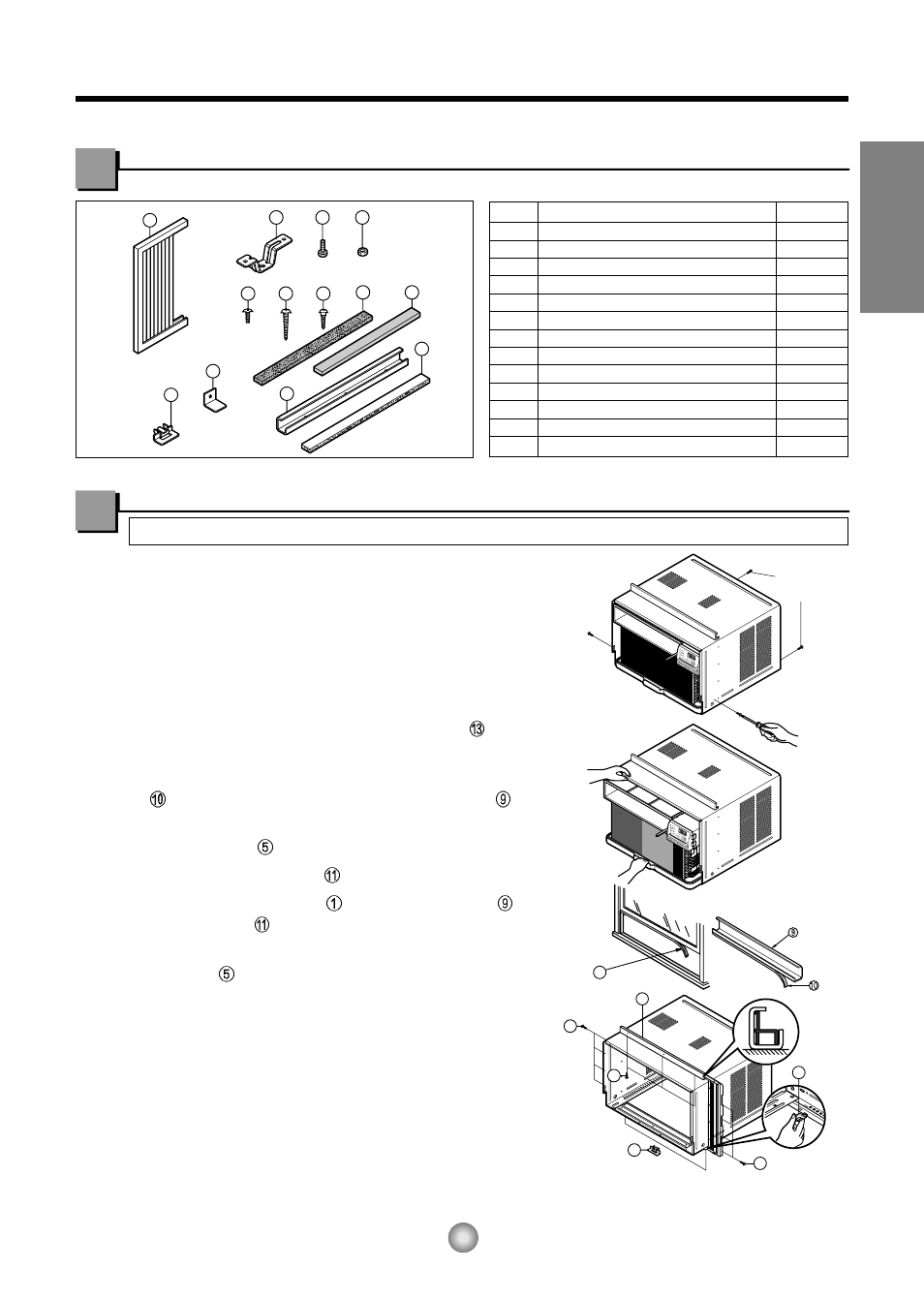

Installation Kit Contents
NO. NAME OF PARTS Q'TY
1 FRAME CURTAIN 2
2 SILL SUPPORT 2
3 BOLT 2
4 NUT 2
5 SCREW (TYPE A) 16
6 SCREW (TYPE B) 3
7 SCREW (TYPE C) 5
8 FOAM-STRIP 1
9 UPPER GUIDE 1
10 FOAM-PE 1
11 FRAME GUIDE 2
12 WINDOW LOCKING BRACKET 1
13 FOAM-PE 1
Suggested Tool Requirements
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL
PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet at both
sides and at the back.(4 total)
2. Slide the unit from the cabinet by gripping the base pan
handle and pulling forward while bracing the cabinet.
3. Cut the window sash seal to the proper length.
Peel off the backing and attach the Foam-PE to the
underside of the window sash.
4. Remove the backing from the top upper guide Foam-PE
and attach it to the bottom of the Upper Guide .
5. Attach the upper guide onto the top of the cabinet with 3
Type A screws .
6. Insert the Frame Guides into the bottom of the cabinet.
7. Insert the Frame Curtain into the Upper Guide and
Frame Guides .
8. Fasten the curtains to the unit with 4-Type
A screws .
