9. SERVICE INFORMATION
9.1 PARTS LIST
Description Part Number
Transformer,
208V/240V/12V
807-0979
Transformer 230V (CE) 807-3185
Air Heater, 208V 807-2945
Air Heater 230V (CE) 807-3630
Air Heater, 240V 807-3011
Shield, HLZ Heater 900-8486
Air RTD Probe 807-3036
Bracket, RTD/Thermocouple 900-8366SP
Delivery Air Back W/A 823-2741
Air Thermocouple 807-3043
HLZ 22 Plate, Heater with
RTD and Thermocouple,
208V/240V (22”x15.5”)
806-9238
HLZ 18 Plate, Heater with
RTD and Thermocouple,
208/240V (22”x12”)
806-9239
Line Filter (CE) 807-2818
Plug Assembly, Computer 806-9636
Air Relay, SS Service 826-2038
Plate Relay, SS Service 826-1958
Relay, Latching 807-3021
Blower, 230V (CE) 807-3691
Blower, 208V/240V 807-3637
Hi-Limit 807-3631
Fuse Block
807-2820
Fuse, 20A 807-2819
Cordset, Twist Lock, HLZ 807-3020
Cordset, CE 807-1696
Cordset, Japanese 807-3419
Cordset, China 807-4409
RTV#108 Silicone Rubber 811-0511
Gasket, HLZ Plate/Cowl 816-0418
Filter Screen 810-1724
Acrylic Tape 811-1042
Computer Assembly, HLZ 106-0534
Cowl Assembly 823-2745
Cowl Tinnerman Clips 809-0448
Front Delivery Air W/A 823-2742
Lug, Grounding 14 GA 807-2972
Pad, HLZ Leg 826-1561

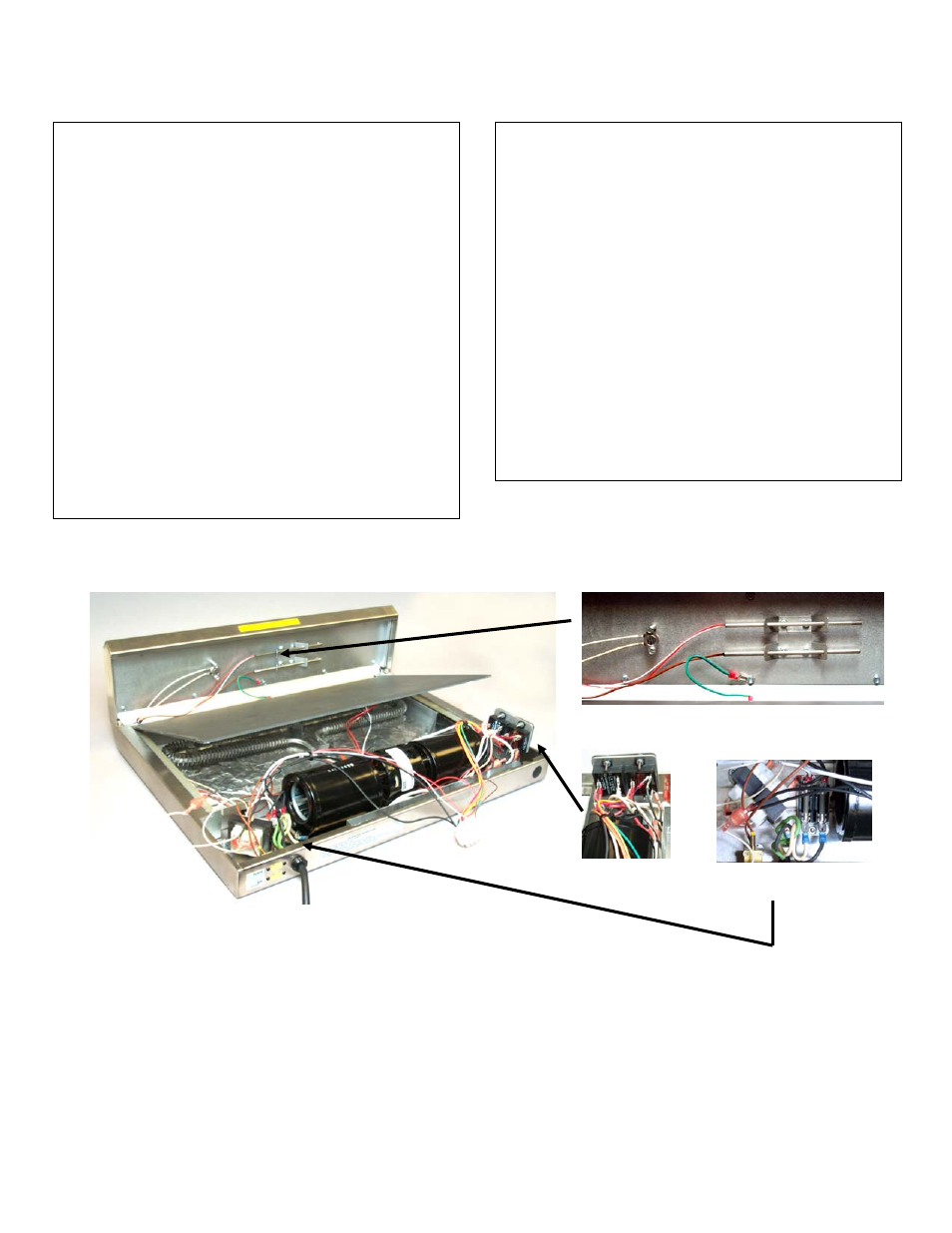

9.2 Interior view of an HLZ (Cowl Assembly removed)
HLZ with heater plate elevated.
Hi-limit (left above) and air thermocouple
(bottom right above) and air RTD.
Transformer and fuses.
Solid state
relays
