GPSBT560 User Manual
. 7
1.6 Overview

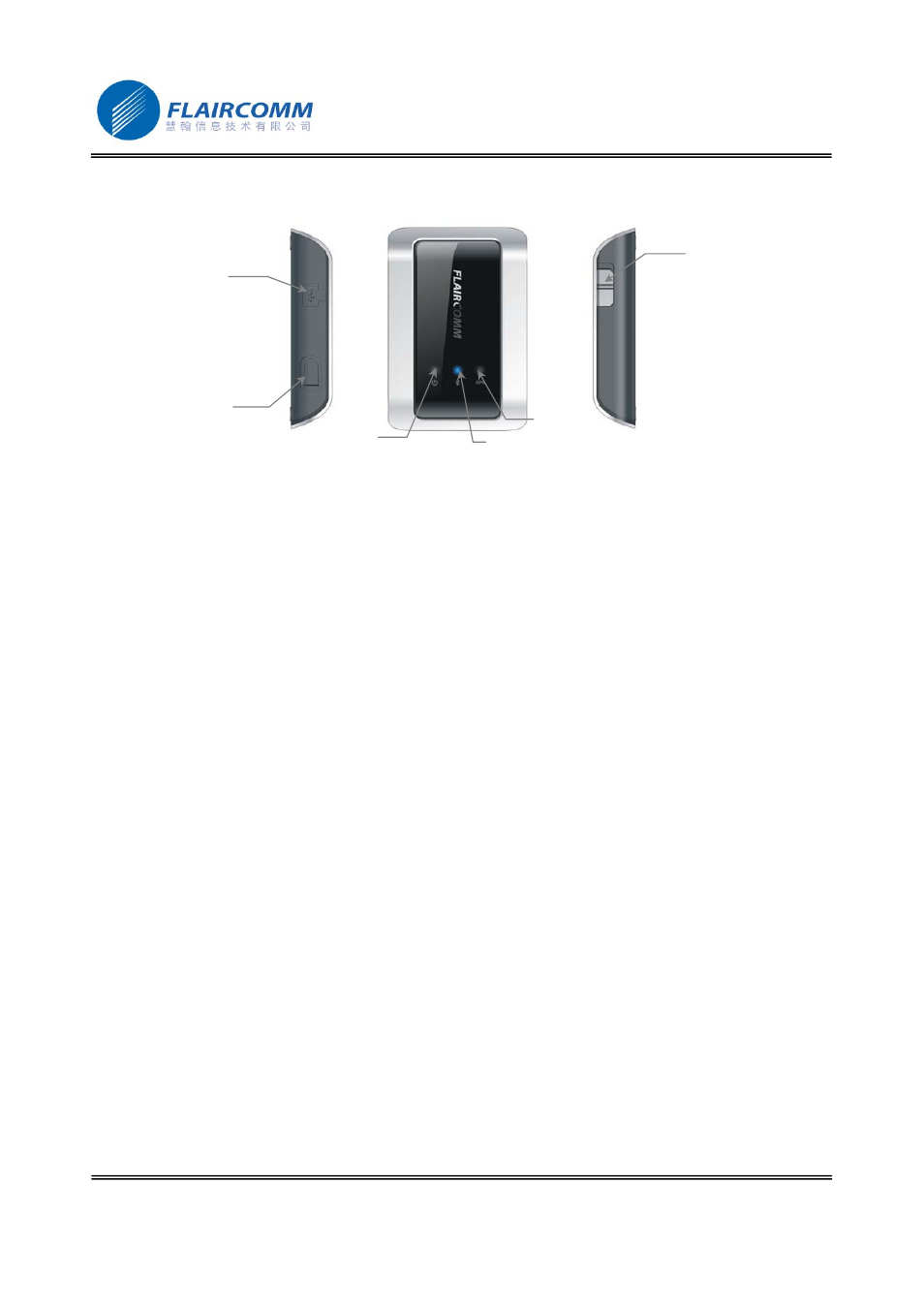

Figure 1 Overview
z Power Key - on/off switch
z Red LED - A battery status indicator
„ In charging mode: it is always on
„ In normal mode: it blinks once per minute
„ In low battery mode: it gives two quick blinks every minute
„ In all other modes: it is off
z Blue LED - A Bluetooth status indicator
„ In pairing mode: it blinks once per second
„ In connected mode: it blinks once every 4 seconds
„ In all other modes: it is off
z Yellow LED - A GPS status indicator
„ In GPS active mode: it blinks once every 4 seconds
„ In all other modes: it is off
z External Antenna Connector (MMCX/3V)
z USB Connector - Connect to the charger
Power Key
USB Connector
External Antenna
Connector
Red LED
Yellow LED
Blue LED
