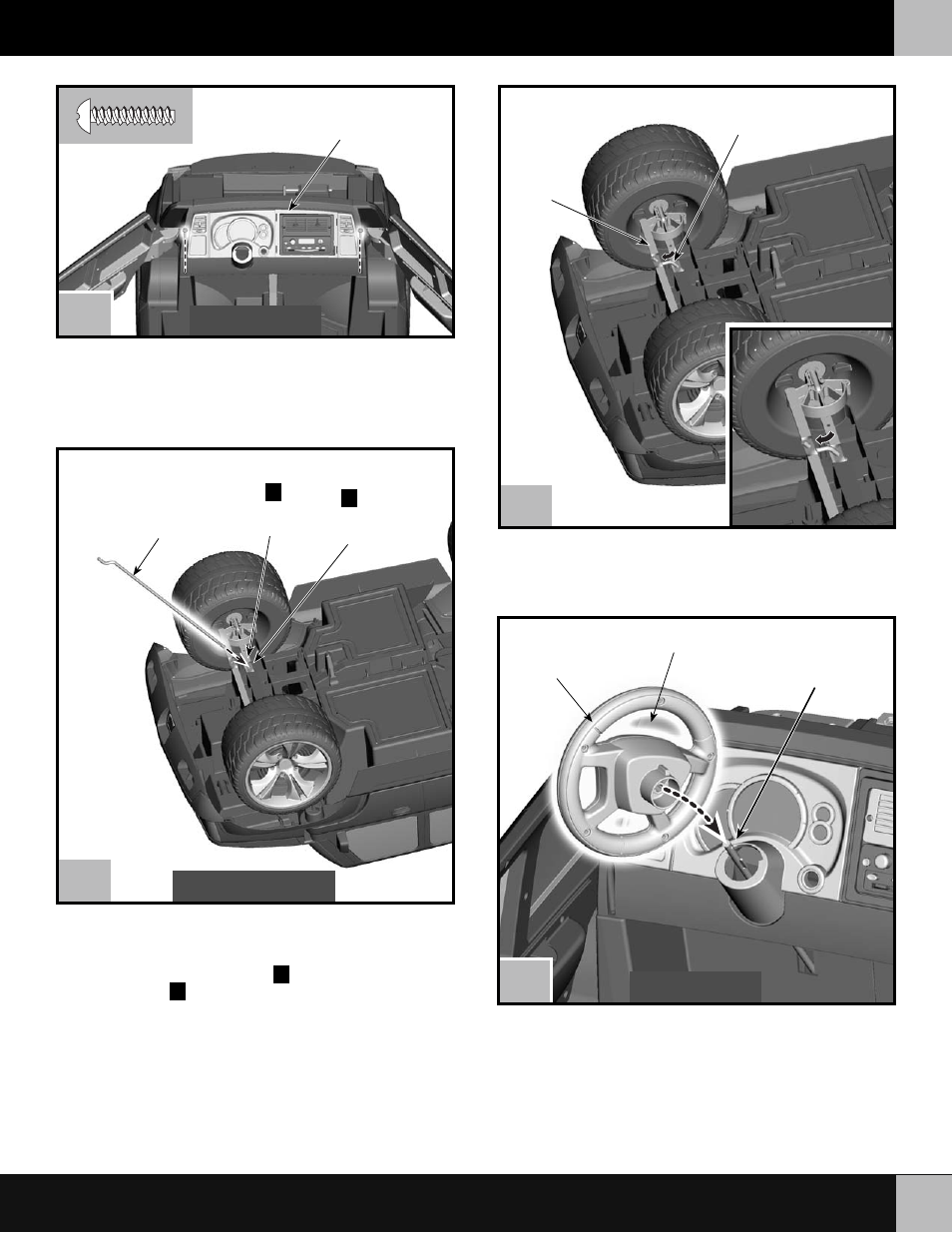

ASSEMBLY F
23
• Insert the curved end of the steering column through the hole
in the steering rod.
Steering
Rod
Steering
Column
21
• Insert two #8 x 3 / 4
" screws into the sides of the
windshield/dash. Tighten the screws.
• Close the doors on the vehicle.
Dash
DASH VIEW
22
• Wipe the steering column with a paper towel to remove any
excess lubricant.
• First, insert the straight end of the steering column down
through the hole in the metal bar A ; then through the hole in
the vehicle floor B ; and finally, out through the hole in
the dash.
Steering
Column
Metal
Bar Hole
BOTTOM VIEW
A
B
Vehicle
Hole
IMPORTANT! Turn the vehicle on its side or over to complete
assembly steps 23-28.
24
• Position the steering wheel so that the large opening is UP.
• Fit the steering wheel onto the steering column.
Steering Wheel
Steering Column
Large Opening
DASH VIEW
