9
ASSEMBLY

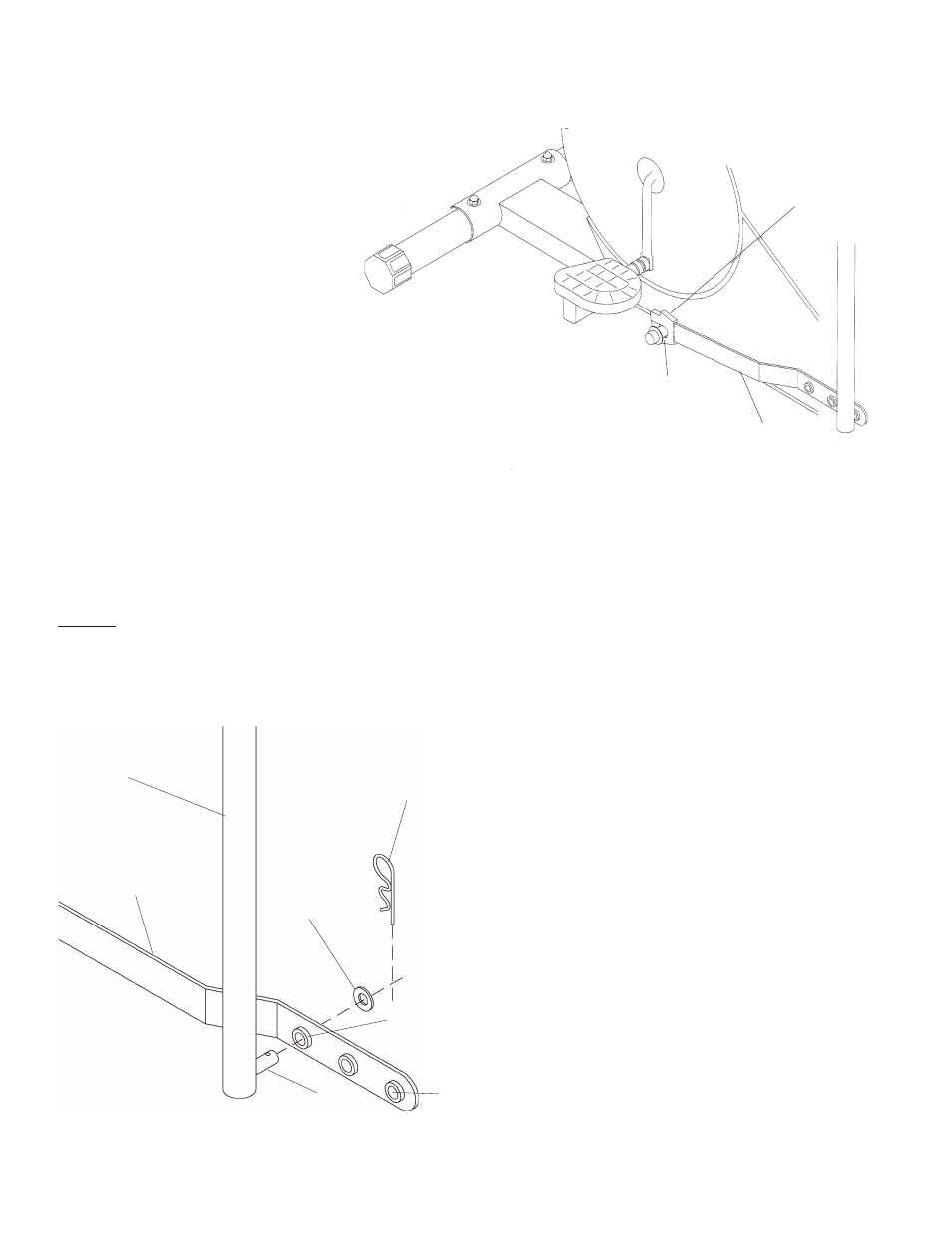

FIGURE 9
Step 20. Lower SLOT in
CONNECTING ARMS (23
RIGHT & 24 LEFT) onto
LOCKOUT ROD and slide
RETAINER (28) back over
LOCKOUT ROD to lock
CONNECTING ARM in
SINGLE ACTION MODE.
FIGURE 9
28
RETAINER
23
RIGHT
CONNECTING
ARM
Step 20 is for SINGLE ACTION MODE.
LOCKOUT
ROD
NOTE: There are three ADJUSTMENT HOLES in each CONNECTING ARM (23 & 24). The CONNECTING
ARM comes attached to the END HOLE. The END HOLE puts the GRIP end of the HANDLEBARS
(21 & 22) closer to you, which is better for shorter people. The INSIDE HOLE puts the GRIP end
farther away from you which is better for taller people. To adjust, follow Steps 21 through 23.
FIGURE 10
Step 21. Remove HAIRPIN COTTER (29) and
M8 WASHER (4) from PIVOT PIN in
HANDLEBAR (21 RIGHT & 22 LEFT).
Step 22. Slide desired ADJUSTMENT HOLE, of
CONNECTING ARM (23 & 24) onto
PIVOT PIN of HANDLEBAR (21 & 22).
Step 23. Place M8 WASHER (4) over PIVOT
PIN and insert HAIRPIN COTTER (29)
through hole in PIVOT PIN to lock
in place.
FIGURE 10
29
HAIRPIN
COTTER
4
M8
WASHER
END
HOLE
INSIDE
HOLE
PIVOT
PIN
23
RIGHT
CONNECTING
ARM
21 RIGHT
HANDLEBAR
