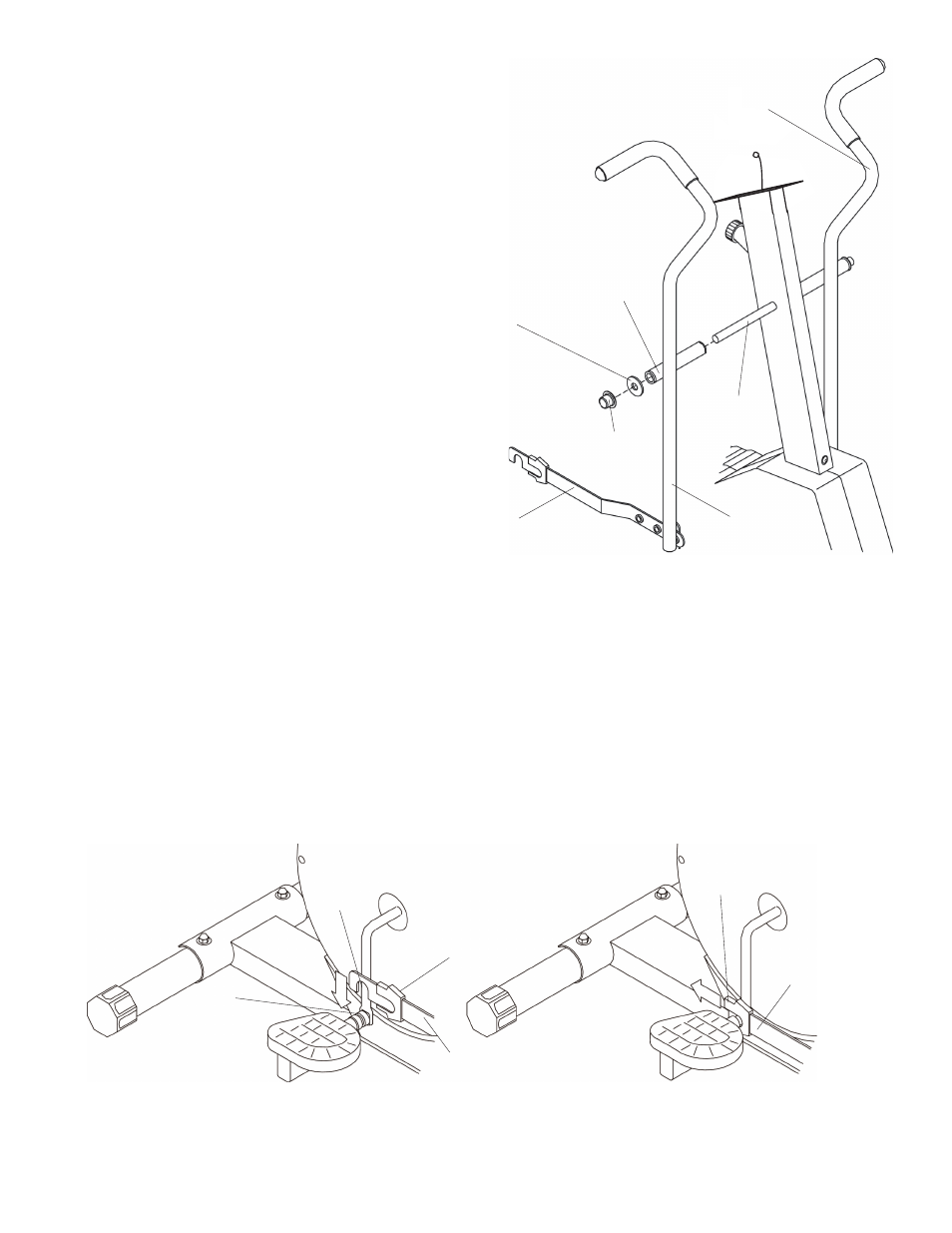

FIGURE 6
Step 16.
With PIVOT TUBES on REAR side of
HANDLEBARS (21 RIGHT and 22 LEFT)
and CONNECTING ARMS (23 RIGHT and
24 LEFT) to inside, slide HANDLEBARS
onto AXLE.
(Remove tape at AXLE TUBE area).
Step 17.
Slide LARGE WASHER (25) onto end of
AXLE and carefully tap PUSH NUT (26)
onto end of AXLE with hammer.
ASSEMBLY
FIGURE 6
AXLE
FIGURE 7
Step 18.
Lower SLOT in CONNECTING ARMS (23 & 24) down over PEDAL BUSHING (8).
FIGURE 8
Step 19.
Slide RETAINER (28) until CONNECTING ARMS (23 & 24) are locked in DUAL ACTION MODE.
FIGURE 8
FIGURE 7
Steps 18 and 19 are for DUAL ACTION MODE.
26
PUSH NUT
25
LARGE
WASHER
23
RIGHT
CONNECTING
ARM
21
RIGHT
HANDLEBAR
22
LEFT
HANDLEBAR
PIVOT
TUBE
ON REAR
SIDE
23
RIGHT
CONNECTING
ARM
28
RETAINER
8
PEDAL
BUSHING
SLOT
28
RETAINER
23
RIGHT
CONNECTING
ARM
