FUJITSU LQFP-52P User Manual
Page 9
6

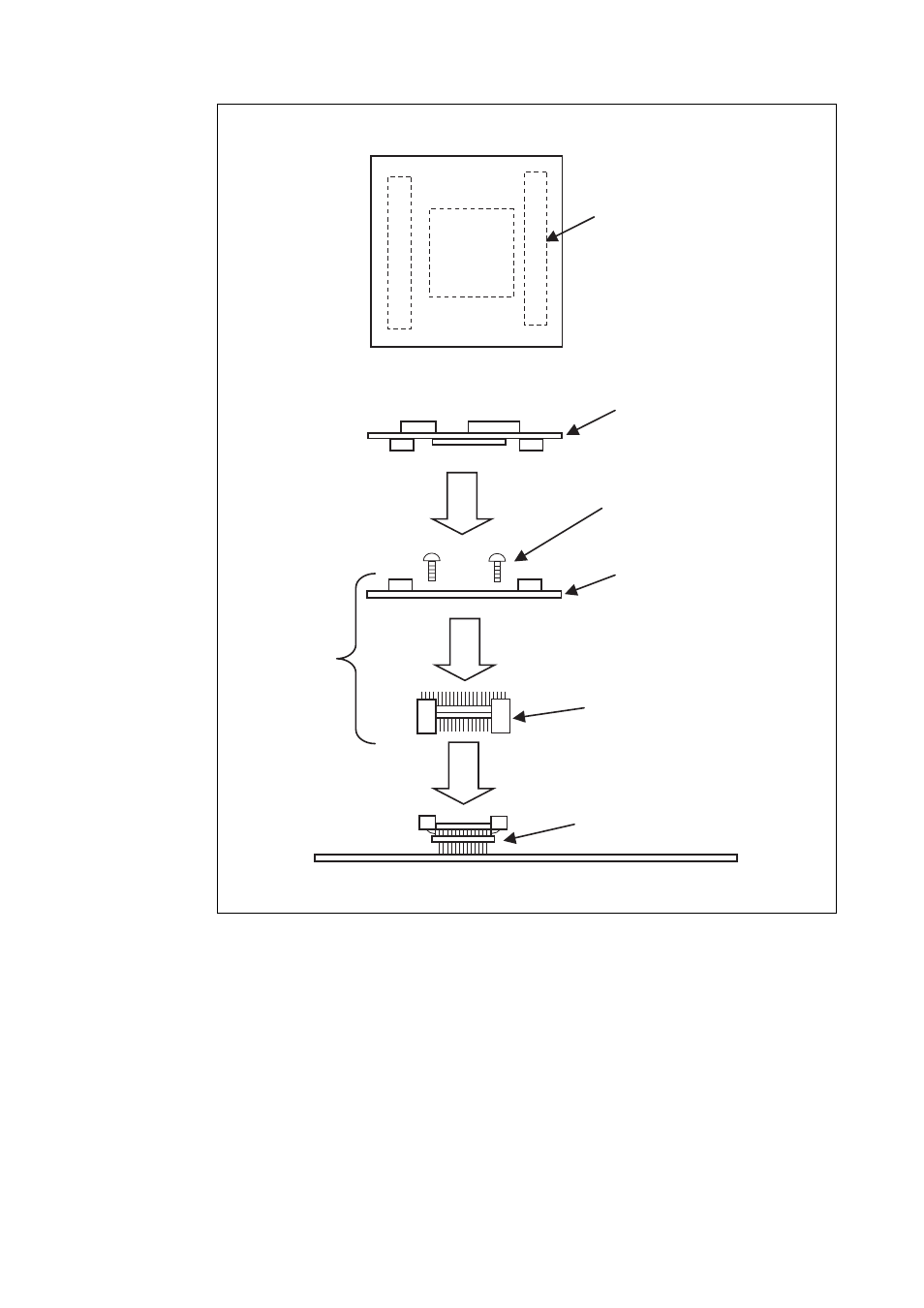

Figure 5 Connecting MCU Board/Header Board to User System
■ Disconnection
1. Remove the MCU board from the header board. Detach the four corners slowly in sequence, not
excessively forcing the junction with the NQPACK.
2. Remove all of the four screws from the header board. Pull out the header board vertically from
the NQPACK. Remove the header board slowly not excessively forcing the junction with the
NQPACK.
YQPACK
Header board
User system
NQPACK
MCU board
MCU board
Connected
at shipment
Screws for securing
header board
Evaluation
MCU
