Field Controls UV-18X User Manual
Page 4
page 4
WARNING:
Never expose eyes or skin to UVC light from any source. Looking directly at the UVC light may cause permanent eye damage or blindness.
Never operate the UV-Aire
®
Air Purifying System out of the plenum. Avoid touching the glass portion of the lamp with your hands.
Figure 3
Figure 11
Figure 10
Figure 9
Figure 8
Figure 7
Figure 6
Figure 5
Figure 4

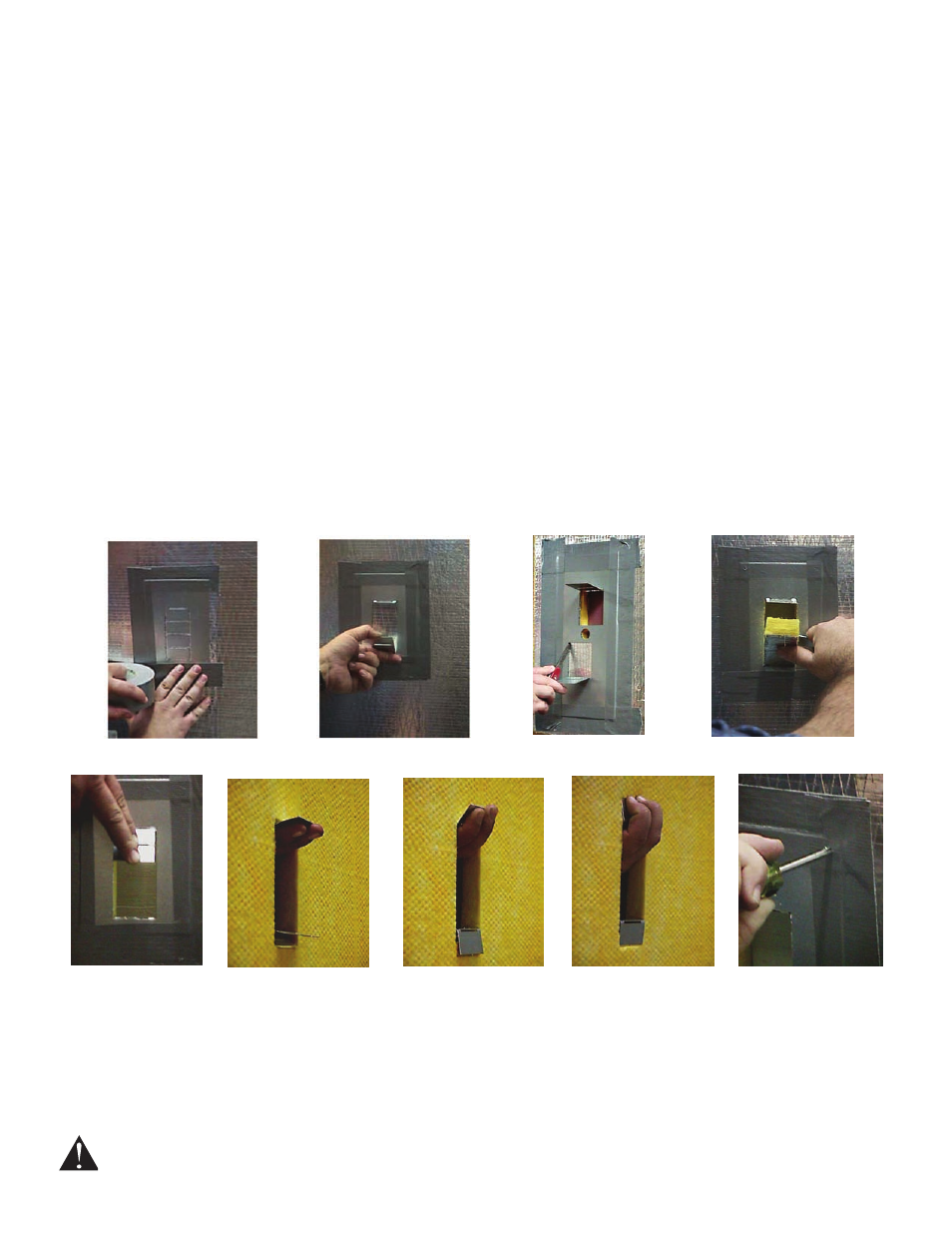

IF YOU HAVE DUCT BOARD:
Mount the supplied metal mounting plate onto the duct with duct tape in either vertical or horizontal
a.
position. (See Figure 3)
Bend tabs outward. (See Figure 4)
b.
Using a knife or blade, cut out a rectangular opening in the duct using the mounting plate as a template.
c.
(See Figure 5)
Remove the cut piece of duct. (See Figure 7)
d.
Bend both tabs down and through duct at first bend point. (See Figures 8 & 9)
e.
Bend both tabs at the second bend point up or down to pinch the duct material and grip the duct material.
f.
(See Figures 10 & 11)
Using a screwdriver or pointed object, locate mounting holes by poking holes through the duct tape.
g.
(See Figure 12)
