Under-Cabinet Hood
PL36WC41E C
36" Wall Mount
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
PL36WC41E 01/11
© 2011 Electrolux Home Products, Inc.
Printed in the U.S.A.
Specifications
subject to change.
Under-Cabinet Hood Specifications
•
Product Shipping Weight (Approx.) – 32 Lbs.
•
Wall-Mount Installation – can be ducted vertically or horizontally.
•
Ventilation system is preset to recirculate air inside with no ducting
system required. Exhausting air outside is optional, using either
vertical or horizontal ducting system. (Refer to Ducted Option
Specifications for outside ventilation.)
•
Sones Rating – 4.5
•
Voltage Rating – 120V / 60 Hz / 15 Amps
•
Connected Load (kW Rating) @ 120 Volts = TBD
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @ 120 Volts = 3.0 Amps
•
Always consult local and national electric codes. Check local building
codes for installation requirements, as they may vary per locale.
•
Connect vent hood with copper wire only.
•
Minimum installation height allowed from top of hood to cooking
surface is 24" - 30".
•
To improve performance, optional Duct-Free Kit recommended for
use with recirculating system.
•
Installation on recessed-bottom cabinets requires attachment of two
wood filler strips at each side of recessed area under cabinet.
Ducted Option Specifications
•
For outside ventilation.
•
Exhaust Duct Required – 3-1/4" x 10" (3-1/4" x 10" to 6"-round transition
duct can be used if needed)
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible.
•
Use metallic flex ducting only to connect rigid duct directly to
transitions (if allowed by code).
•
Thermal breaks such as short section of nonmetallic duct, should be
used in areas of extreme cold.
•
Cold weather installations should have additional backdraft damper
installed.
•
Refer to installation instructions on web for detailed duct preparation and
converting exhaust vent blower system for exterior exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•
Duct-Free Kit (Single-Pack) – (PN # 5304455850).
•
Duct-Free Kit (8-Pack) – (PN # DFKIT368PK).
•
Damper Kit (6-Pack) – (PN # DAMPKIT6PK).
•
7"- Round Damper Kit (Single-Pack) – (PN # 5304455851).
Under-Cabinet Vent Hood
PL36WC41EC
Frigidaire Baseline
20"
7
1
/
4
"
Top or rear power
supply locations
7" Round or
3
1
/
4
" x 10" rectangular
duct location (top)
3
1
/
4
" x 10" Rectangular
duct location (rear)
36
"
36"
13"
max.
cabinet
depth

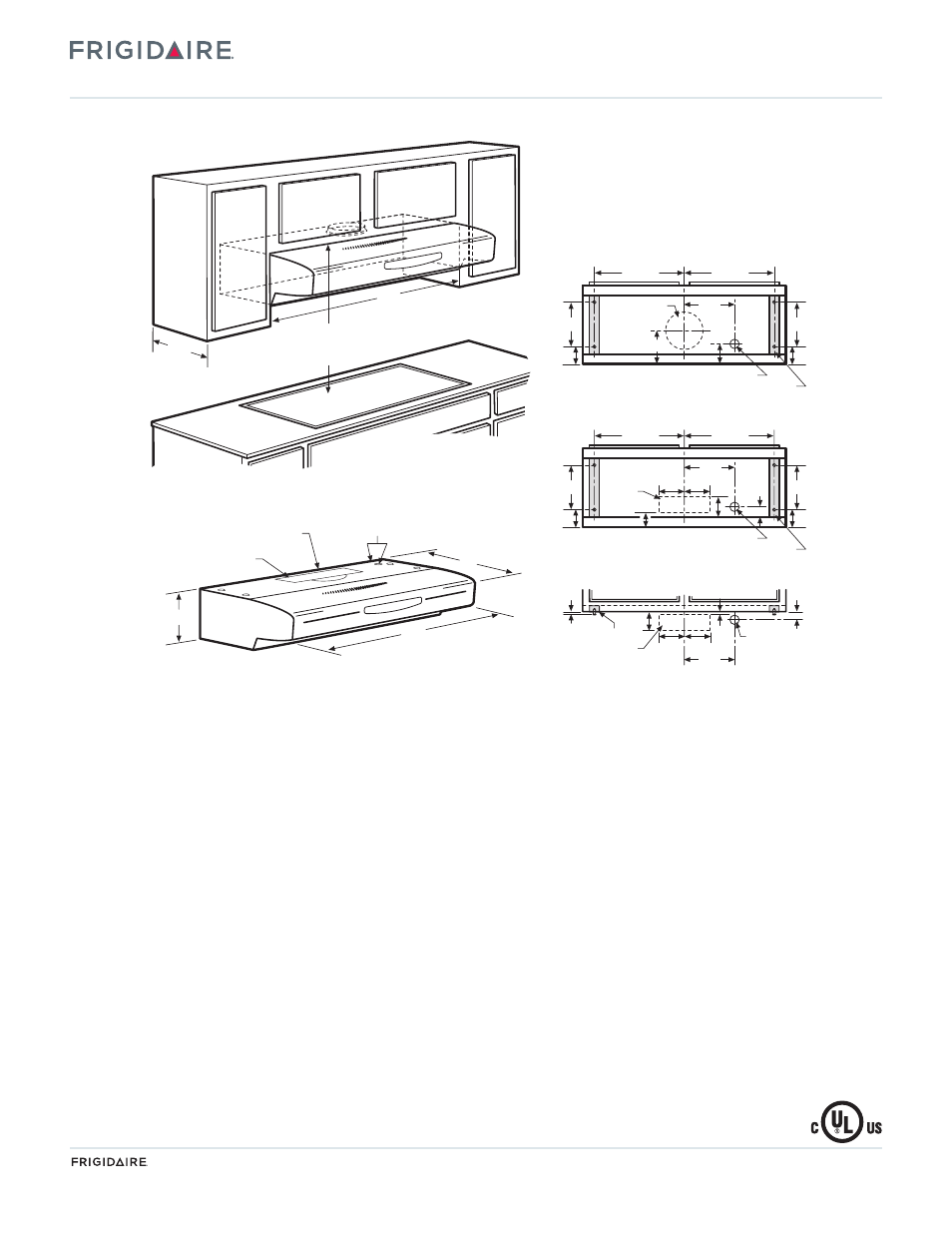

Exhaust Options
Vent hood can be vertically or horizontally
ducted outside using round or rectangular duct; or
recirculated inside with no ducting required.
For detailed duct preparation and installation
specifications, refer to installation
instructions on web.
Outside Horizontal – 3
1
/
4
" x 10"Rectangular Duct
5
1
/
4
" 5
1
/
4
"
3
3
/
4
"
Cabinet Front
1
/
8
"
7
1
/
2
"
Electrical
access hole
(in wall)
3
/
4
"
Horizontal
duct cutout (in wall)
3
/
8
"
Wood filler strips
Minimum 24"-30"
allowed from cooking surface
to top of hood
1
1
/
4
"
Outside Vertical – 3
1
/
4
" x 10"Rectangular Duct
Cabinet Bottom
5
1
/
4
"
5
1
/
4
"
7
1
/
2
"
Vertical
duct
cutout
2"
9"
Electrical access hole (in cabinet bottom)
5"
9"
1
1
/
2
"
16
15
/
16
"
16
15
/
16
"
Wood filler strips (recessed cabinet bottoms only)
1
1
/
2
"
Outside Vertical – 7"Round Duct
Cabinet Bottom
5"
8"dia.cutout
for 7"round
duct
2"
Electrical access hole (in cabinet bottom)
7
1
/
2
"
16
15
/
16
"
16
15
/
16
"
Wood filler strips (recessed cabinet bottoms only)
9"
1
1
/
2
"
9"
1
1
/
2
"
