FUJITSU DCU105 3 - Manual (Page 9)

- 9 -

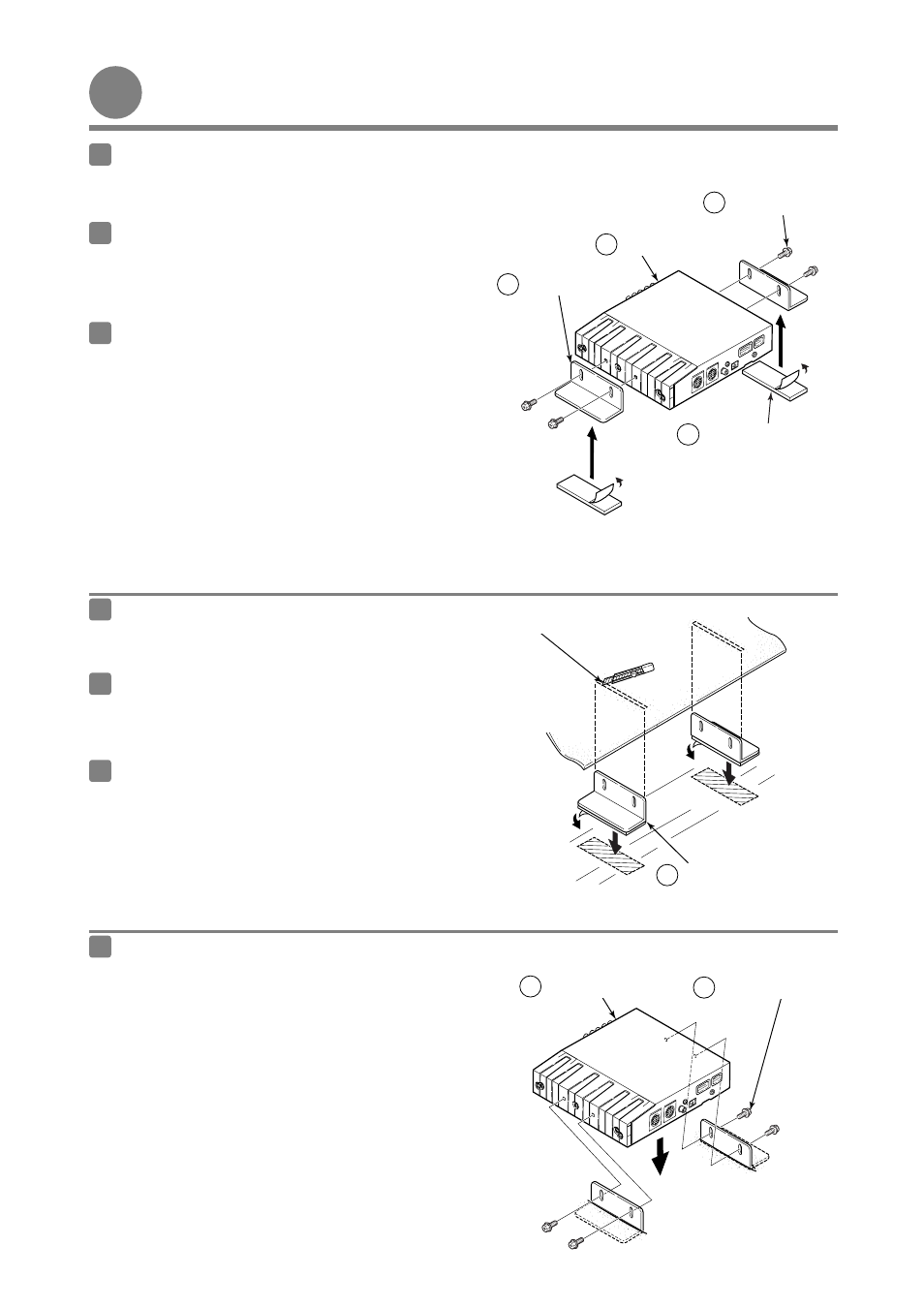

Installing the decoder unit Installing the decoder unit
Install the side brackets to the sides of the
decoder unit with the supplied screws.
1
Attach the self-adhesive pads to the base of the
side brackets.
2
Life up the carpet underneath the vehicle seat
and find a suitable mounting location.
3
Decoder unit 1
Make marks on the floor to indicate the bracket
mounting location.
4
Remove the side brackets from the decoder unit,
and attach the side brackets to the floor at the
indicated mounting location.
5
Use a knife to cut slits in the carpet at positions
corresponding to the top of the brackets.
6
Hex-head bolt [x4 ] 7
Use a knife to cut slits
SIDE BRACKETS [x 2 ] 5
Install the decoder unit to the side brackets. 7
Self-ahesive pad [x 2 ] 6
Side bracket [x2 ] 5
Decoder unit 1 Hex-head bolt [x4 ] 7
