PROCESSING WITHOUT USING THE CURRENT AMP
When Current Amp is not used, connect the
+
INC1 terminal (pin 13) ,
+
INC2 terminal (pin 24) ,
−
INC1 terminal
(pin 12) , and
−
INC2 terminal (pin 1) to VREF, and then leave OUTC1 terminal (pin 10) and OUTC2 terminal
(pin 2) open.
24
13
12
1
2
10
6
−
INC1
+
INC1
+
INC2
−
INC2
OUTC1
OUTC2
VREF
“Open”

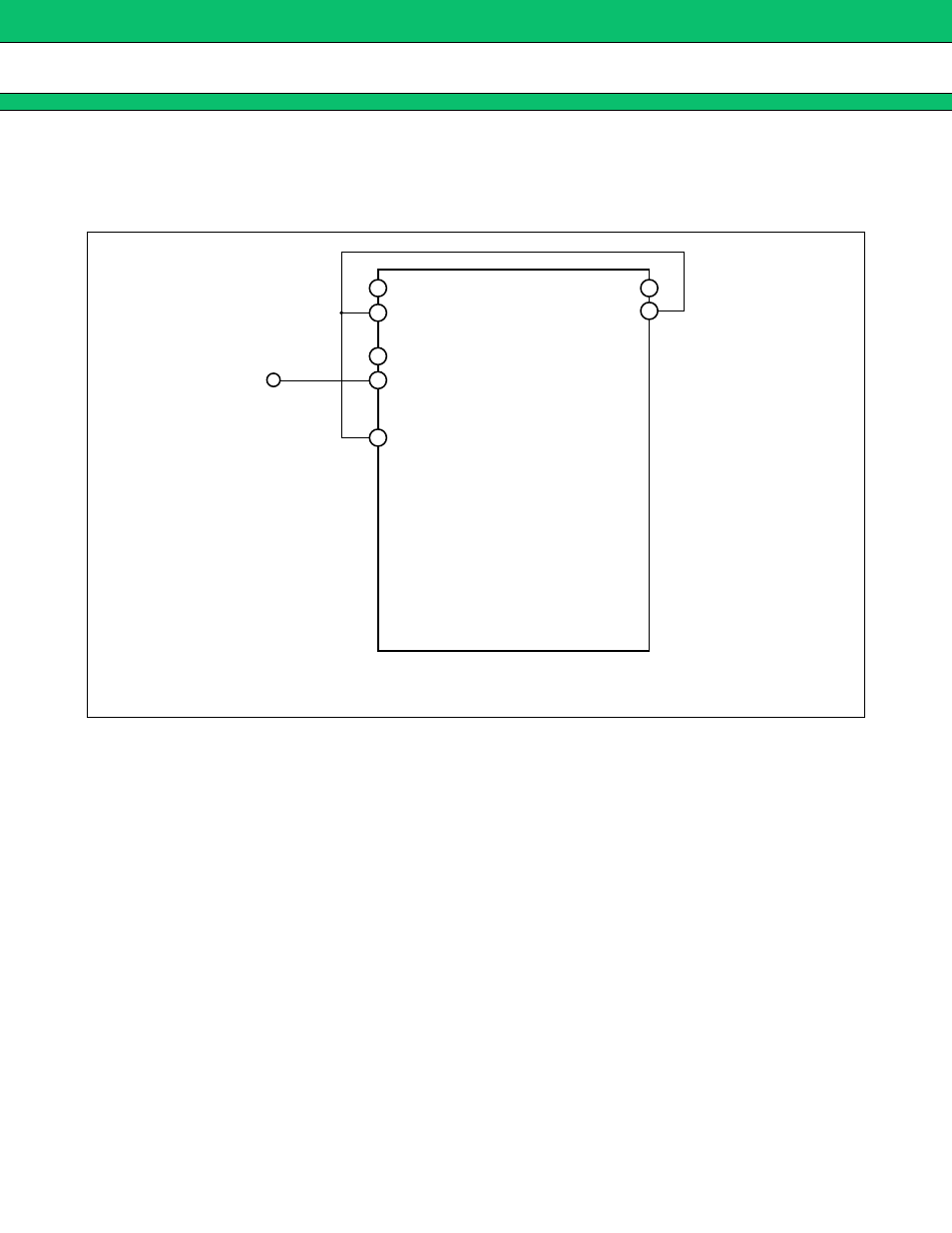

Connection when Current Amp is not used
