Power Recorder
Power Type Diagrams
19
SD
ETHERNET
POWER
1750
POWER RECORDER
ON
BUSY
LINK
100-240 V
47-63 Hz
B
A
C
N
VOLTAGE
CURRENT
G
N
D
ØA/L1
B/L2
C/L3
A/L1
G
N
D
ØC/L3
ØB/L2
azd05f.eps

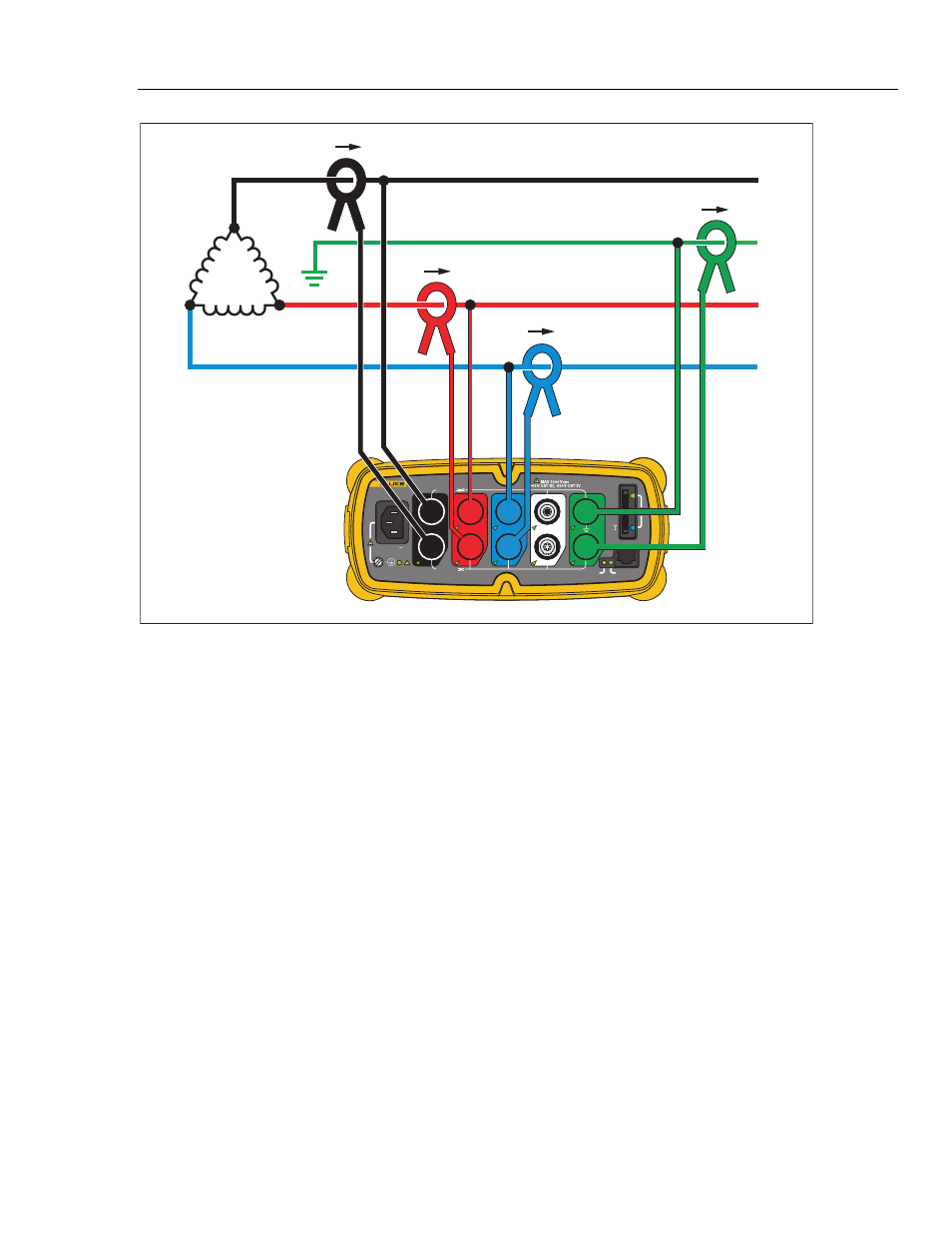

Figure 8. Three-Phase Delta
Example: Often found in industrial settings where electric motors are used.
