azd04f.eps

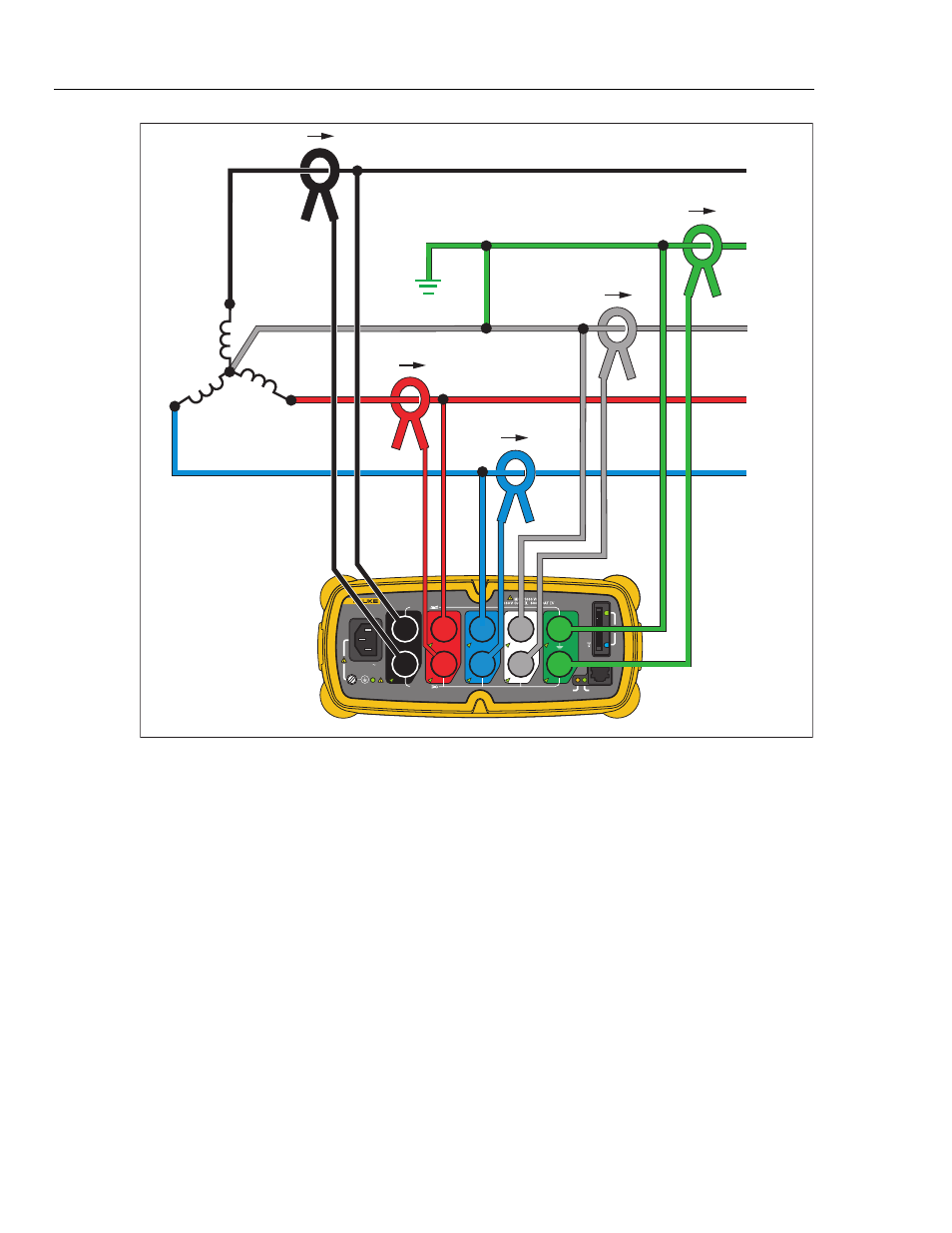

Figure 7. Three-Phase Wye
Example: Also called “Star” or four-wire connection. Typical commercial building power.
