Specifications and Warranty
3.1
Specifications
7
3
Specifications and Warranty
5626
5628
Temperature Range
–200°C to 661°C
R
tp
100
Ω ±1Ω at 0.01°C
25.5
Ω ±0.5Ω at 0.01°C
Resistance RatioW(Ga)
W(302.9146K)
≥1.11807
α ≥ 0.003925
Calibration Uncertainty
(k=2)
±0.006°C at –200°C
±0.004°C at 0°C
±0.009°C at 420°C
±0.014°C at 661°C
Short-Term Stability
±0.003°C
±0.002°C
Long-Term Drift (R
tp
)
≤0.03°C with 500 hours at
661°C
≤0.02°C with 500 hours at
661°C
Sheath
Inconel™ 600
Handle Temperature
Range
0°C to 80°C
Lead Wires
4-wire Super-Flex PVC, 22 AWG
Termination
Gold-plated spade lugs
Size
304.8 mm x 6.35 mm dia. (12" L x 0.25")
381 mm x 6.35 mm dia.(15" L x 0.25”)
508 mm x 6.35 mm dia. (20" L x 0.25")
Table 2 Specifications
5626
SN:0021
562X-12 12"
562X-15 15"
562X-20 20”
≈2 meters
(6')
≈152 mm
(6")
Strain Relief
Terminal Box
Lead Wire
65 mm
(2.5")
Inconel Sheath
6.35 mm
(.25")
Gold-plated Terminals

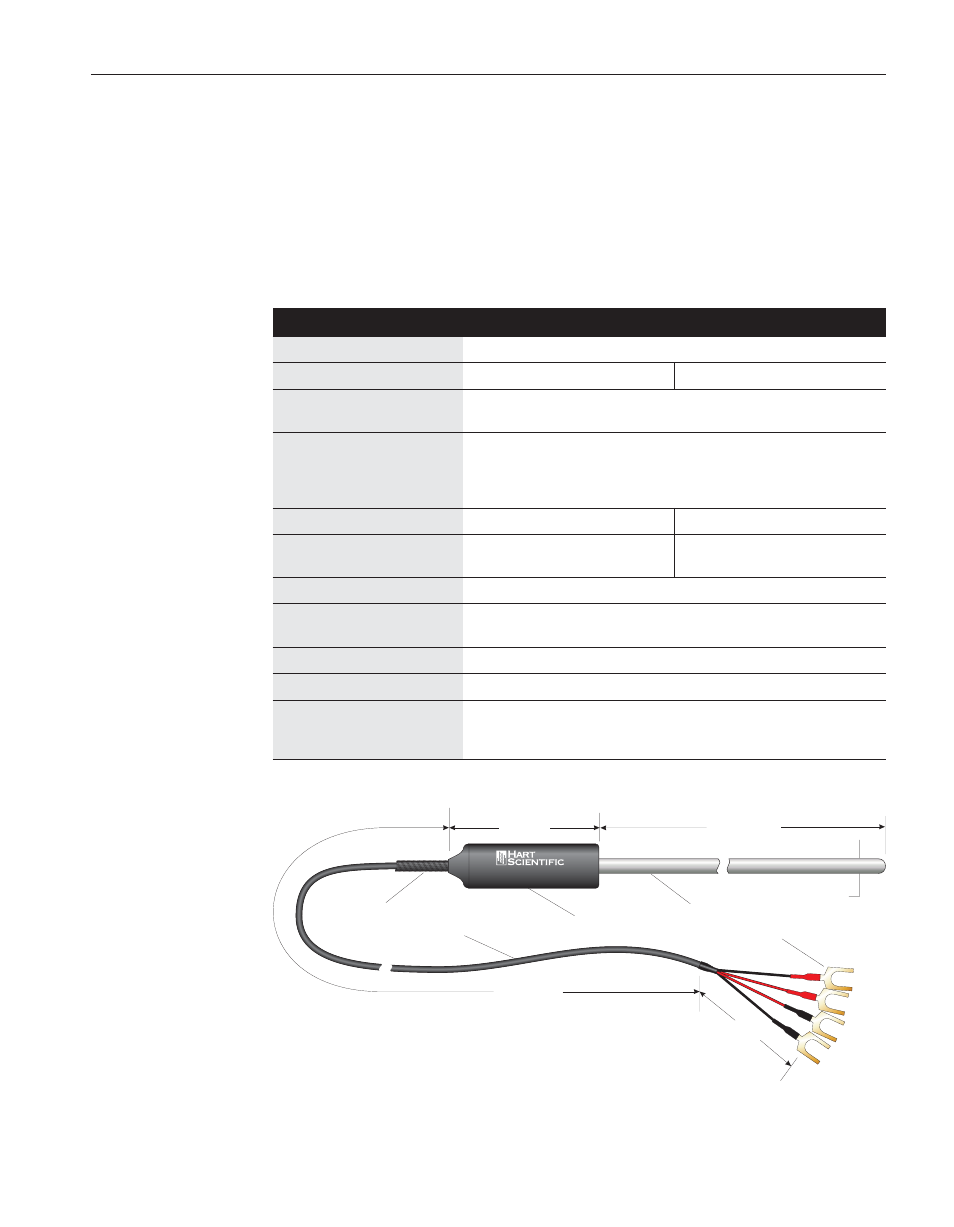

Figure 2 Standard Dimensions
