Roadside emergencies – FORD 1998 Ranger User Manual
Page 99

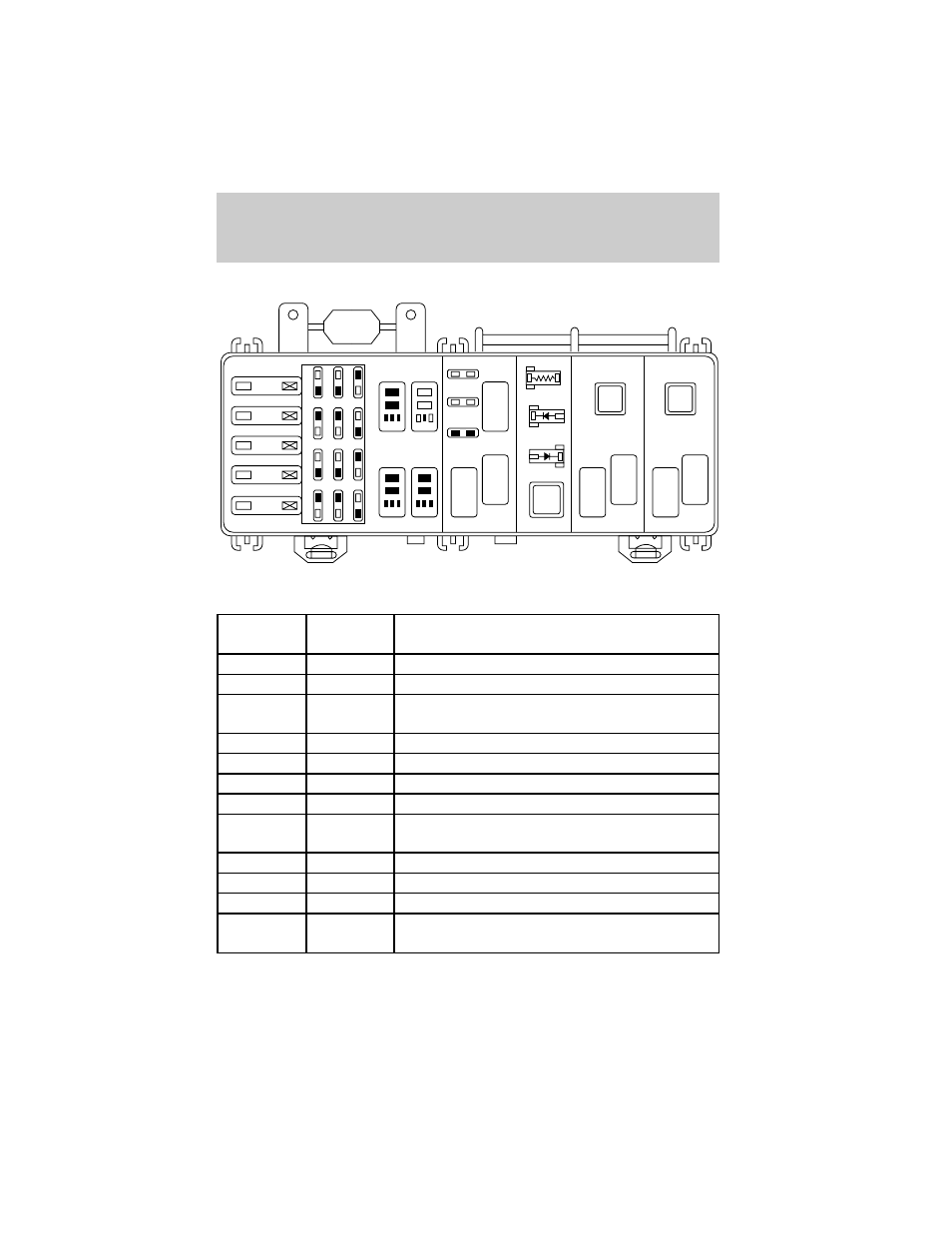

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Description
1
50A**
I/P Fuse Panel
2
40A**
Blower Motor Relay
3
50A**
4 Wheel Anti-Lock Brake System (4WABS)
Module
4
20A**
Power Windows
5
50A
Ignition Switch, Starter Relay
1
10A*
A/C Relay
2
20A*
Auxiliary Power Point
3
20A*
Electronic Shift Relay and Electronic Shift
Control Module
4
15A*
Fog Lamp and Daytime Running Lamps
5
10A*
Air Bag Diagnostic Monitor
6
10A*
Powertrain Control Module
7
30A*
4 Wheel Anti-lock Brake System (4WABS)
Module
54
3
2
1
12
11
10
9
876
5
432
1
14
15
13
9
6
10
8
7
5
4
1
2
3
21
1
175
MEGAFUSE
11
13
12
14
Roadside emergencies
99
