T5003pr-0920

9

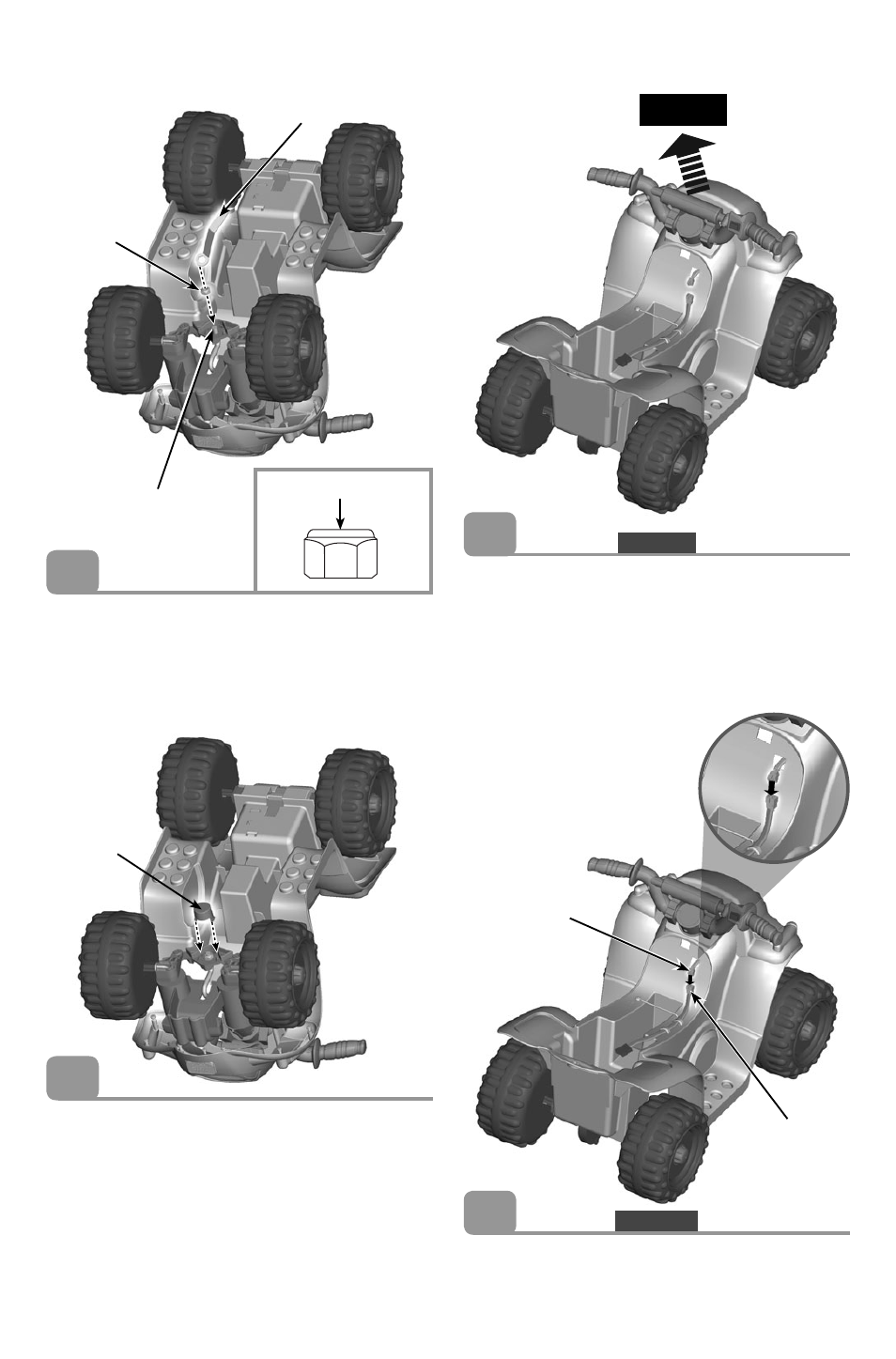

• Fit the lock nut (rounded side up) on to the end of the

steering column.

• Tighten the lock nut firmly using the closed end of the

assembly tool.

Steering Column

Lock Nut

Steering

Column

Cap

• Turn the vehicle upright.

• Pull the handlebar up to be sure the steering column

is secure.

• If you can remove the steering column, you have not

assembled the steering column correctly. Please refer
back to Assembly steps 2-4.

• Plug the handlebar connector into the motor connector.

• Replace the seat (refer to step 6 on page 13).

Motor

Connector

Handlebar

Connector

Assembly Tool

Rounded Side Up

ASSEMBLY

SIDE VIEW

REAR VIEW

3

Pull Up

5

6

• “Snap” the steering column cap to the front wheel

assembly.

4
