Parts – Fisher-Price T5003 User Manual
Page 4
4
T5003pr-0920
Vehicle (with Seat)
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751,
rather than return this product to the store.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that
no parts are discarded.
• Some parts were placed under the seat for shipment. Turn the lock fastener 1/4 turn and lift to remove the seat.
• Metal parts have been coated with a lubricant to protect them during shipment. Wipe all metal parts with
a paper towel to remove any excess lubricant.

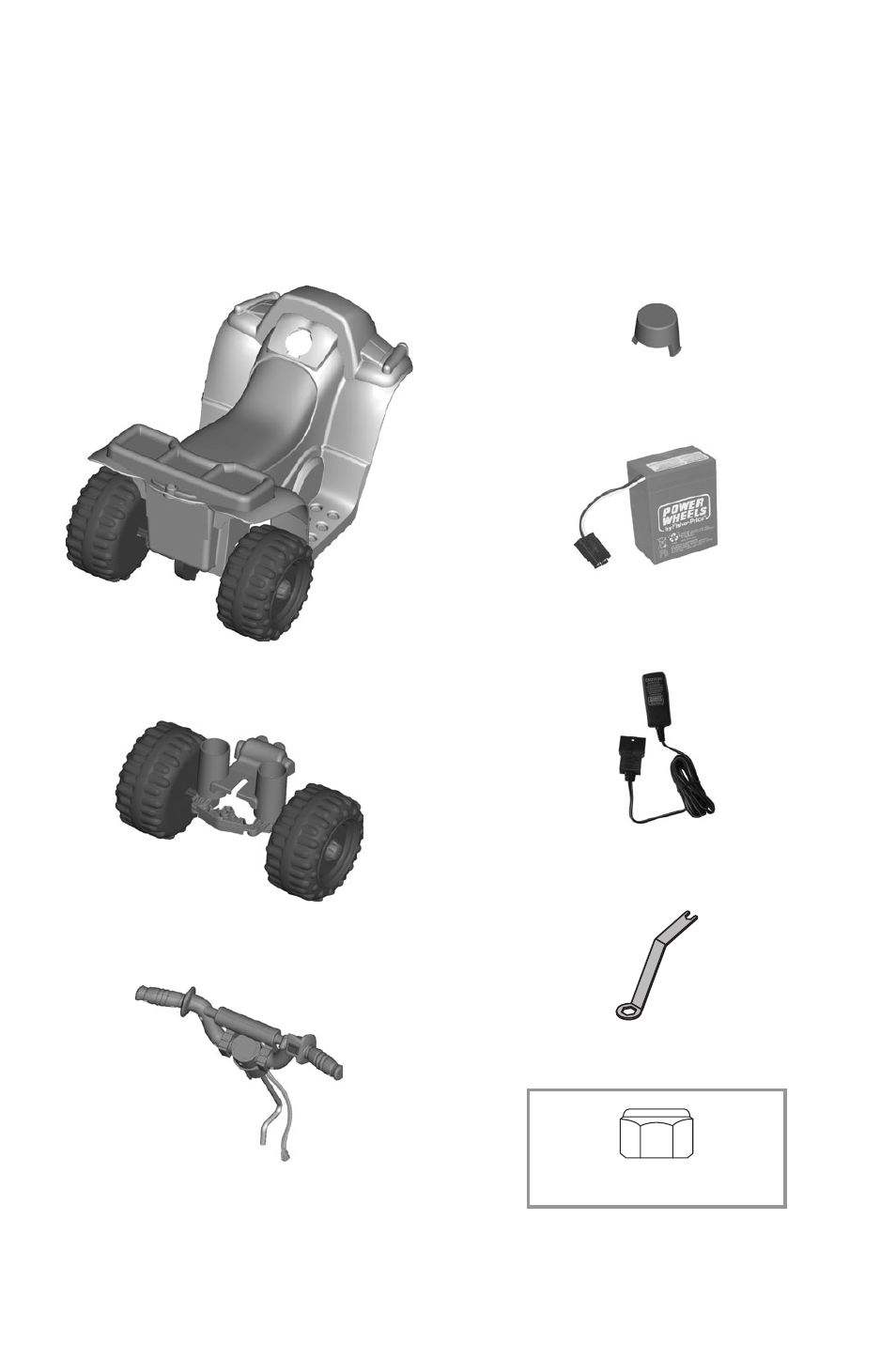

6 Volt (4.0 Amp/Hr.) Battery
Handlebar Assembly
Front Wheel Assembly
Fastener Shown Actual Size
Part Not Shown: Label Sheet
Assembly Tool
6 Volt (4.0 Amp/Hr.) Charger
PARTS
Steering Wheel Cap
