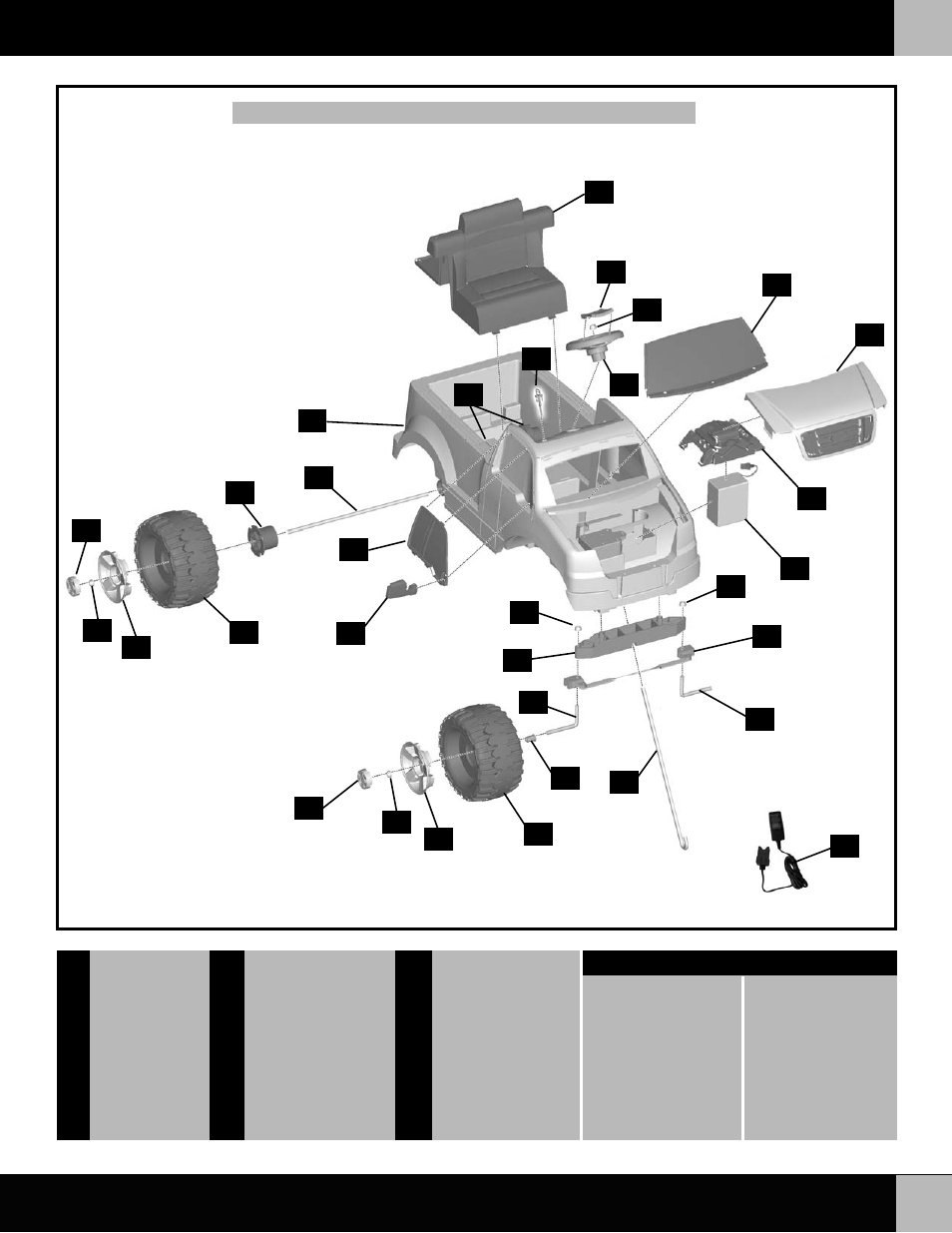

PARTS PICTURE D
P5064pr-0920
7
13
12
18
15
21
8
16
5
1
7
12
4
9
Note: Some parts shown are assembled on both sides of the vehicle.
11
2
1 Vehicle
2 Seat
3 Hood
4 Windshield
5 Pretend Motor
6 6 Volt Battery
7 Steering Linkage
8 Front Axle - 2
9 Steering Column
10 Steering Linkage Cover
11 Bushing - 2
12 Wheel - 4
13 Hubcap - 4
14 .437 Cap Nut - 6
15 Hubcap Cover - 4
16 Steering Wheel
17 Steering Wheel Cover
18 Key
7 /
16
" Washers - 4
#8 x 3 /
4
" Screws - 11
1" Bolt - 2
19 Side Mirror - 2
20 Side Window - 2
21 Rear Axle
22 Rear Wheel Driver - 2
23 Super 6 Volt Charger
24 Motor (Inside vehicle)
25 .354 Cap Nut
#12 x 1 1 /
4
" Screws - 2
Assembly Tool
Label Sheet - 2
