13
ASSEMBLY F
P5064pr-0920
14
15

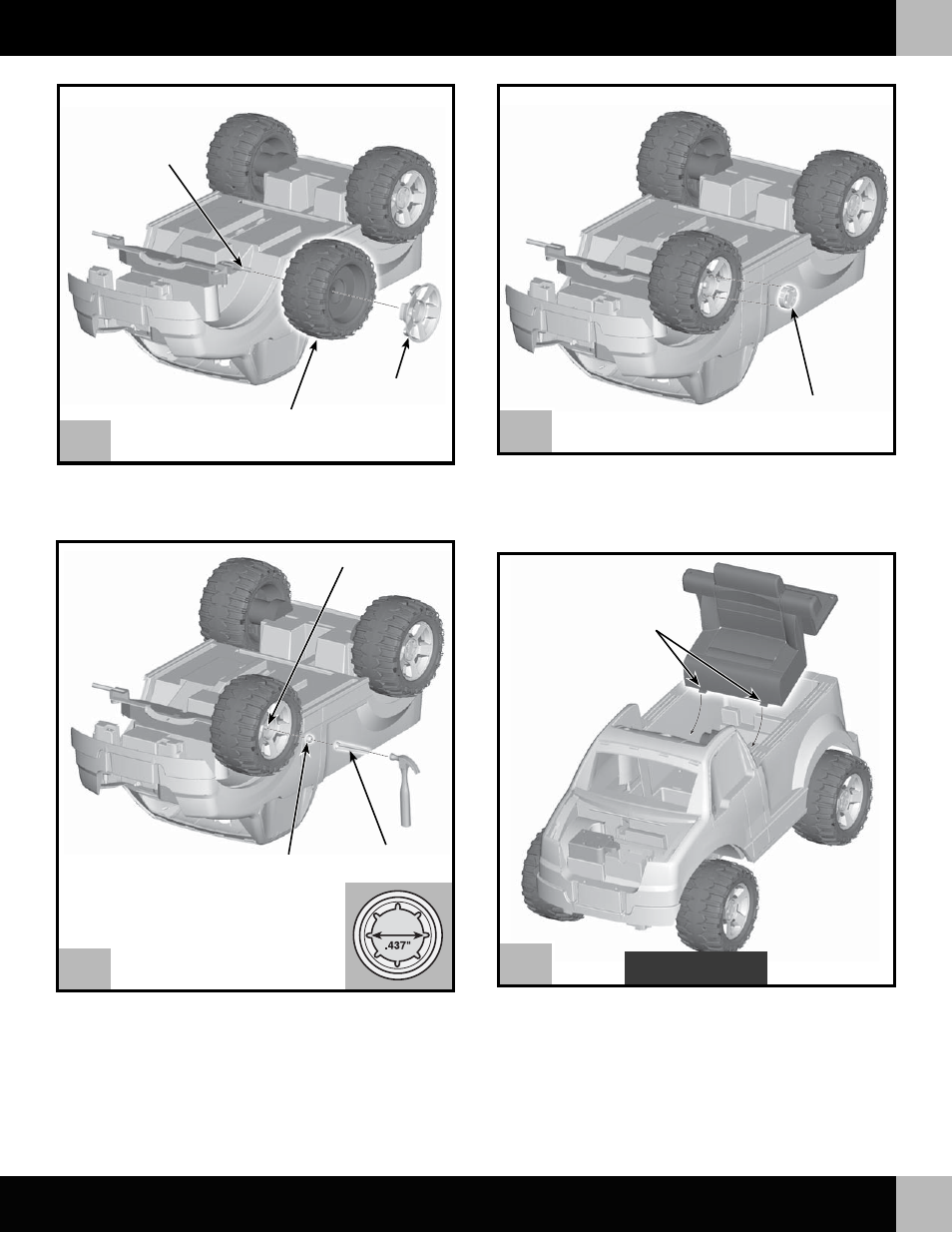

• Fit a .437 cap nut on the end of the front axle.
• Fit the assembly tool over the cap nut. Tap the end of the
assembly tool with a hammer to secure the cap nut on the end
of the front axle. Pull the wheel to be sure it is secure.
Front Axle
.437 Cap Nut
Assembly
Tool
• Fit a wheel, rib side in, onto the front axle.
• Slide a hubcap, peg side in, onto the front axle.
Hubcap
(Peg Side In)
Wheel
(Rib Side In)
Front Axle
• Turn the vehicle upright.
• Insert the tabs on the front edge of the seat into the floor
of the vehicle.
Seat
Tabs
• Fit and snap a hubcap cover to the hubcap.
• Repeat Assembly steps 13- 16 to assemble a washer, bushing,
wheel, hubcap, cap nut and hubcap cover to the other front axle.
Hubcap
Cover 16
17
FRONT VIEW
