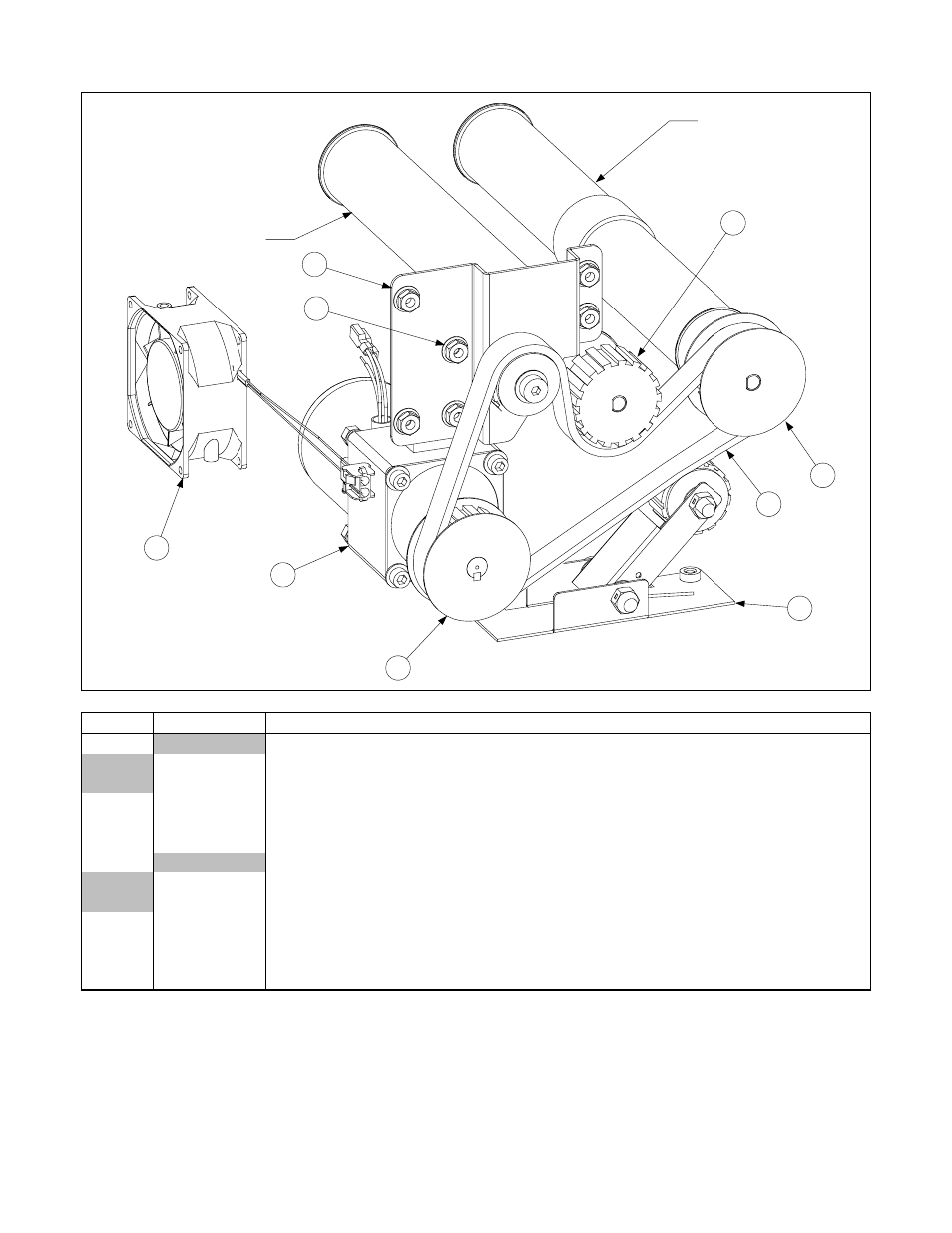

2.6 Motor, Drive Train, and Fan Components
See Page 4
See Page 6
3
4
1
2
7
6
5
8
9
ITEM
PART #
COMPONENT
1
Motor Assembly, 50/60 Hz
106-3052
200-208V VT Drive
106-2841
220-250V VT Drive
2
810-2302
Drive Belt
3
106-2128
Bracket Assembly, VT Idler Pulley
4
826-1368
Nut, ¼-20 Serrated Flange (Pkg. of 10)
5
Pulley, Motor Driven
810-2565
18-Tooth (Non-CE
810-2704
21-Tooth (CE and Australian)
6
106-2723
Tensioner Assembly, Drive Belt
7
810-2566
Pulley, 17-Tooth Dual Belt Drive
8
810-2564
Pulley, 17-Tooth Toasting Belt Drive
9
106-2703
Fan Assembly, VT Motor Cooling
