Page 4
3

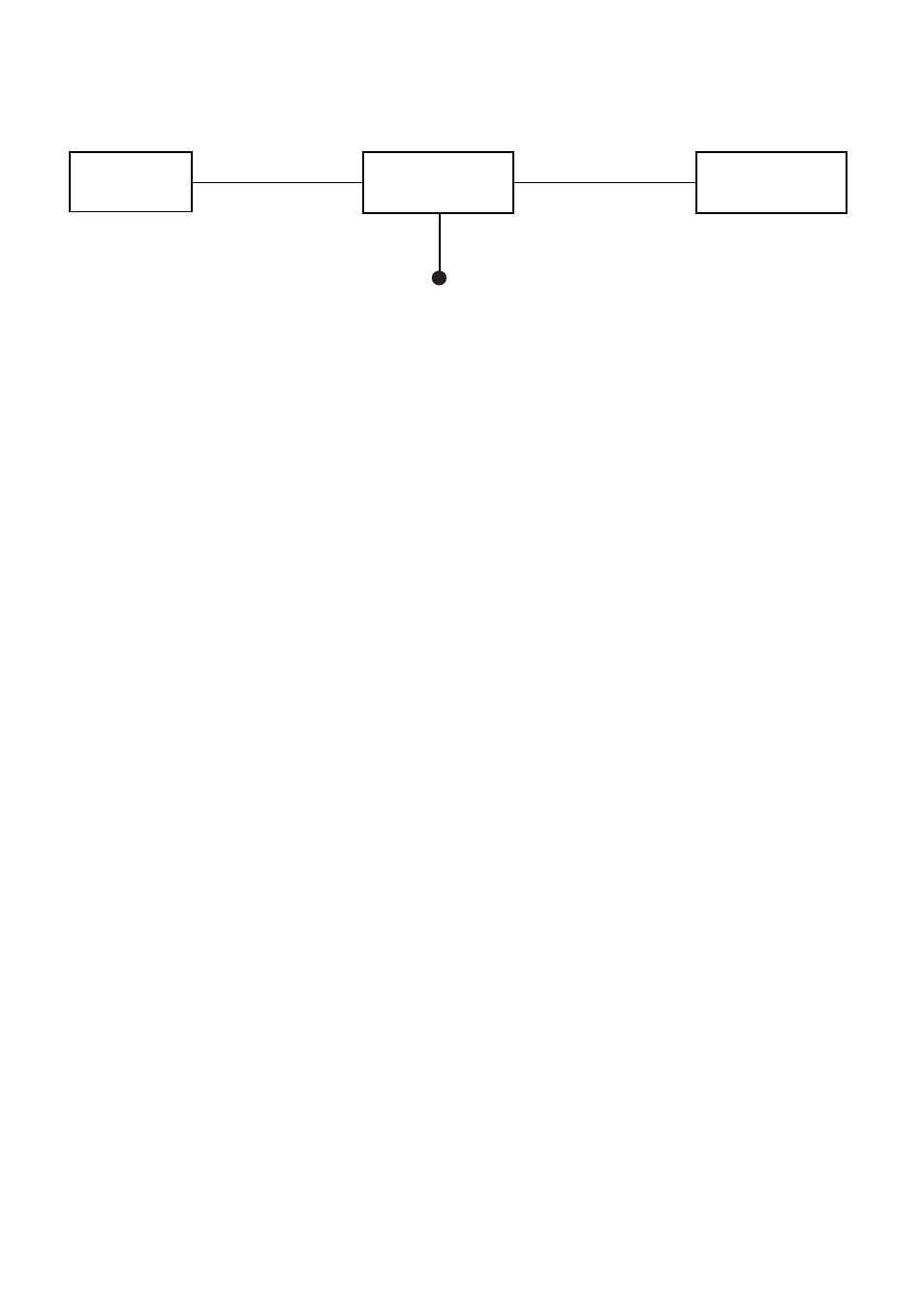

System Configuration
AIS Transponder
FA-100
IF-1500AIS
12-24 VDC
NavNet2 Series
Radar, Plotter
Cable
MJ-A15A3F0013-035
Cable
MJ-A7SPF0003-050 (5 m)
Cable
MJ-A6SPF0012-050 (5 m)*
* 10 m cable optionally
available
Mounting
The unit can be mounted on a desktop or a bulkhead. When choosing a mounting location,
keep in mind the following points:
•
Consider cable lengths.
•
Choose a location away from rain and water splash and one which is not in direct
sunlight.
•
Observe the maintenance space noted in the outline drawing to facilitate servicing.
•
Observe the compass safe distances noted in the safety instructions at the beginning of
this manual.
Fix the unit to the mounting location with four self-tapping screws (4x16). Connect cables
referring to the interconnection diagram. Run a ground wire (local supply) between the
ground terminal and ship’s superstructure.
