The Flip top wok support goes in the center
over the wok burner. The other two pan
supports are interchangeable but need to be
rotated to match the rounded corners of the
base insert and the burner sizes.
GC36 models
The pan supports above the wok burner are
different from the other burners. Note the
raised area for the wok on the pan support.
Repositioning the pan supports
Re-assembling your wok burner
(GC901M Iridium models only)

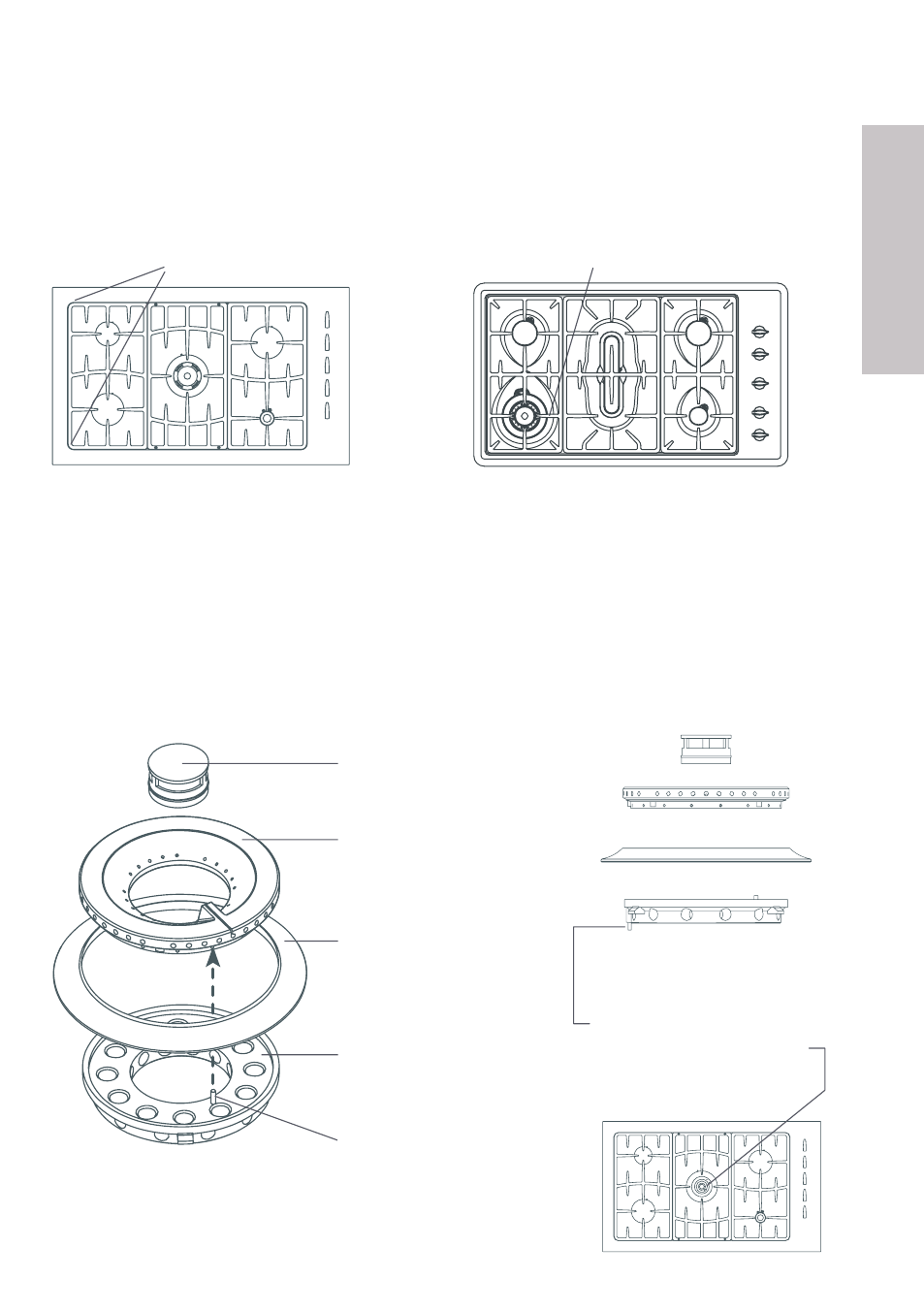

Each part of your wok burner has locating pins to help you to assemble it correctly after cleaning.
Incorrect assembly can cause dangerous irregular flames and ignition problems. Refer to this
diagram for the correct order of assembly. Note: The brass parts of your wok burner will change
color with use. This is normal and will not affect performance.
Rotate vent ring to align locater
pin with hole in burner base.
Inner cap
Outer cap (small holes)
Trim ring
Vent ring with locater pins
(large holes)
Align and insert pin
Side view
US
Correct pan support orientation - GC901 models
Rounded corners
Raised area on wok support
Correct pan support orientation - GC36 models
