19

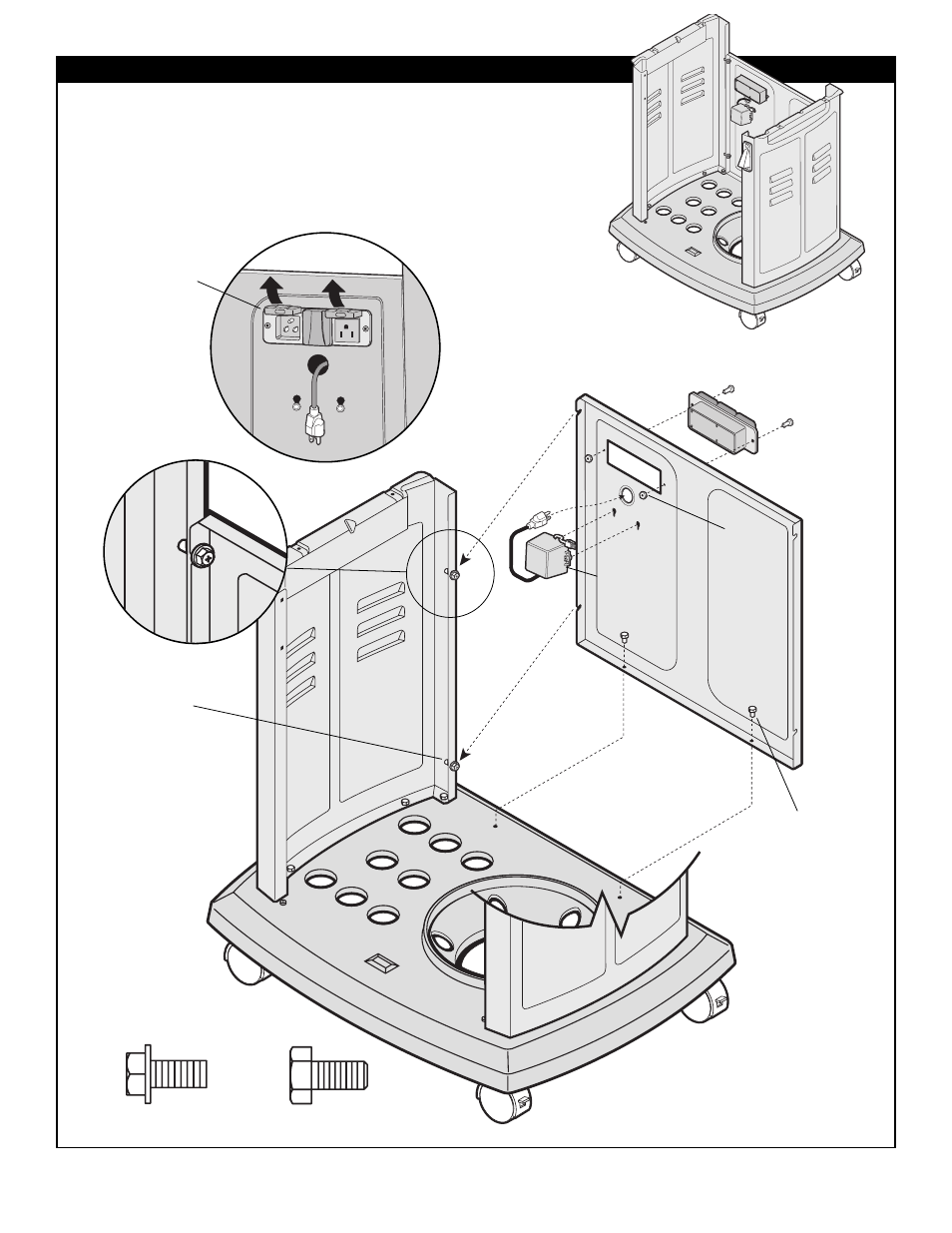

REAR PANEL ASSEMBLY
FIG.3
Assembled
View
SP46-21 (4) 1/4" X1/2"
SCREW HEX HD
SP46-21 (4) 1/4" X 1/2"
SCREW HEX HD
SP84-18 (2) 1/4-20 X .5
HEX HD BOLT
SP84-18 (2) 1/4-20 X .5
HEX HD BOLT
TRANSFORMER
BOX
SP54-21 (2) #10-24
SCREW
SP43-16 (2)
#10-24 NUT
• Attach rear panel by sliding notches over screws on side panels as
shown. Tighten screws.
• Install Electrical box with Screws and Nuts as shown. Ensure
Electrical box is installed so outlet covers open upwards.
• Install Transformer box into rear panel holes as shown.
INSTALL SO OUTLET
COVERS OPEN
UPWARDS
