OPERATING CONTROLS AND FUNCTIONS

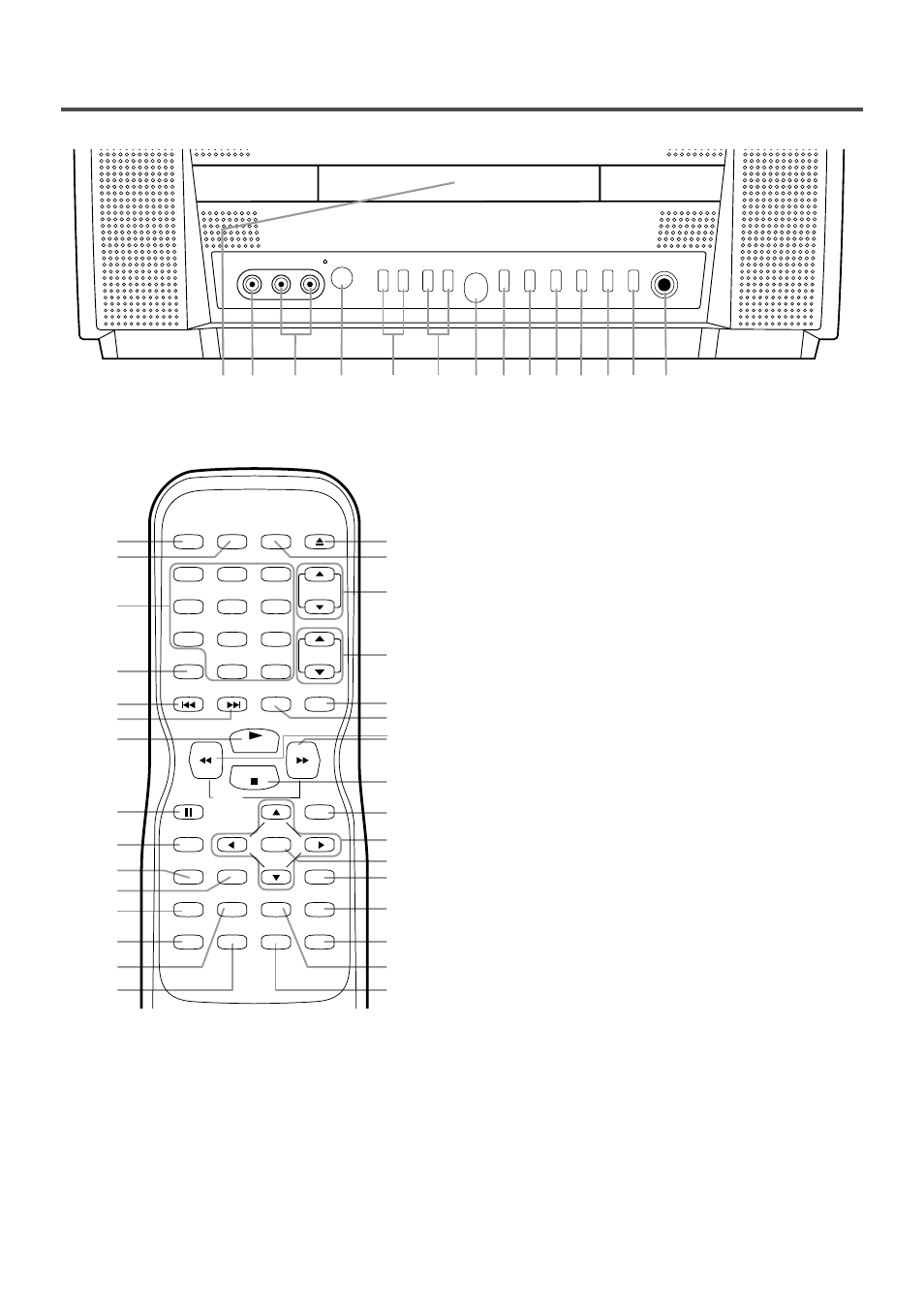

- REMOTE CONTROL - [Fig. 2]
- FRONT PANEL - [Fig.1]
25
26
16
17
9
11
12
18
19
21
22
24
23
20
10
27
28
29
32
35
34
5
6
13
36
33
8
30
31
4
15
SLOW
PLAY
STOP
ENTER
PAUSE
DISC
MENU
RETURN
TITLE
SETUP
REPEAT
A-B
REPEAT
SEARCH MODE
CLEAR
MODE
ANGLE
SUBTITLE
AUDIO
DISPLAY
PREV
NEXT
SELECT
STANDBY-ON PICTURE
OPEN/CLOSE
CH.
VOL.
MUTE
ZOOM
SLEEP
1
2
3
4
5
6
7
8
9
0
+10
+100
1.
Disc loading tray
2.
VIDEO input Jack
Connect to the video output jack of a video camera or
VCR.
3.
AUDIO L/R input Jacks
Connect to the audio output jacks of a video camera or
VCR.
4.
STANDBY-ON Button
[P.13]
Hit to turn the power on and off.
5.
VOLUME (VOL.)
K
/
L
Buttons
[P.13]
Press to control the volume level for the DVD and TV.
6.
CHANNEL (CH.)
K
/
L
Buttons
[P.13]
Press to select memorized channels.
7.
Remote sensor window
8. C
STOP Button
[P.20]
Stops operation of the disc.
9. H
PREV Button
[P.22]
Hit once to move to the previous chapter or track.
h
SEARCH Button (Front panel)
[P.21]
Hit and hold to change reverse playback speed.
10. B
PLAY Button
[P.20]
Starts playback of the disc.
11.
NEXT
G
Button
[P.22]
Hit once to move to the next chapter or track.
SEARCH
g
Button (Front panel)
[P.21]
Hit and hold to change forward playback speed.
12. F
PAUSE Button
[P.21]
Pauses the current disc operation.
13.
A
OPEN/CLOSE Button
[P.20]
Hit to insert a disc into or remove it from the
tray.
14.
HEADPHONE Jack
To connect headphone (not supplied) for personal
listening.
15.
PICTURE Button
[P.13]
Hit to adjust the picture.
16.
Number Buttons
TV Mode:
[P.13]
Press two digits to directly access the desired
channel.
Remember to hit [0] before a single digit channel.
+100 Button–
Hit to select cable channels which are higher
than 99.
DVD Mode:
[P.22]
Hit to enter the desired number.
+10 Button–
Hit to enter the desired numbers which are higher
than 9.
17.
SLEEP Button
[P.14]
Sets the Sleep Timer.
y
STANDBY-ON
L
VOLUME K
L
CHANNEL K
H
PREV
NEXT G
B
PLAY
F
PAUSE
C
STOP
A
OPEN/CLOSE
HEADPHONE
VIDEO
L –AUDIO– R
E
– SEARCH – D
