www.fmiproducts.com 121082-01K 30
SPECIFICATIONS

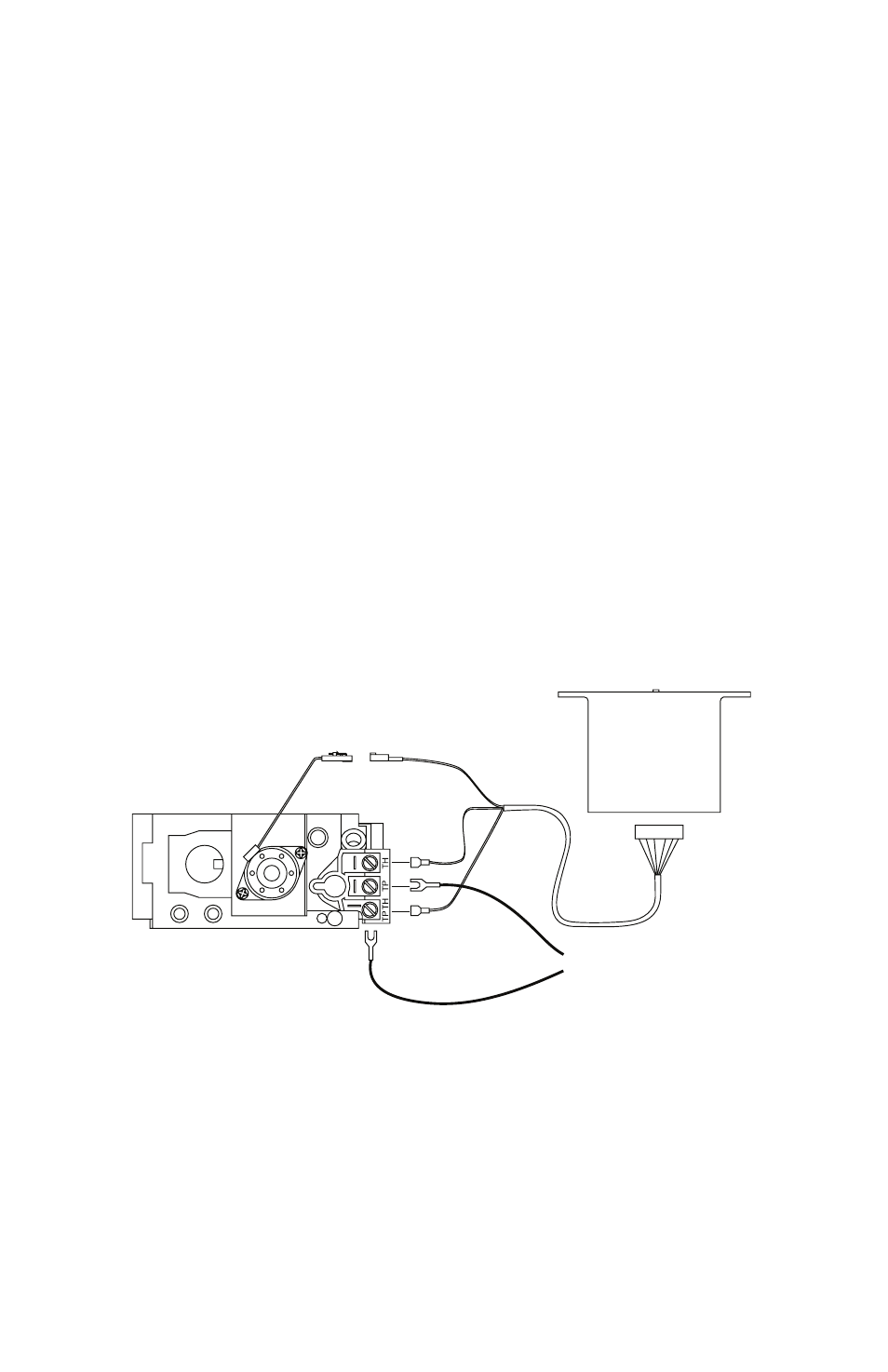

Figure 47 - Remote Control Wiring Diagram
Black Connectors
Receiver
To Thermopile
White
Red
Model VSGF36NRC
• Rating (Variable): 33,000/21,500 Btu/Hr
• Type Gas: Natural Gas
• Ignition: Electronic
• Pressure Manifold: 3.5" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 10.5" W.C., Minimum* 5" W.C.
• Shipping Weight:
120 lbs.
* For input adjustment
Model VSGF36PRC
• Rating (Variable): 33,000/21,500 Btu/Hr
• Type Gas: Propane/LP
• Ignition: Electronic
• Pressure Manifold: 7.9" W.C.
• Inlet Gas Pressure (in. of water):
Maximum 13" W.C. Minimum* 11" W.C.
• Shipping Weight: 120 lbs.
* For input adjustment
TECHNICAL SERVICE
You may have further questions about installa-
tion, operation or troubleshooting. If so, contact
FMI PRODUCTS, LLC at 1-866-328-4537.
When calling, please have your model and
serial numbers of your firebox ready.
You can also visit FMI PRODUCTS, LLC’s
web site at www.fmiproducts.com.
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specified heat
• propane/LP gas supply may be low for
propane/LP unit
You may feel your gas pressure is too low. If
so, contact your local gas supplier.
WIRING DIAGRAM
Note: For proper operation of remote control, wires from thermopile to control receiver must
be connected exactly as shown.
