Specifications, Wiring diagram, V)dvf36ns, (v)dvf36nh – FMI PFS DVF42NH-HA User Manual
Page 29: V)dvf42ns, (v)dvf42nh, V)dvf36ps, (v)dvf36ph, V)dvf42ps, (v)dvf42ph, Dvf36ns-ha, dvf36nh-ha, Dvf42ns-ha, dvf42nh-ha

www.fmiproducts.com
125078-01B
29
SPeciFicAtiOnS
(V)DVF36NS, (V)DVF36NH
• Rating: 33,500 Btu/hr
• Gas Type: Natural Gas Only
• Ignition: Electronic
• Manifold Pressure: 3.5" w.c.
• Minimum Inlet Supply Pressure: 5" w.c.
• Maximum Inlet Supply Pressure: 10.5" w.c.
• Front Orifice: #47
• Rear Orifice: #47
(V)DVF42NS, (V)DVF42NH
• Rating: 41,000 Btu/hr
• Gas Type: Natural Gas Only
• Ignition: Electronic
• Manifold Pressure: 3.5" w.c.
• Minimum Inlet Supply Pressure: 5" w.c.
• Maximum Inlet Supply Pressure: 10.5" w.c.
• Front Orifice: #42
• Rear Orifice: #44
(V)DVF36PS, (V)DVF36PH
• Rating: 31,000 Btu/hr
• Gas Type: Propane/LP Gas Only
• Ignition: Electronic
• Manifold Pressure: 10" w.c.
• Minimum Inlet Supply Pressure: 11" w.c.
• Maximum Inlet Supply Pressure: 13" w.c.
• Front Orifice: #56
• Rear Orifice: #56
(V)DVF42PS, (V)DVF42PH
• Rating: 37,000 Btu/hr
• Gas Type: Propane/LP Gas Only
• Ignition: Electronic
• Manifold Pressure: 10.0" w.c.
• Minimum Inlet Supply Pressure: 11" w.c.
• Maximum Inlet Supply Pressure: 13" w.c.
• Front Orifice: #56
• Rear Orifice: #55
DVF36NS-HA, DVF36NH-HA
• Rating: 33,500 Btu/hr
• Gas Type: Natural Gas Only
• Ignition: Electronic
• Manifold Pressure: 3.8" w.c.
• Minimum Inlet Supply Pressure: 5" w.c.
• Maximum Inlet Supply Pressure: 10.5" w.c.
• Front Orifice: #47
• Rear Orifice: #47
DVF42NS-HA, DVF42NH-HA
• Rating: 41,000 Btu/hr
• Gas Type: Natural Gas Only
• Ignition: Electronic
• Manifold Pressure: 3.8" w.c.
• Minimum Inlet Supply Pressure: 5" w.c.
• Maximum Inlet Supply Pressure: 10.5" w.c.
• Front Orifice: #42
• Rear Orifice: #44

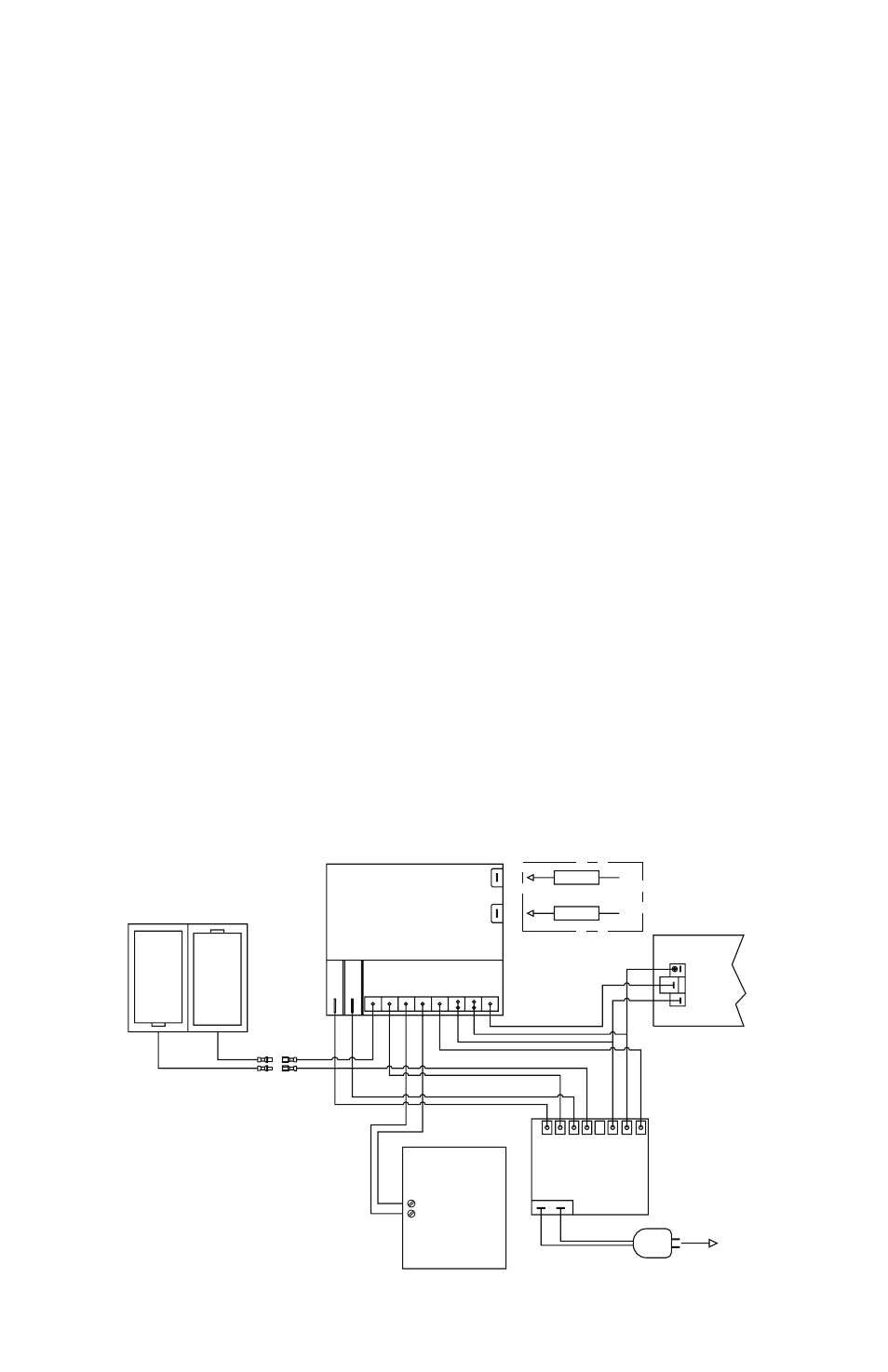

Wiring DiAgrAM
CONTROL MODULE
BATTERY
RELAY
BATTERY PACK
REMOTE
RECIEVER
VALVE
THTP
TP
TH
Red
Bk
"D"
SIZE
"D"
SIZE
Bn
4 "AA" SIZE
BATTERY
Red
Bu
Yl
Bu
Bk
Og
Gn
Yl
Gn
Bn
Bk
Og
Bk
Bk
Bn
Bu Bu
TO J-BOX
ADAPTER
I
S
PILOT CONNECTORS
Bk
Red
I
S
