45
U s e r I n s t a l l a b l e F e a t u r e s

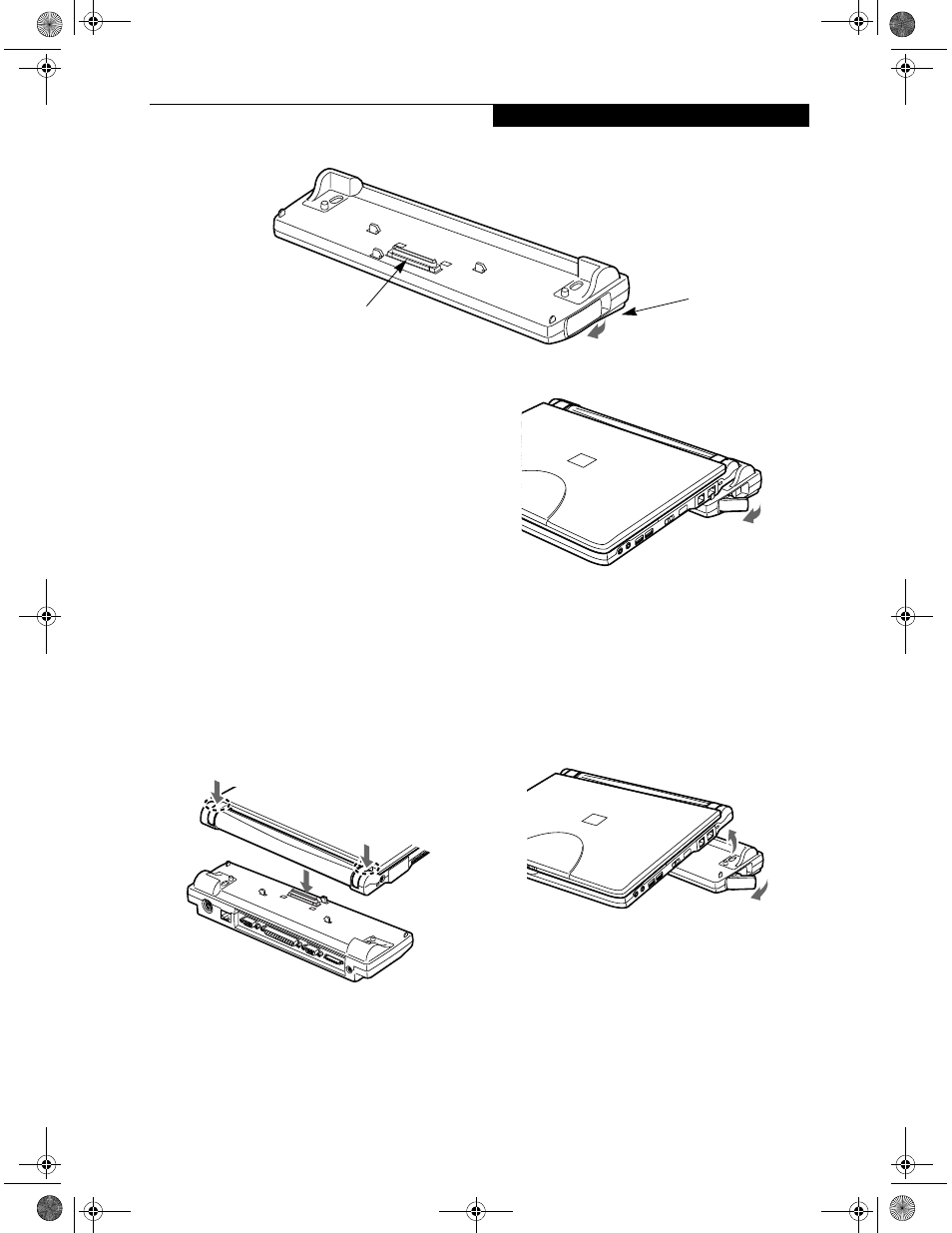

Figure 4-10 Port Replicator front panel
FRONT PANEL COMPONENTS
Following is a brief description of your Port Replicator’s
front panel components
Docking Port
The docking port connects the Port Replicator to your
LifeBook. (Figure 4-10)
Port Replicator Release Latch
Pull the Port Replicator Release latch away from the Port
Replicator to remove the Port Replicator from your Life-
Book. (Figure 4-10)
ATTACHING THE PORT REPLICATOR
To attach the Port Replicator follow these easy steps:
1. Power off your LifeBook.
2. Align the Port Replicator connector on the bottom
of your LifeBook with the connector on the
Port Replicator and push together at the two
corners. (Figure 4-11)
Figure 4-11 Attaching the Port Replicator
Figure 4-12 Unlatching the Port Replicator
DETACHING THE PORT REPLICATOR
To detach the Port Replicator follow these easy steps:
1. Power off your LifeBook.
2. Pull the Port Replicator’s release latch away from the
Port Replcator to release it from your LifeBook.
(Figure 4-12)
3. Pull away the Port Replicator to detach it from
your LifeBook. (Figure 4-13)
Figure 4-13 Removing the Port Replicator
Docking Port
Port Replicator
Release Latch
