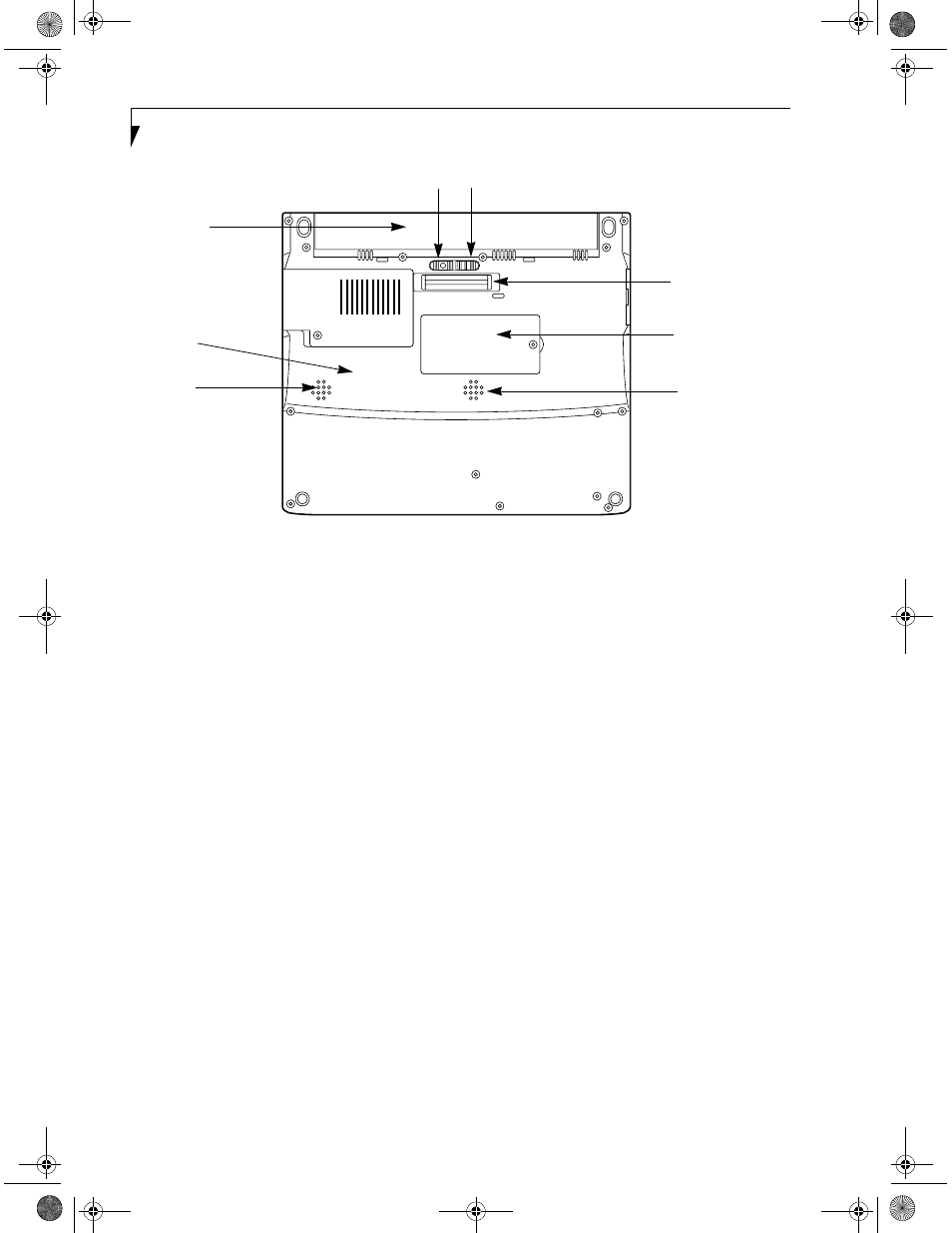

Figure 2-8 LifeBook bottom panel
BOTTOM COMPONENTS
Following is a brief description of your LifeBook’s
bottom panel components.
Lithium ion Battery Bay
The battery bay contains the internal Lithium ion
battery. It can be opened for the removal of the battery
when stored over a long period of time or for swapping
a discharged battery with a charged Lithium ion battery.
(Figure 2-8) See “Lithium ion Battery” on page 37.
Stereo Speakers
The built-in dual speakers allow for stereo sound.
(Figure 2-8)
Port Replicator Connector
This connector allows you to connect the Port Repli-
cator. (Figure 2-8)
Main Unit and Configuration Label
The configuration label shows the model number and
other information about your LifeBook. In addition,
the configuration portion of the label has the serial
number and manufacturer information that you will
need to give your support representative. It identifies the
exact version of various components of your LifeBook.
(Figure 2-8)
Memory Upgrade Compartment
Your LifeBook comes with high speed Synchronous
Dynamic RAM (SDRAM). The memory upgrade
compartment allows you to expand the system memory
capacity of your LifeBook, hence improving overall
performance. (Figure 2-8) See “Memory Upgrade
Module” on page 42.
Memory Upgrade
Compartment
Lithium ion
Battery Bay
Main Unit and
Configuration
Label (approximate
Speaker Speaker
Battery Pack Lock Battery Pack Latch
Port Replicator
Connector
location)
