Assembly
15

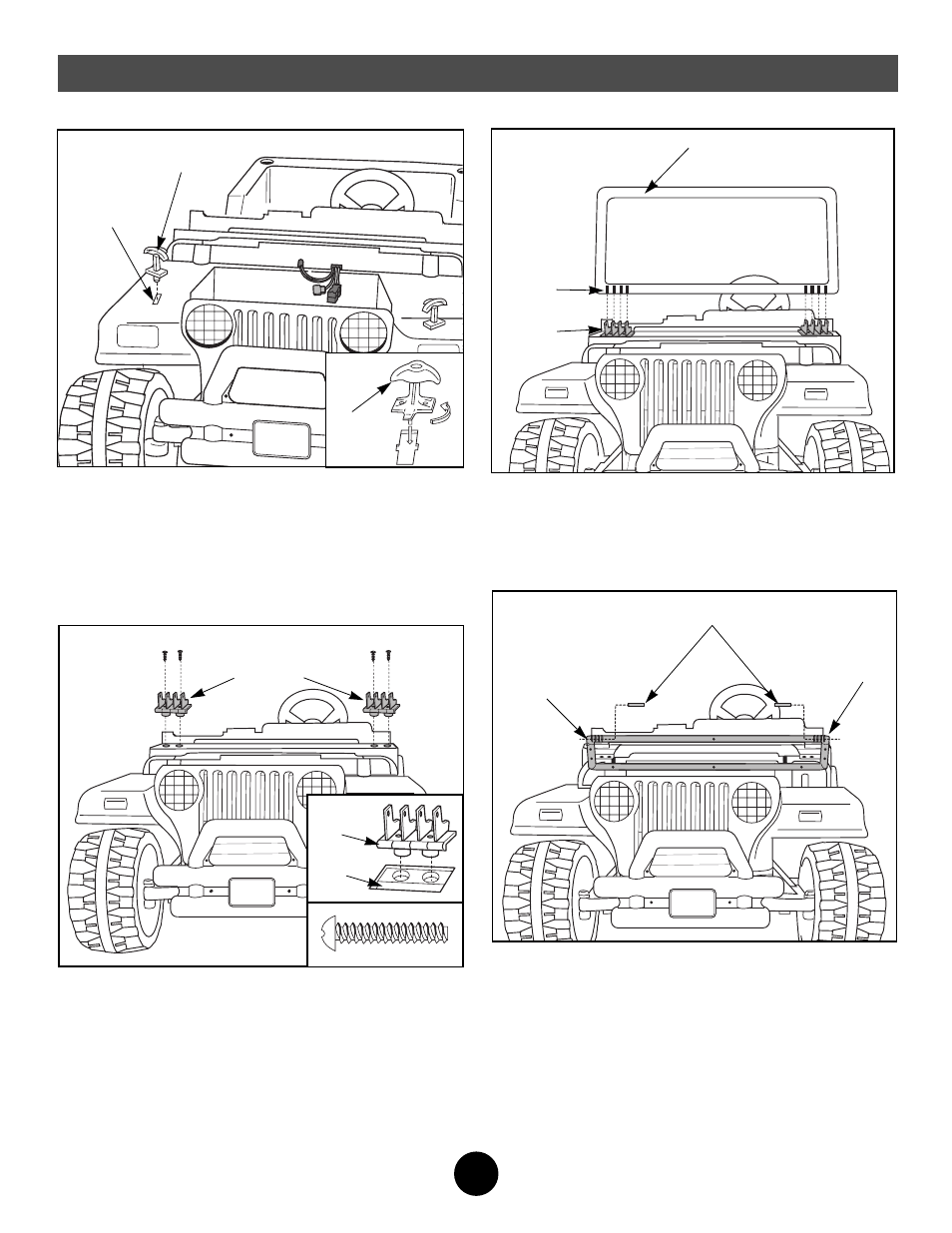

• Fit the screw pegs on the windshield brackets into the
holes in the top surface of the dash. Press firmly to fit the
lip on each windshield bracket into the slot in the top of
the dash.
• Insert two #8 x 1" screws into each windshield bracket.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Windshield
Brackets
17
• Align the slots in the front half of the windshield frame with
the tabs on the windshield brackets.
• Fit the front half of the windshield frame onto the
windshield brackets as shown.
Slots
Windshield Frame -
Front Half
Tabs
18
Lip of
Bracket
Slot
• Insert a hood latch into one of the holes in the vehicle
body, near the hood area.
• Twist the base of the hood latch 1 /
4
turn to secure it in the
vehicle body.
• Repeat this procedure on the other side of the hood area
to attach the other hood latch to the vehicle body.
Hood Latch
Hole
16
Hood
Latch
19
Windshield Frame -
Front Half
Hinge Pin
Windshield
Bracket
• Rotate the front half of the windshield frame down so it
lays flat on the vehicle body.
• Working from the center of the vehicle, insert a hinge pin
through the holes in the windshield frame and the holes
in a windshield bracket, as shown.
• Repeat this procedure to secure the front half of the
windshield frame to the other windshield bracket.
