SECTION B: ASSEMBLE THE BASE

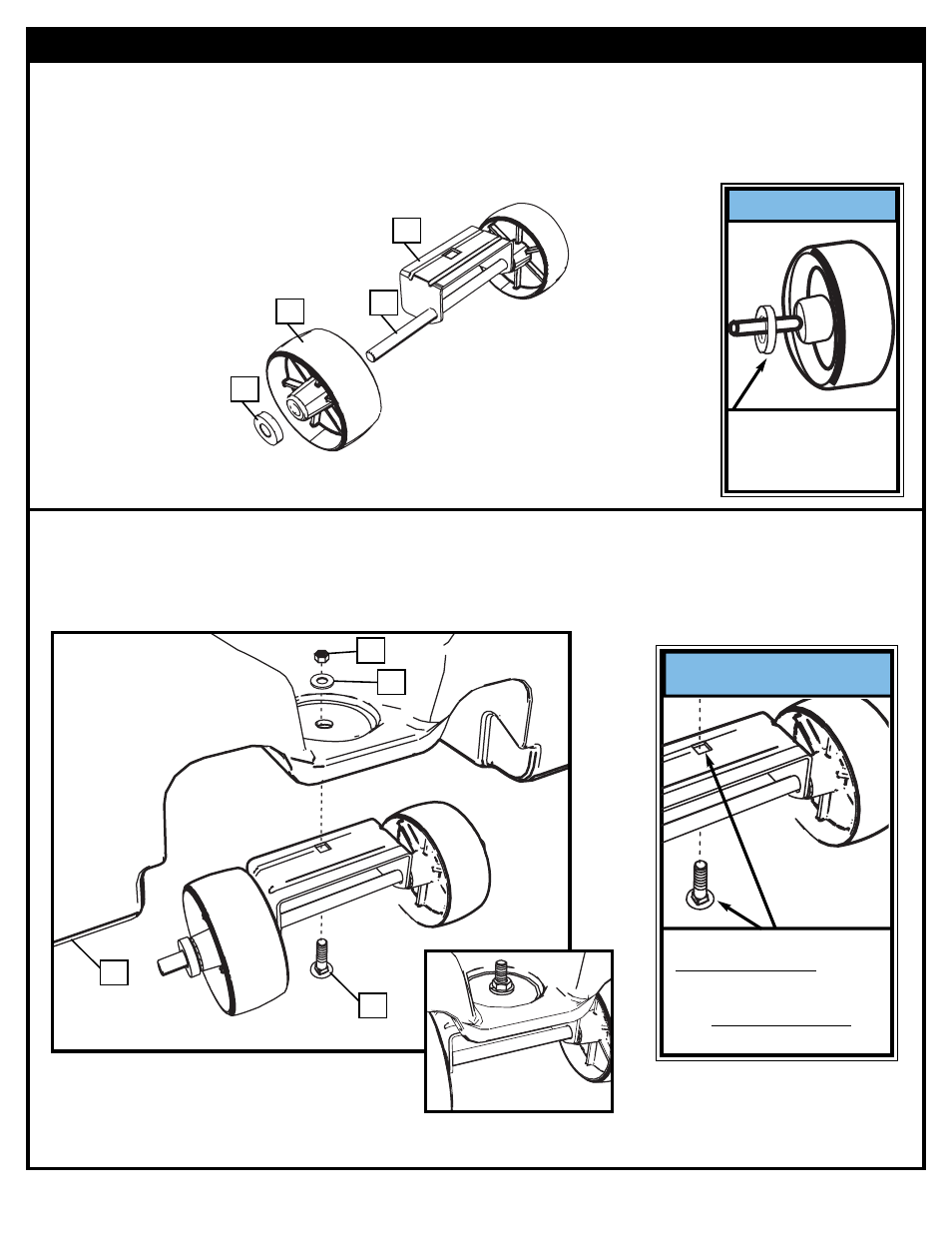

Install wheel axle (2) through wheel bracket (9) and install wheels (3) onto
wheel axle (2) with spacers (10) as shown.
Attach wheel carriage assembly to base (1) with bolt (13), washer (22), and nut (7)
as shown. FINGER TIGHTEN - NO TOOLS REQUIRED. Assembly will be fully
tightened in next step.
3.
4.
9
2
3
10
THE SPACER (10) WILL
FIT LOOSELY UNTIL
SECURED INTO THE
CAVITY OF THE BASE.
IMPORTANT!:
BE SURE THAT THE
SQUARE PORTION OF THE
CARRIAGE BOLT (13) IS
PROPERLY SEATED IN
THE SQUARE CUT-OUT OF
THE WHEEL BRACKET.
IMPORTANT!:
1
13
7
22
