Hearth and Home Technologies Direct Vent Gas Fireplace Aveo - Manual (Page 3)

6.0 in.
(152 mm)
3 1/8 in.
(79 mm)
28 in. (711 mm)
33 in. (838 mm)
30 1/2 in.
(775 mm)
27 in.
(686 mm)
5 1/2 in.
(140 mm)
2 in.
(51 mm)
31 in.
(787 mm)
1 in.
(25mm)
11 1/2 in.
(292 mm)
11 1/2 in.
(292 mm)
6 3/8 in.
(162 mm)
22 3/8 in.
(568 mm)
Rear Vent Top Top Vent Top
Rear Vent Back

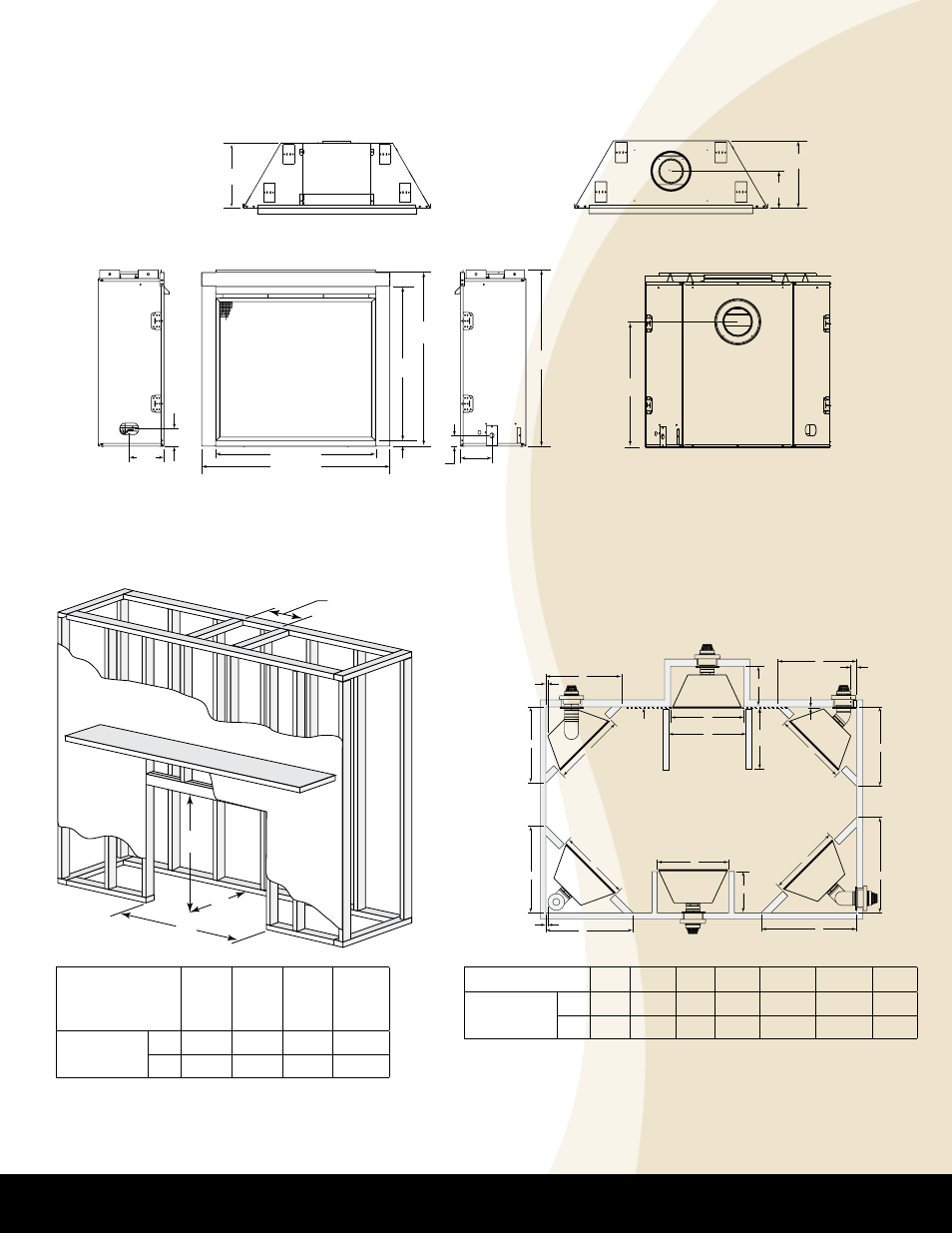

Product Dimensions
Dependability Most Recognized Brand Dependability Most Recognized Brand
D
C
A
B
Product Framing Dimensions
Model
A
Rough
Opening
Width
B
Rough
Opening
Height
C
Rough
Opening
Depth
D
Rough
Opening
DVP Pipe
ADVT3428
ADVR3428
in. 34 31-1/4 12 10
mm 864 794 305 254
Rear vent
One 45° elbow
Horiz Term
Rear Vent
Two 90° elbows
Horiz Term
Rear Vent
One 90° elbow
Vert Term
Top Vent
One 90° elbow
Horiz Term
No elbows
Horiz Term
A A
A
A
A
A
C
B
B
E
F
D
1/2 in. (13 mm) min.
appliance to
combustibles
D
F
1 in. (25 mm)
min. pipe to
combustibles
E
1/2 in. (13 mm)
min. appliance
to combustibles
Alcove
Installation
C
1 in. (25 mm)
min. pipe to
combustibles
G
Drywall
48 in.
(1219 mm)
maximum
Appliance Location
Model A B C D E F G
ADVT3428
ADVR3428
in. 33 31-1/4 12 34 36-5/8 44-3/4 35
mm 838 794 305 864 930 1137 889
