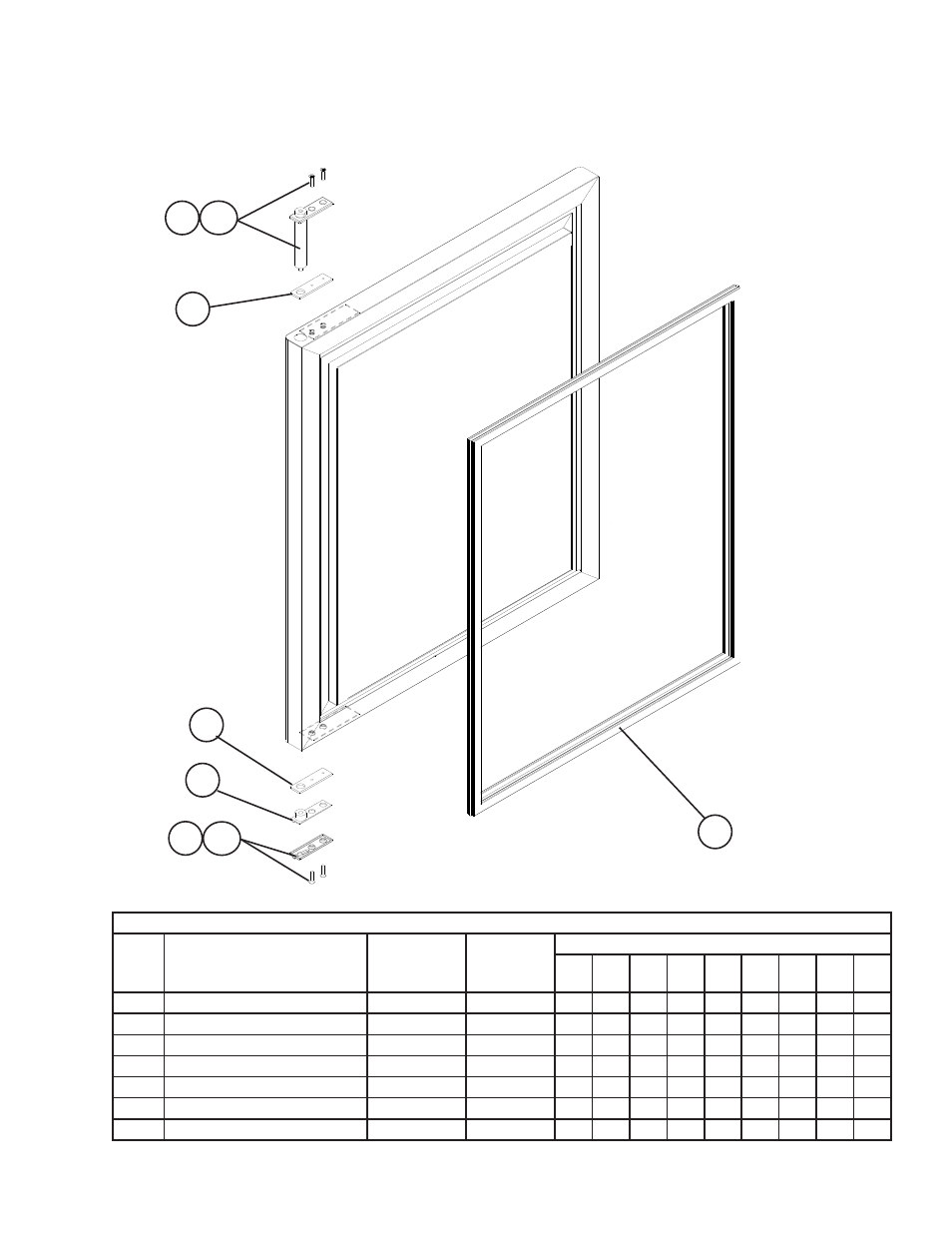

P. Door Sub-Assembly
PTR1SSB-HGHS (HS, LR), PTR1SSB-HSHS (LR)
R-5, S-5
5
1
2a 2
4
1
3 3a
Title: P. Door Sub-Assembly Model: PTR1SSB-HGHS (HS, LR), PTR1SSB-HSHS (LR)
Index
No. Description
Material or
Model Number Part Number
Required Number
R-5
S-5
1 Foam Pad - 4A57-01
Hinge-Spring Cartridge (R) - 4A0438-01 1
a Screw-Countersunk 5×0, SS 7C4-050
3 Hinge-Bottom Plate Male (R) - 4A0440-01 1
3a Screw-Countersunk 5×0, SS 7C4-050
4 Hinge-Bottom Bushing (R) - 4A0439-01 1
5 Gasket-Door (Half) - 3A073-0 1
