Introduction
EN-5 Haier LED HDTV

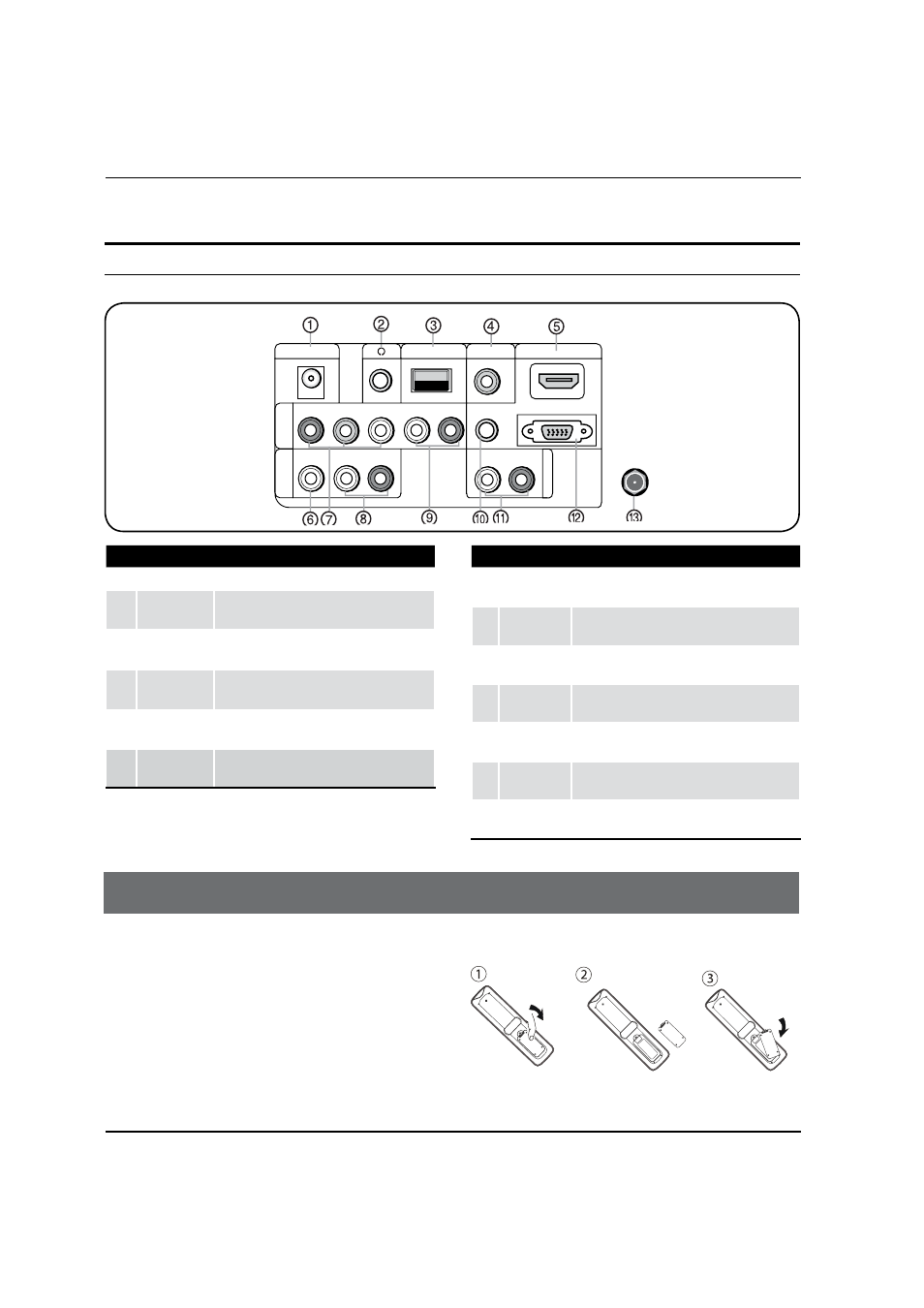

Connection Options
Back panel connections
DC IN
VIDEO
A
V
IN
COMPONENT
IN
Y Pb Pr
USB
PC/DVI AUDIO IN
AUDIO OUT
PC IN L -AUDIO- R
L R L -AUDIO- R
HDMI IN
ANT IN
DIGITAL OUT
(COAXIAL)
1 DC IN Direct current input.
2
Headphone
jack
Headphone audio output terminal.
3 USB input
Connect a USB flash drive to view MPEG2 videos,
JPEG images or listen to MP3 songs.
4 Digital Out
Connect various types of digital audio
equipment.
5 HDMI In
Connect a HDMI device to receive digital audio
and uncompressed digital video.
6 VIDEO In
Connect the video signal from a video device to
this jack.
7
Component
Input
Connect a component video device to these jacks.
8 AUDIO In
Connect the audio L/R cables from the video signal
source to these jacks.
9 AUDIO In
Connect the audio L/R cables from the video signal
source to these jacks.
0 PC Audio In
Connect the audio L/R cables from a computer to
this jack.
A AUDIO OUT
Connect the audio L/R cables to your audio
equipment.
B PC Video In
Connect a video cable from a computer to this
jack.
C
Antenna
Input Connect cable or antenna signals to the TV, either
directly or through your cable box.
Remote Control
Battery loading
1. Slide open the cover of the battery compartment on
the back of the remote controller.
2. Load two (AAA) alkaline batteries in the compartment,
(plus and minus poles to respective mark)
3. Replace the cover of the battery compartment.
