F Fiin niissh h R Ro ou uttiin ng g tth he e C Ca ab blle e a an nd d C Ch he ec ck k O Op pe erra attiio on n
Follow these steps to finish routing the AS WX 1 Satellite Weather Receiver
cable between the control head and the receiver:
1. Secure the cable along its path to the control head as needed, using
cable ties.

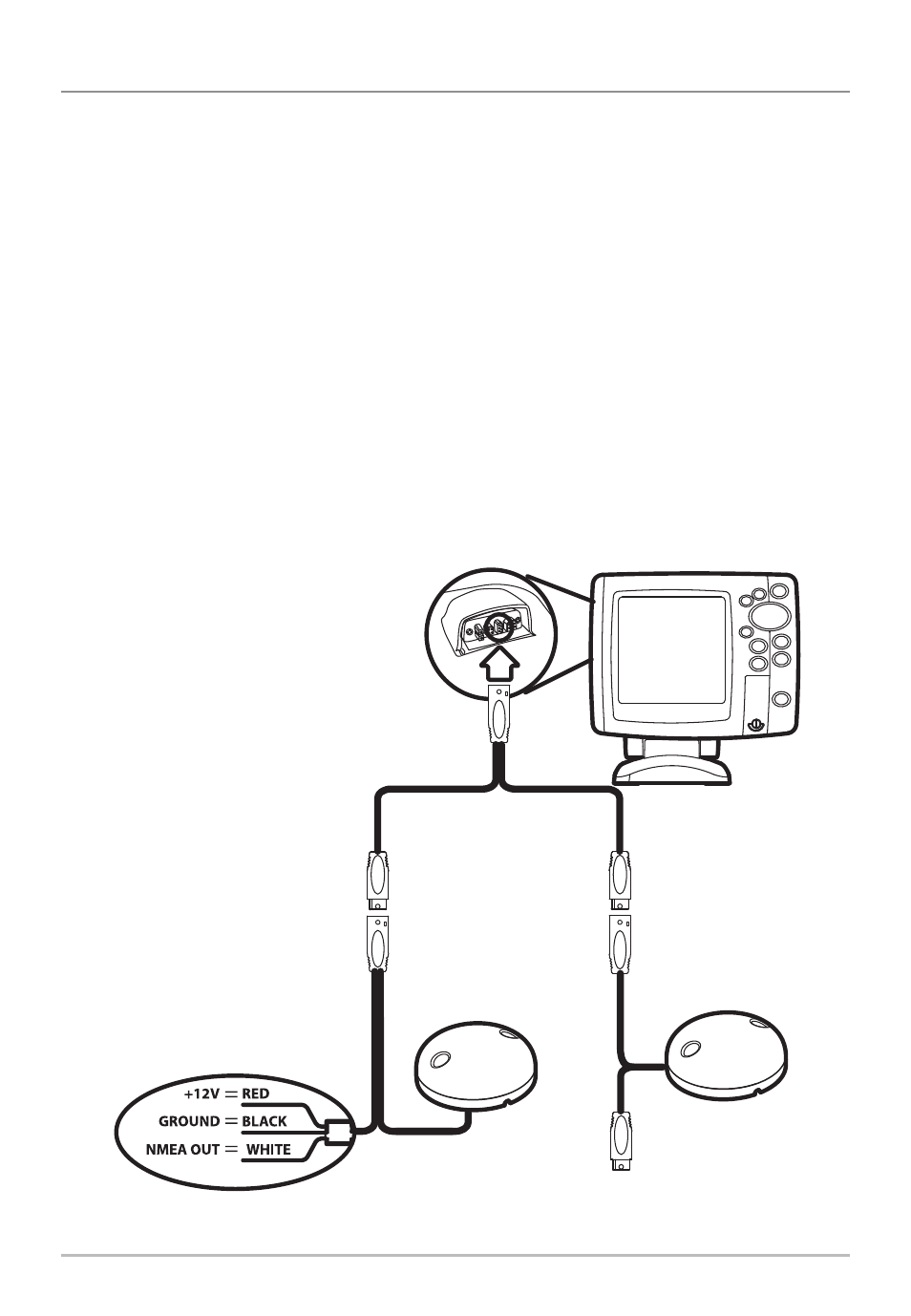

2. Insert a Y-cable’s COM connector into the appropriate terminal slot
on the back of the Humminbird® control head. Connnect the GPS
cable to the NMEA-COM connector, and attach the AS WX 1 cable to
the ACCY-COM connector.
NOTE: The slots are keyed to prevent reversed installation, so be careful not to
force the connector into the slot.
Fishing System
C
O
M
N
M
E
A
-C
O
M
A
C
C
Y
-C
O
M
C
O
M
A
C C
Y
-C
O
M
A
C
C
Y
-C
O
M
AS-YC ("Y") Cable
GPS Receiver
AS WX 1
10 Installation
