35
S
CANNER AND
C
ABLE
T
ERMINATIONS

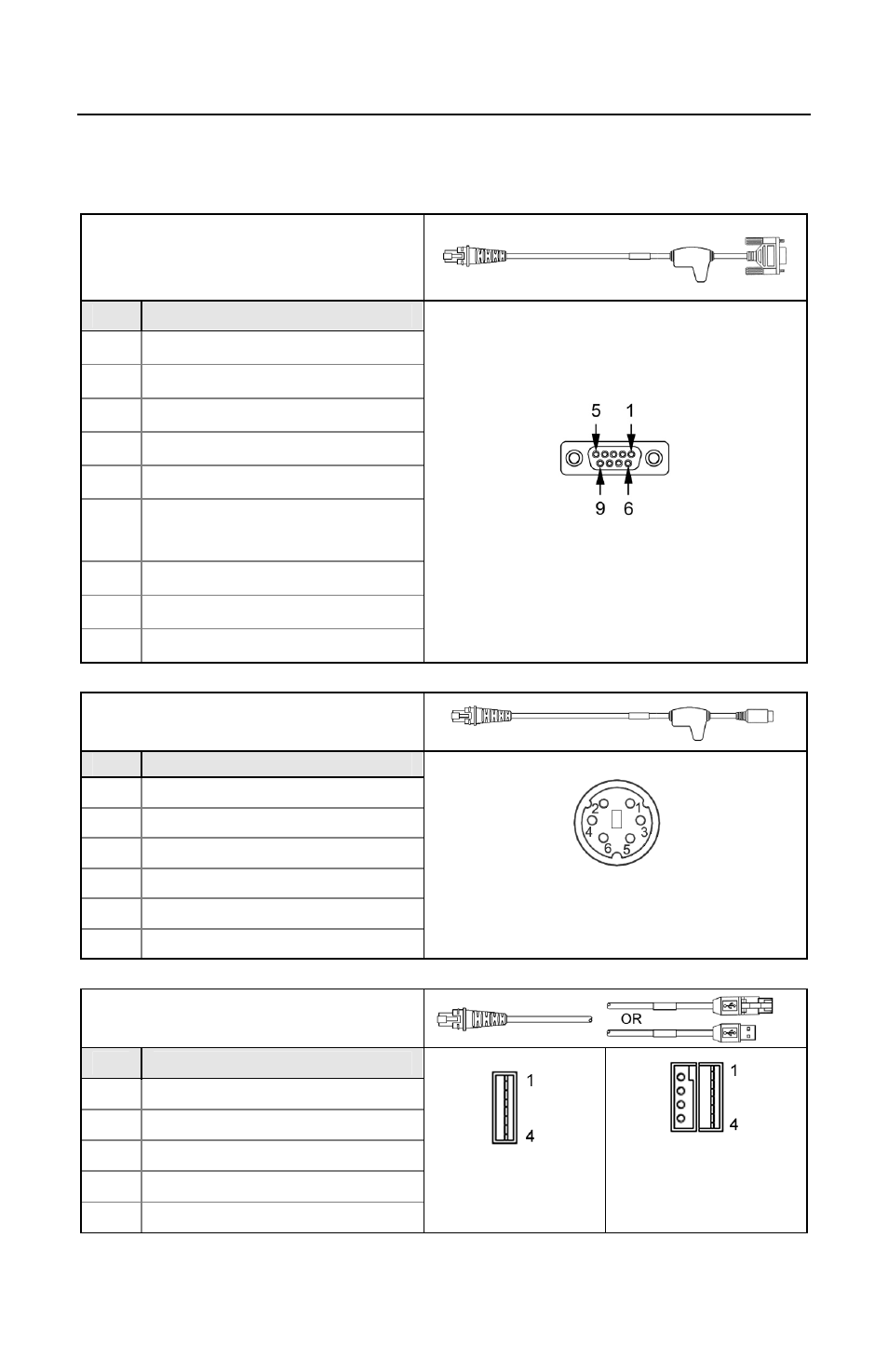

Cable Connector Configurations
RS232 PowerLink Cable,
55-55000
x
-3
Pin Function
1 Shield Ground
2 RS232 Transmit Output
3 RS232 Receive Input
4 DTR Input/Light Pen Source
5 Power/Signal Ground
6
Light Pen Data
(DSR Out for -14 interfaces)
7 CTS Input
8 RTS Output
9 +5VDC
9-Pin D-Type Connector
Stand Alone Keyboard
PowerLink Cable, 55-55020x-3
Pin Function
1 PC Data
2 NC
3 Power
Ground
4 +5VDC PC Power to KB
5 PC Clock
6 NC
6-Pin Male Mini-DIN Connector
USB Communication
55-55235
x
-N-3 or 55-55200
x
-N-3
Pin Function
1 PC +5V/V_USB
2 D-
3 D+
4 Ground
Shield Shield
Non-Locking, Type A
MLPN 54-54214
x
-N-3
Locking, Type A
MLPN 54-54213 x -N-3 or
MLPN 54-54214 x -N-3
