Honeywell Eclipse MS5100 Series User Manual
Page 38
34
S
CANNER AND
C
ABLE
T
ERMINATIONS

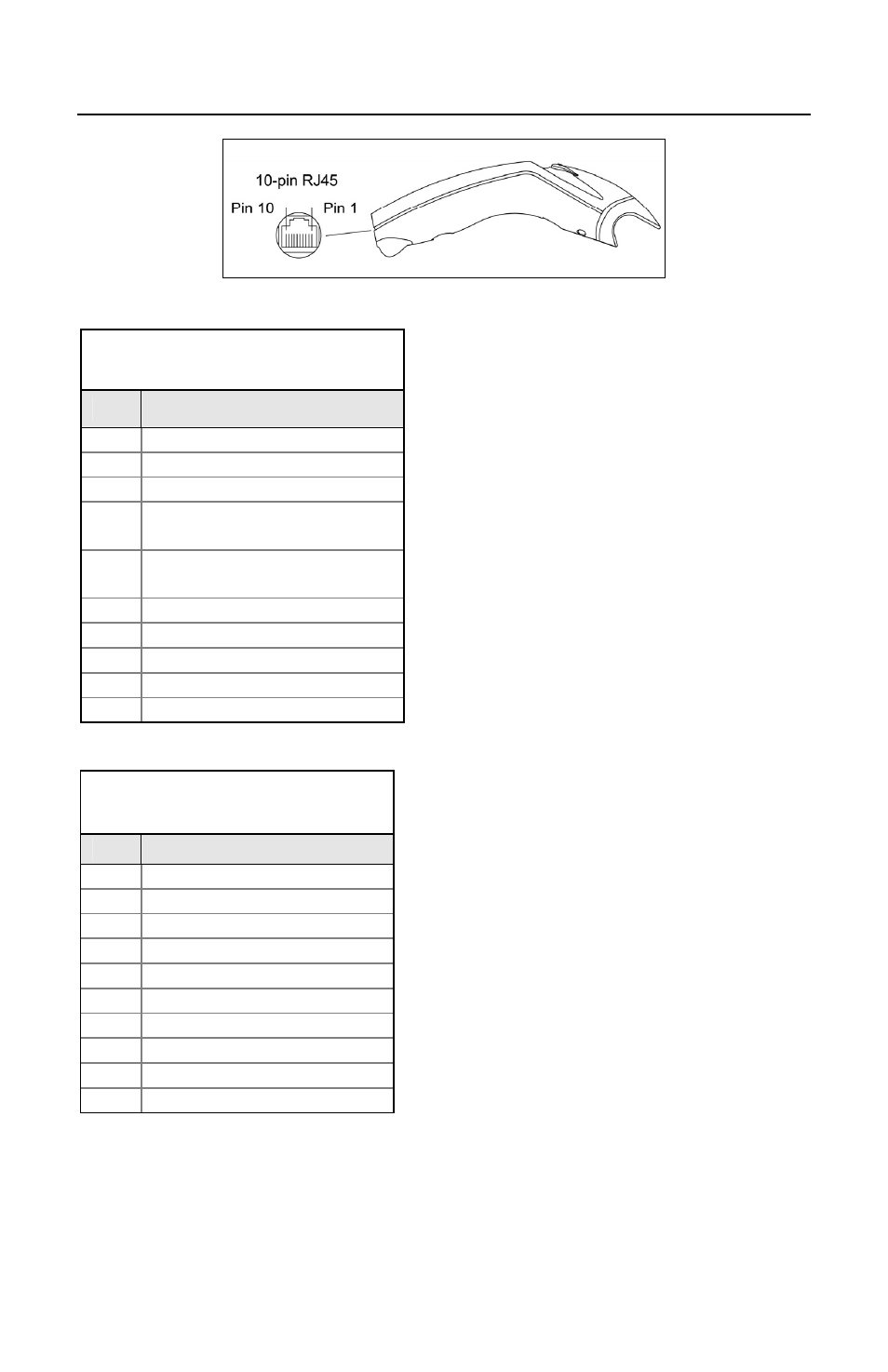

Figure 16.
MS5145-00 Laser Emulation
Pin
Function
1 Ground
2
RS232 Transmit Output
3
RS232 Receive Input
4
Flip Sense/Start of Scan
Output
5
Proximity Detect/
Trigger Emulation Output
6
Scan/Laser Enable Input
7 Reserved
8 Data
Out
9 +5VDC
10 Shield
Ground
MS5145 Full Speed (-40) and
Low Speed (-38) USB
Pin
Function
1 Ground
2 N/C
3 N/C
4 N/C
5 N/C
6 D+
7 PC
+5V/V_USB
8 D-
9 N/C
10 Drain
Wire
