C-TMLOCK-INST-2-03
INSTALL INSTRUCTIONS

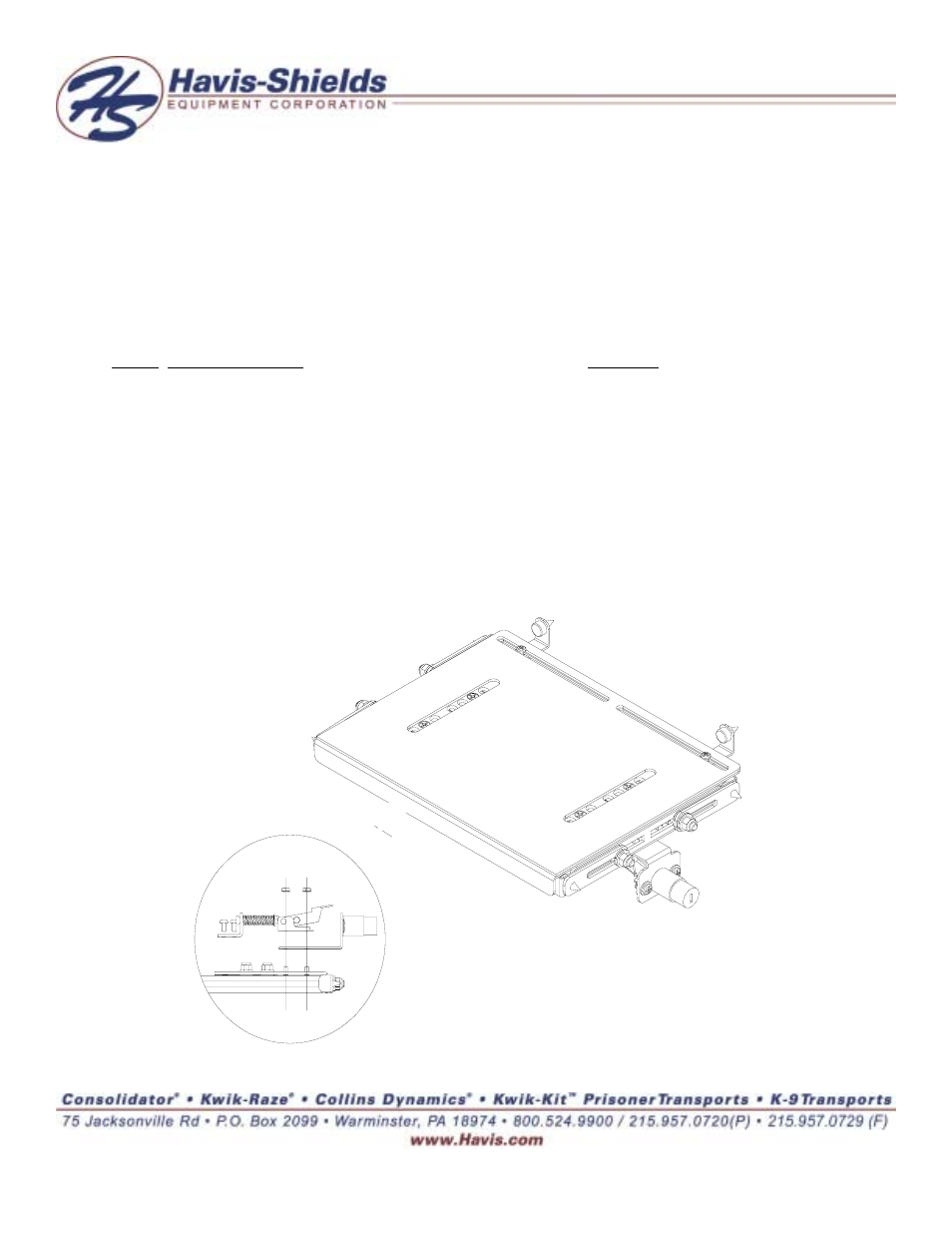

LOCK FOR LAPTOP COMPUTER
C-3090 & C-3490 APPLICATION C-TMLOCK
TOOLS REQUIRED:
11/32” Socket head w/ratchet
HARDWARE:
QTY: DESCRIPTION: PART
#:
2 8-32 keps nut zinc plated GSM30027
2 8-32 X 1/2" Pem stud zinc plated GSM32201
INSTALLATION:
1. Remove 8-32 keps nuts that hold down OEM latch on laptop computer mount.
2. Remove Pem studs from laptop computer mount and replace with Pem studs included with C-
TMLOCK assembly.
3. Move latch out of way and place C-TMLOCK over Pem studs. Place latch over top of
C-TMLOCK.
4. Install keps nuts and tighten.
