Heat & Glo • Escape-42DV • 2052-900 Rev. R • 10/08 38

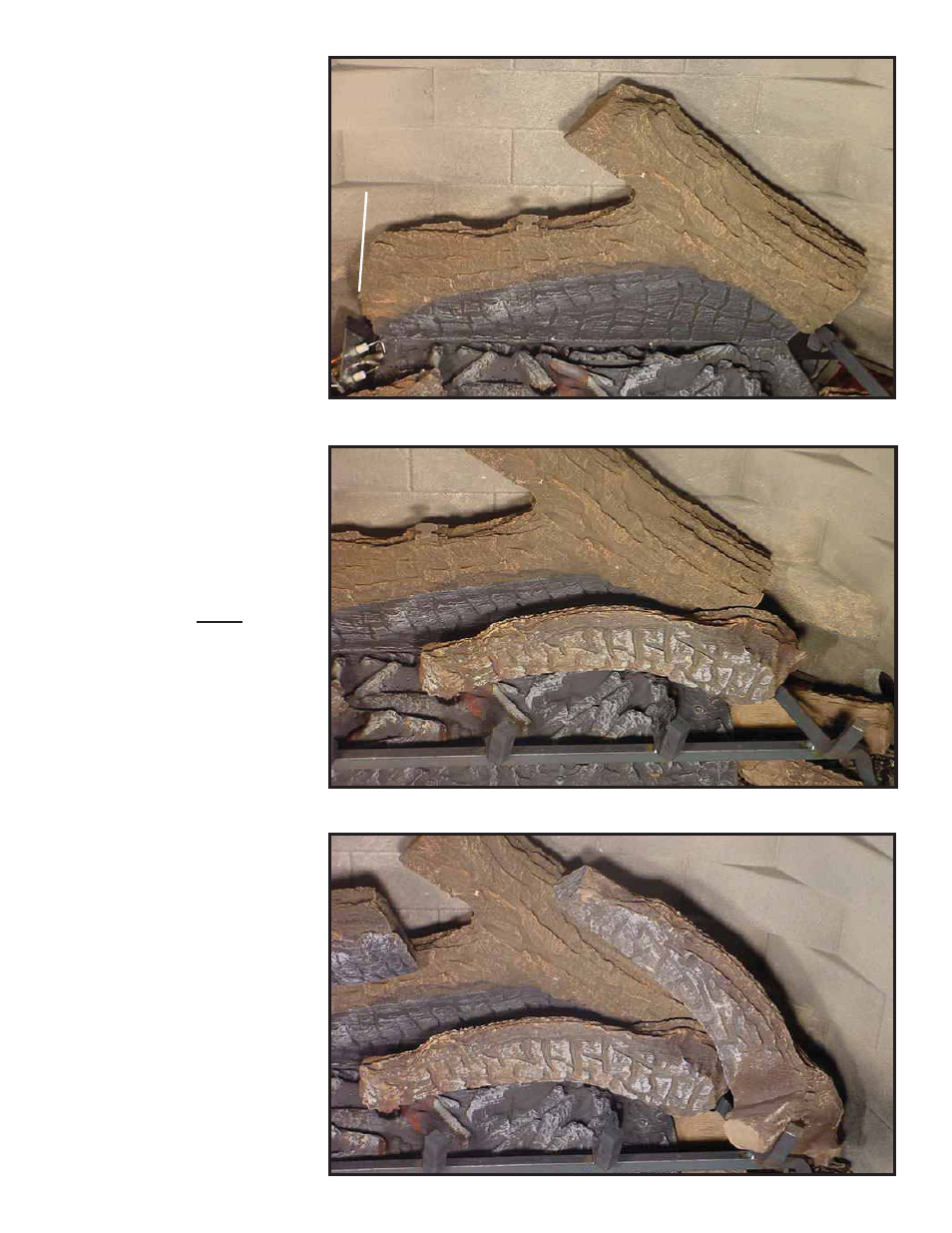

LOG #4
(SRV2012-162):
Place log #4 on top of the burner in
front of log 3. The triangle shaped
groove in the bottom fi ts onto the
right grate tine. The right side is
pushed back until it touches the
back log. The left end of the log is
moved back until it almost covers
the burner ports behind it. Do NOT
cover the burner ports.
LOG #5
(SRV2012-163):
Place log #5 in front of log #4. The
groove in the bottom end of the log
fi ts into the right vertical grate tine.
The back of the log rests in the
small fl at spot on top of log #3.
LOG #3
(SRV2052-701):
Place log #3 onto the back of the
burner. The log sits on top of the
burner surface. The back of the log
is pushed up against the back metal
wall of the burner and the left end
of the log is fl ush with the left edge
of the metal wall.
FLUSH END
3 3
4 4
5 5
3 3
3 3
4 4
