Hunter Fan 28049 User Manual
Parts guide, Fan parts, Hardware

PARTS GUIDE
PARTS GUIDE
Hunter Fan Company • 7130 Goodlett Farms Pkwy. #400 • Memphis, TN 38016 • www.hunterfan.com • 98000-01-760 10-01-2009 •
©
2009
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
Parts List
Model #
28049
Asm. Dwg. #
97491-01
Finish
Cocoa
Item Name
Qnty
Part #
Hanging System Kit
1
94945-67
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Low Profile Washer
Screw, Low Profile
Mounting Isolator
Canopy Screw
Wood Screw 1.5”
Wood Screw 3”
Flat Washer
Setscrew
Blade Iron Set
1
92805-05
Blade Set
1
76238-02
Screw, Blade Iron Armature
11
63755-05
Switch Housing Assembly
1
98840-67
Light Kit Assembly
1
96942-02
Globe/Shade
1
87668-01
Light bulb / Bulb
2
77646-04
Cap, Switch Housing
1
73853-01
Plug Button
1
73854-01
Dummy Terminal, Male
1
08198-01
Dummy Terminal, Female
1
08200-01
Pull Chain
2
63756-15
Pull Chain
1
63756-18
Pull Chain Pendant
2
74393-08
Hardware Kit
1
97941-00-860
Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Screw, Switch Housing Assembly
Wire Connector
Balancing Kit
1
07570-01

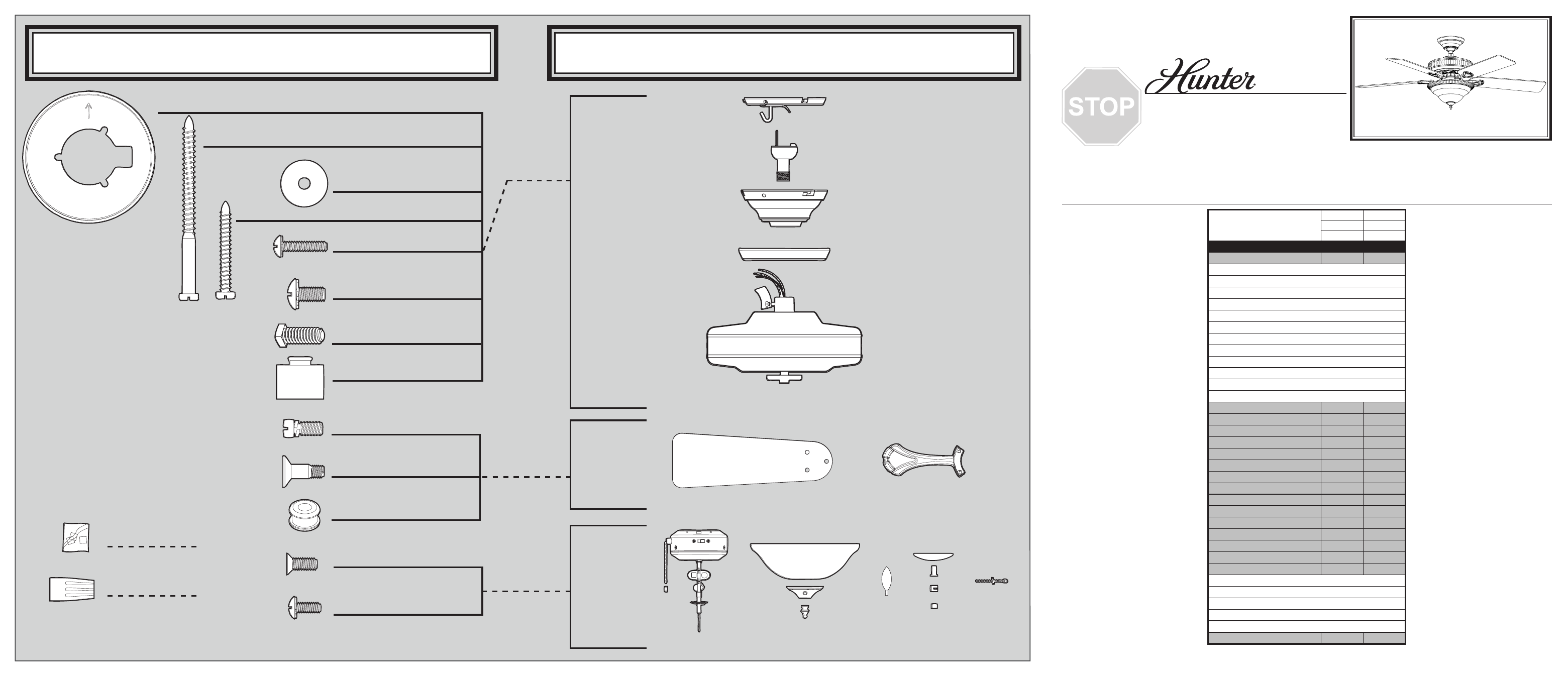

Fan Parts
(Not Drawn to Scale)
Hardware
(Drawn to Scale)
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Screw, Low
Profile
Setscrew
Mounting Isolator
Screw, Blade
Iron Armature
Canopy Screw
Flat Washer
Screw, Blade
Assembly
3” Wood Screw
Low Profile
Washer
Balancing
Kit
Wire
Connector
1.5” Wood Screw
Blade
Grommet
x 1
x 2
x 4
x 2
x 3
x 4
x 1
x 11
x 4
x 16
x 3
x 3
x 1
x 4
x 16
