D. Condenser
Check the condenser once a year, and clean if required by following the steps below.
More frequent cleaning may be required depending on location.
WARNING
• Move the power switch to the "OFF" position and unplug the unit from the
electrical outlet before cleaning the condenser.
• To reduce the risk of electric shock, do not touch the power switch or plug with
damp hands.
• Condenser fins are sharp. Use care when cleaning.
1) Move the power switch to the "OFF" position and unplug the unit from the electrical
outlet.
2) Remove the 2 screws securing the front panel, then remove the panel. See Fig. 34.
3) Remove the 2 screws securing the louver, then remove the louver.
4) Use a brush attachment on a vacuum cleaner to gently clean the condenser fins. Do not
use too much force, otherwise the fins could be damaged.
5) Replace the louver and front panel in their correct positions. Ensure that the screws are
securely in place.
6) Plug the unit back in. Move the power switch to the "ON" position to start the automatic
icemaking process.
Front Panel
Louver

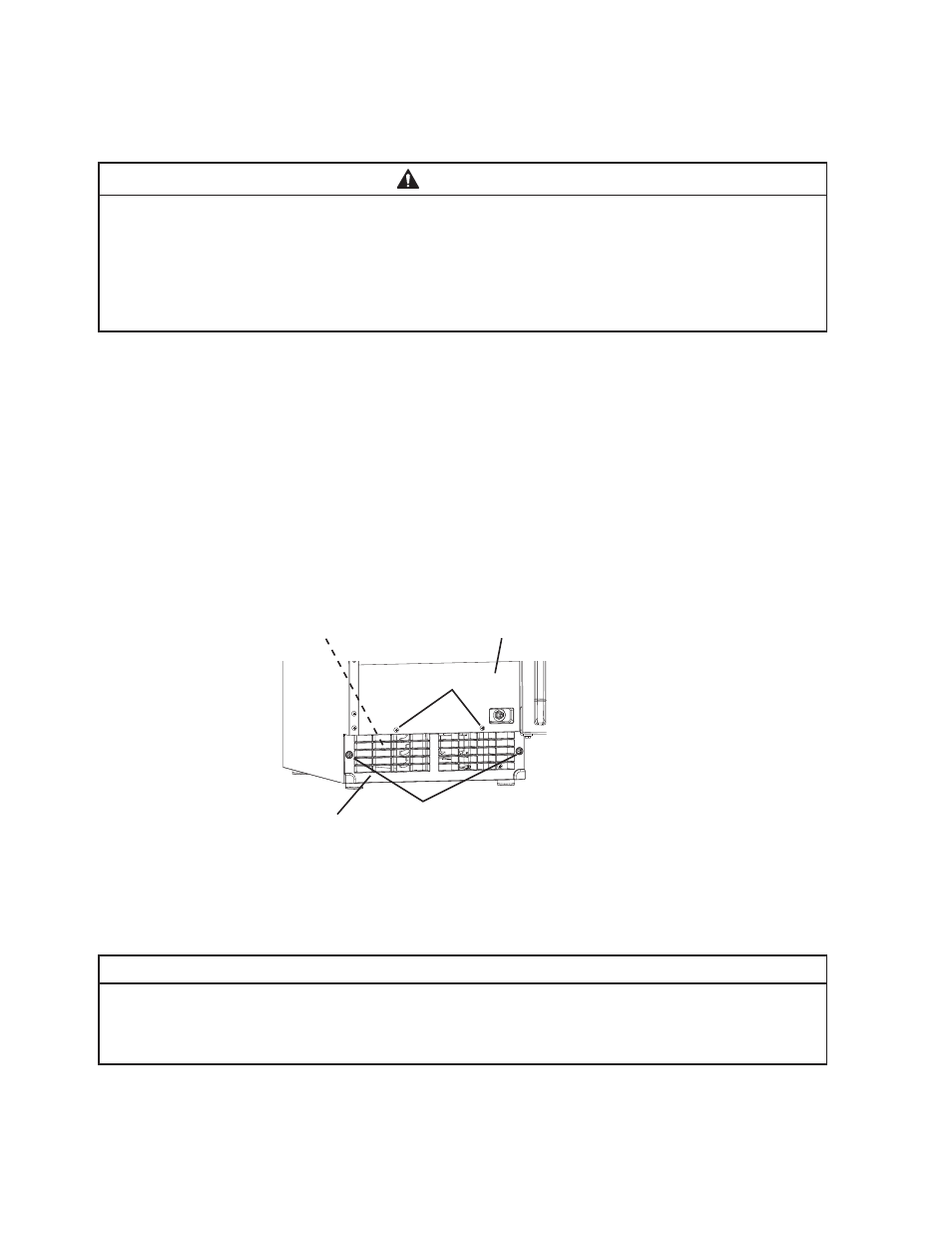

Fig. 34
Screws
Screws
Condenser
E. Optional Drain Pump HS-5061
If the optional drain pump (HS-5061) is installed, test its operation at least twice a year
as outlined below. Note that the pump has power even when the power switch is in the
"OFF" position.
NOTICE
If the optional drain pump is not operating properly, it will adversely affect
performance, component life, and warranty coverage and may result in costly water
damage.
1) Move the power switch to the "OFF" position, then unplug the unit from the electrical
outlet.
WARNING! To reduce the risk of electric shock, do not touch the power
switch or plug with damp hands.
